Description

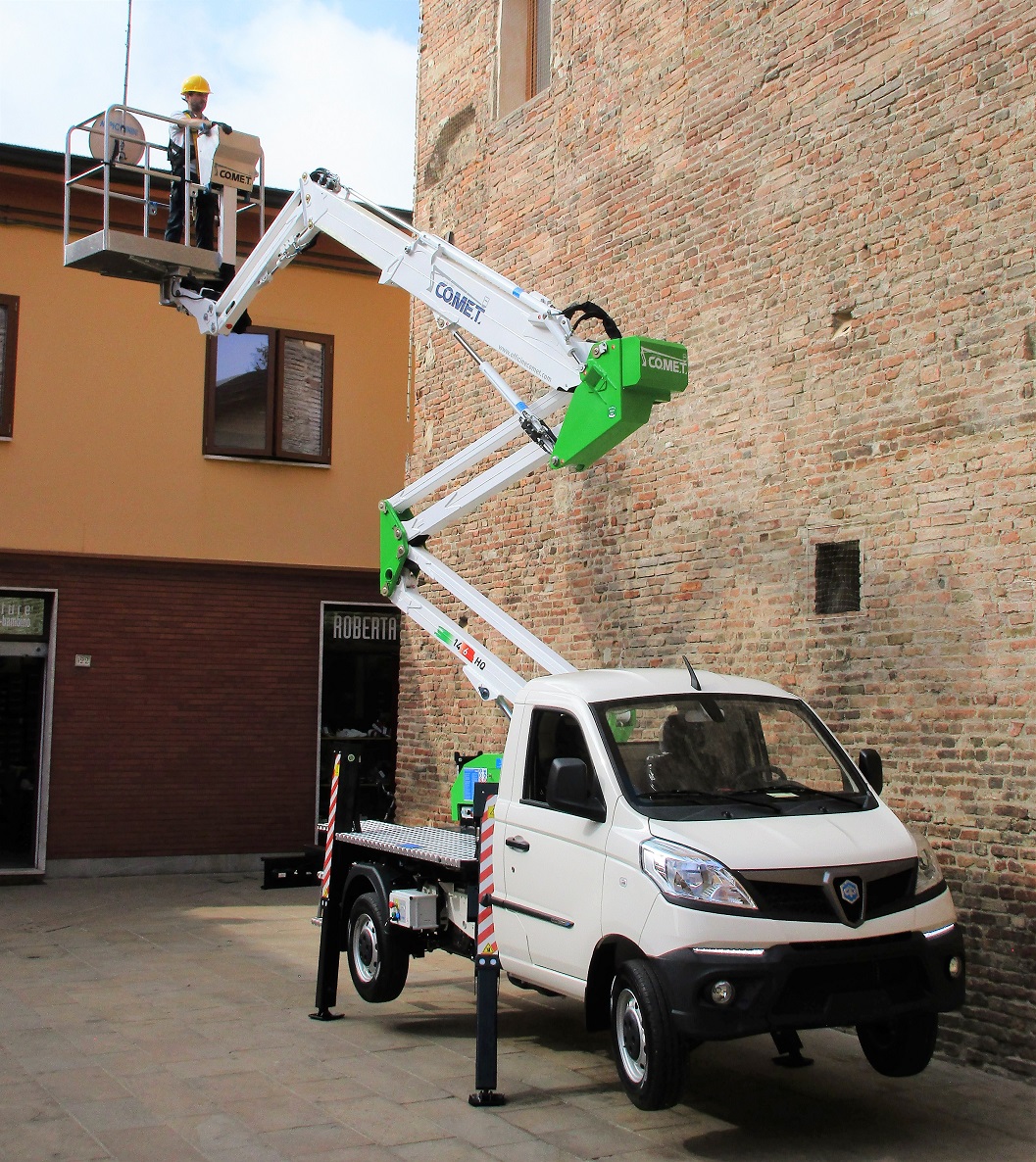

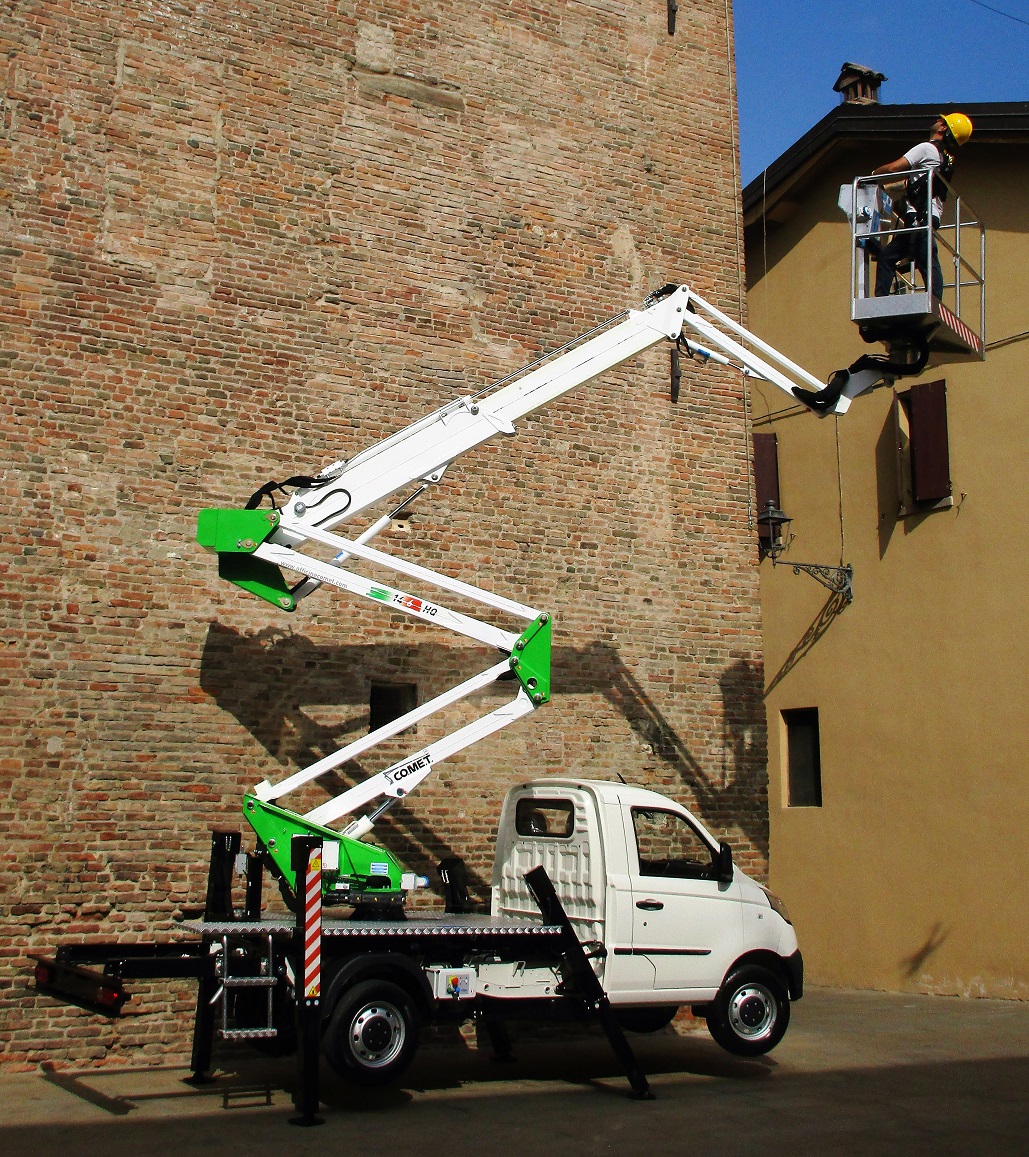

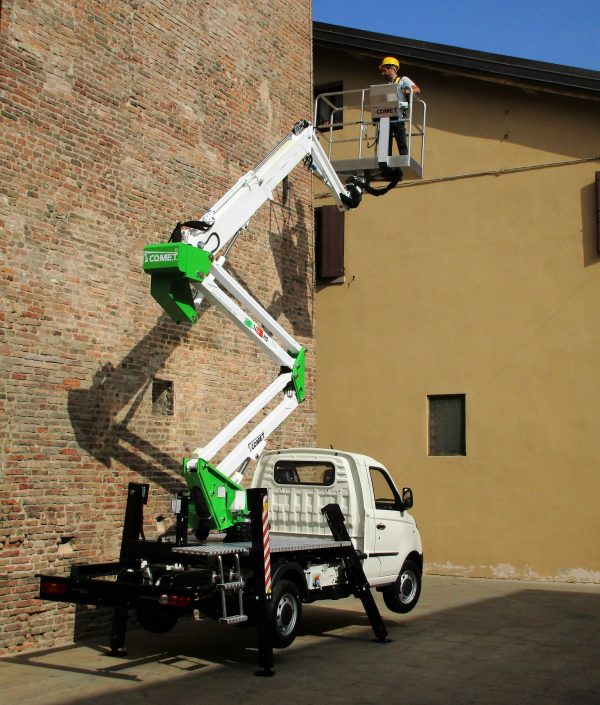

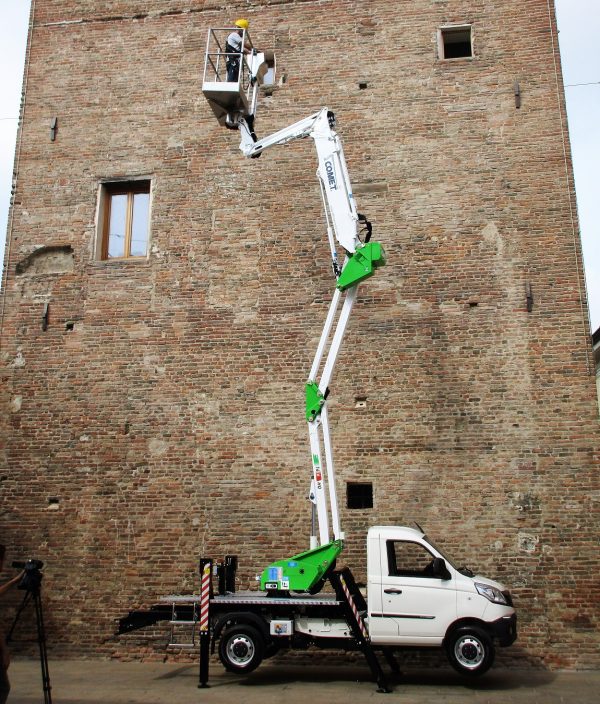

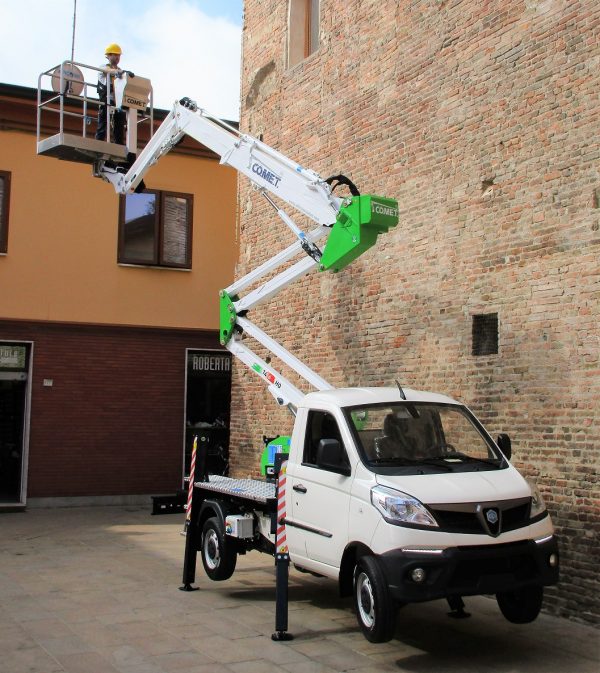

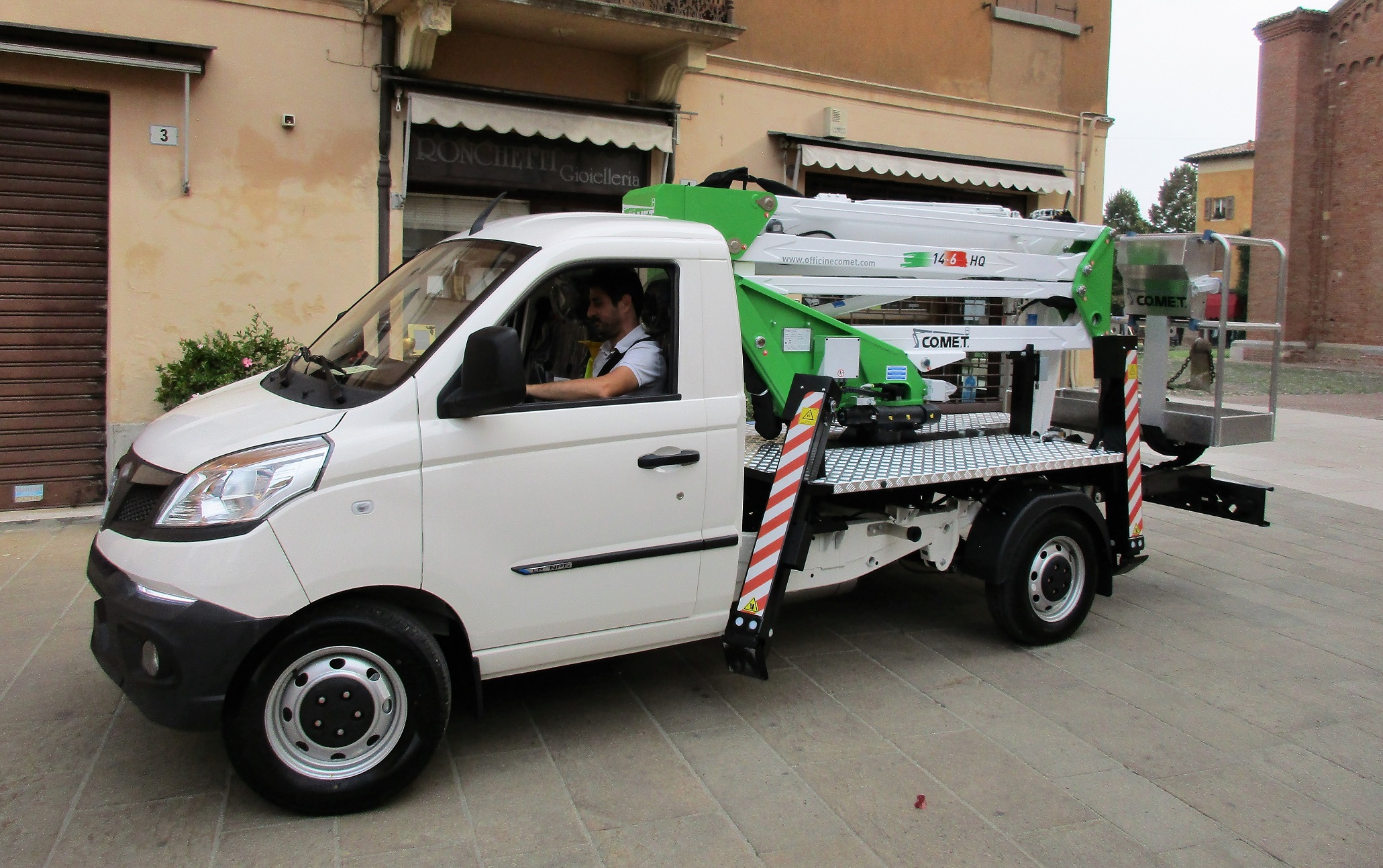

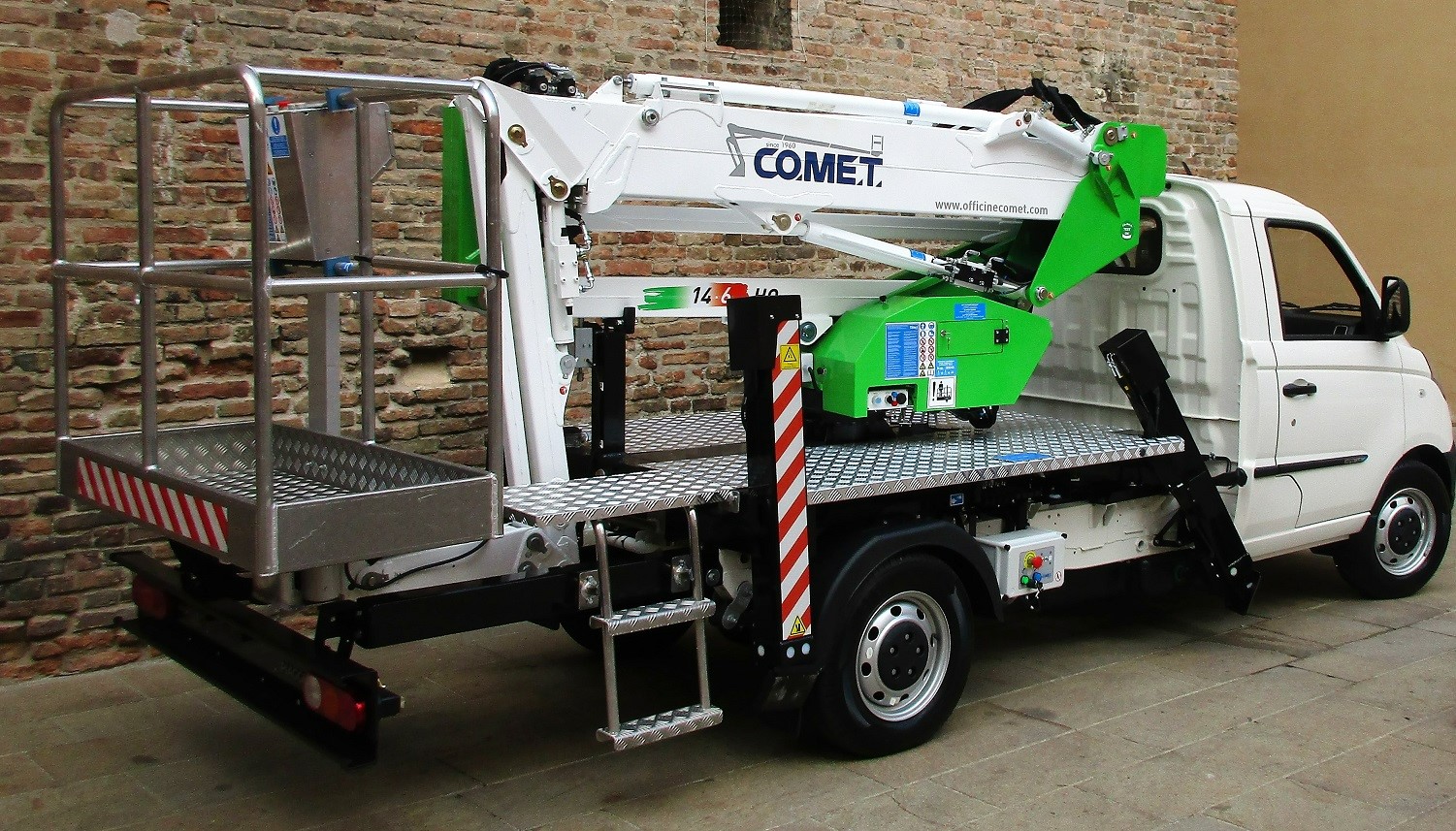

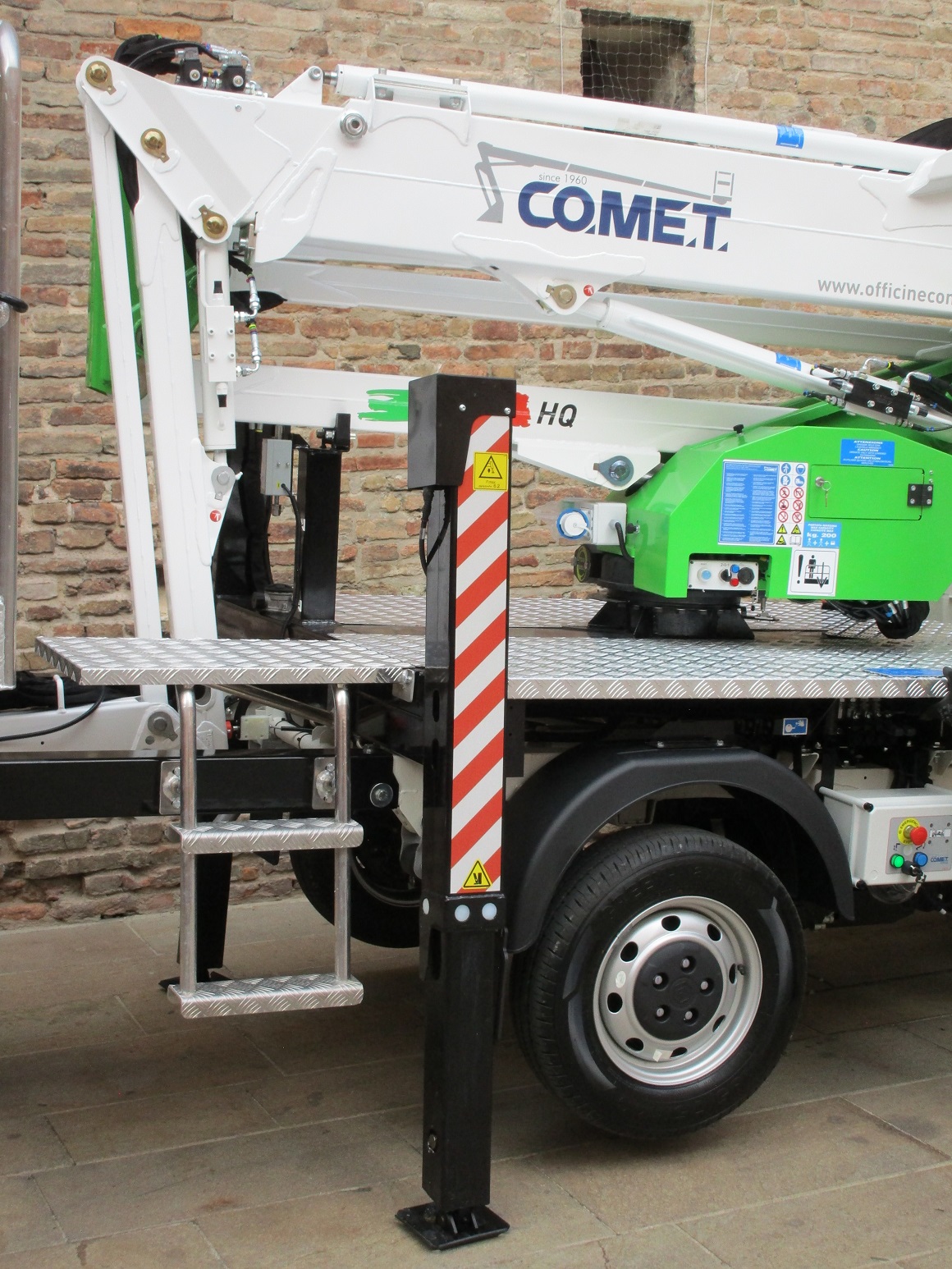

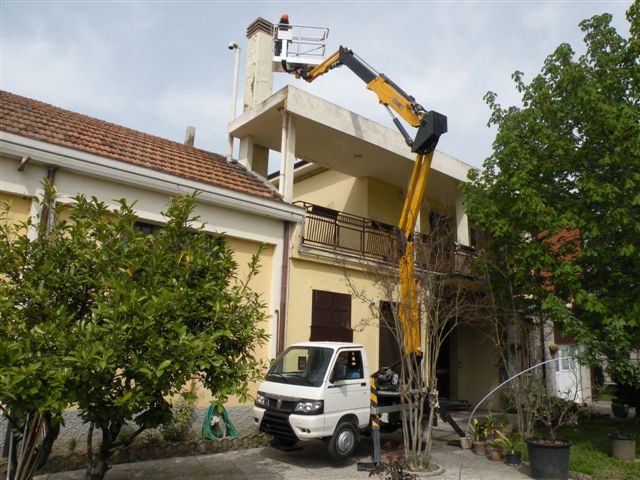

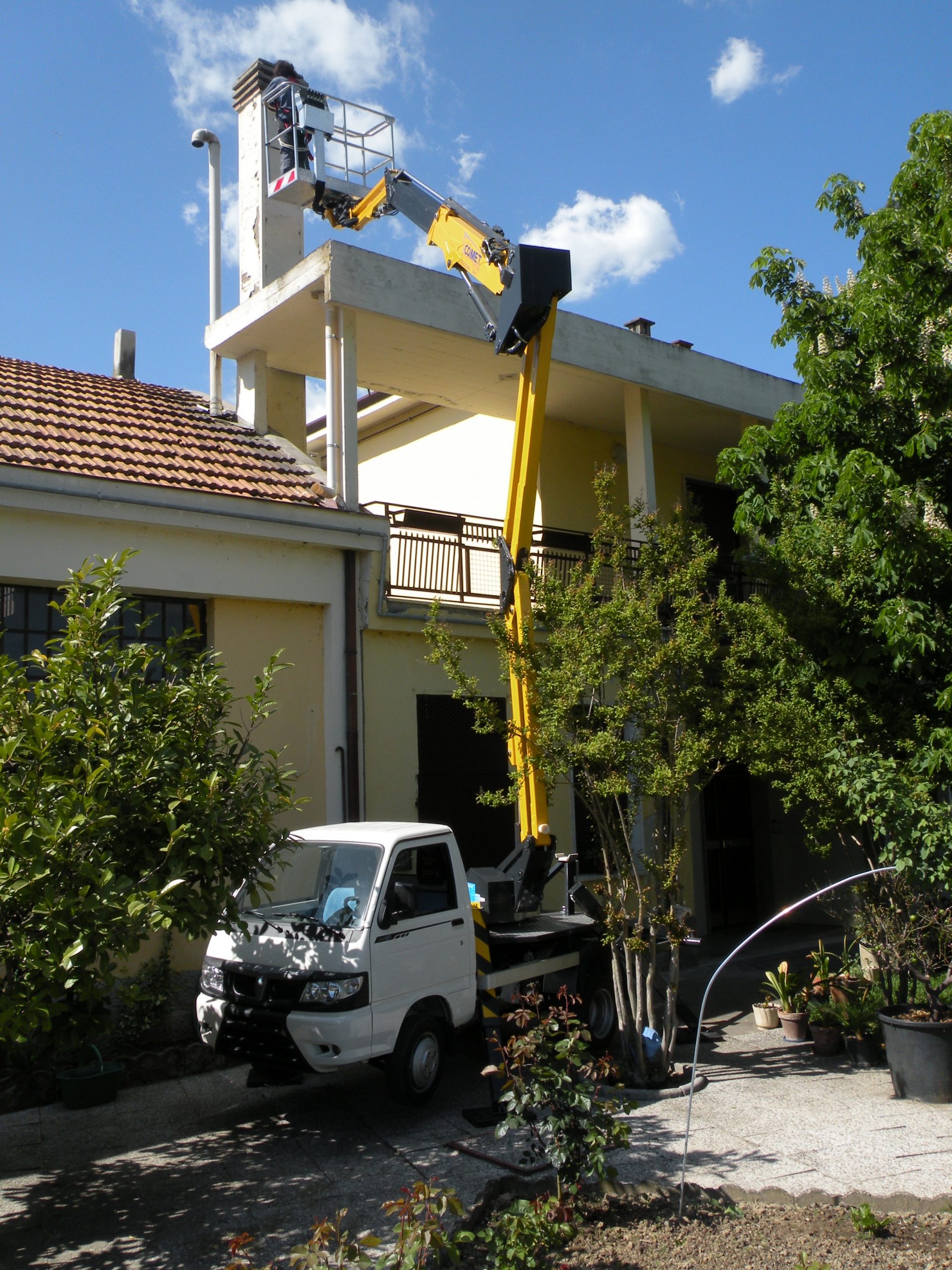

Working height mt.14; walking surface height mt.12; load capacity Kg.200 including 2 persons; max. outreach mt.6.00; max. reach kg.200; turret rotation: 360° continuous on slewing ring; total closed machine height mm 2050; 360° swiveling turret on slewing ring; double parallelogram articulated boom; JIB terminal articulated boom; electric cables, catenaries and pipes inside boom;

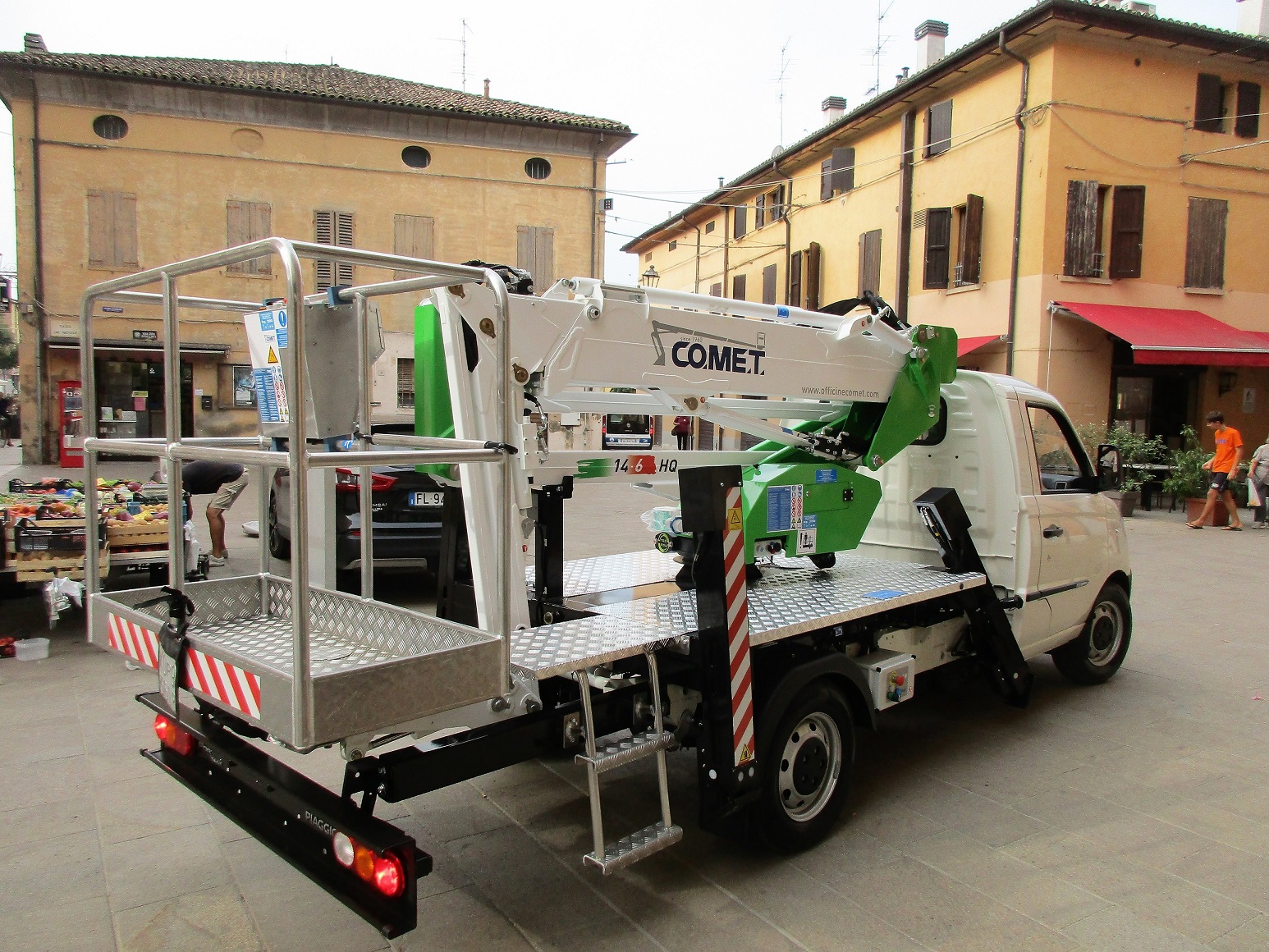

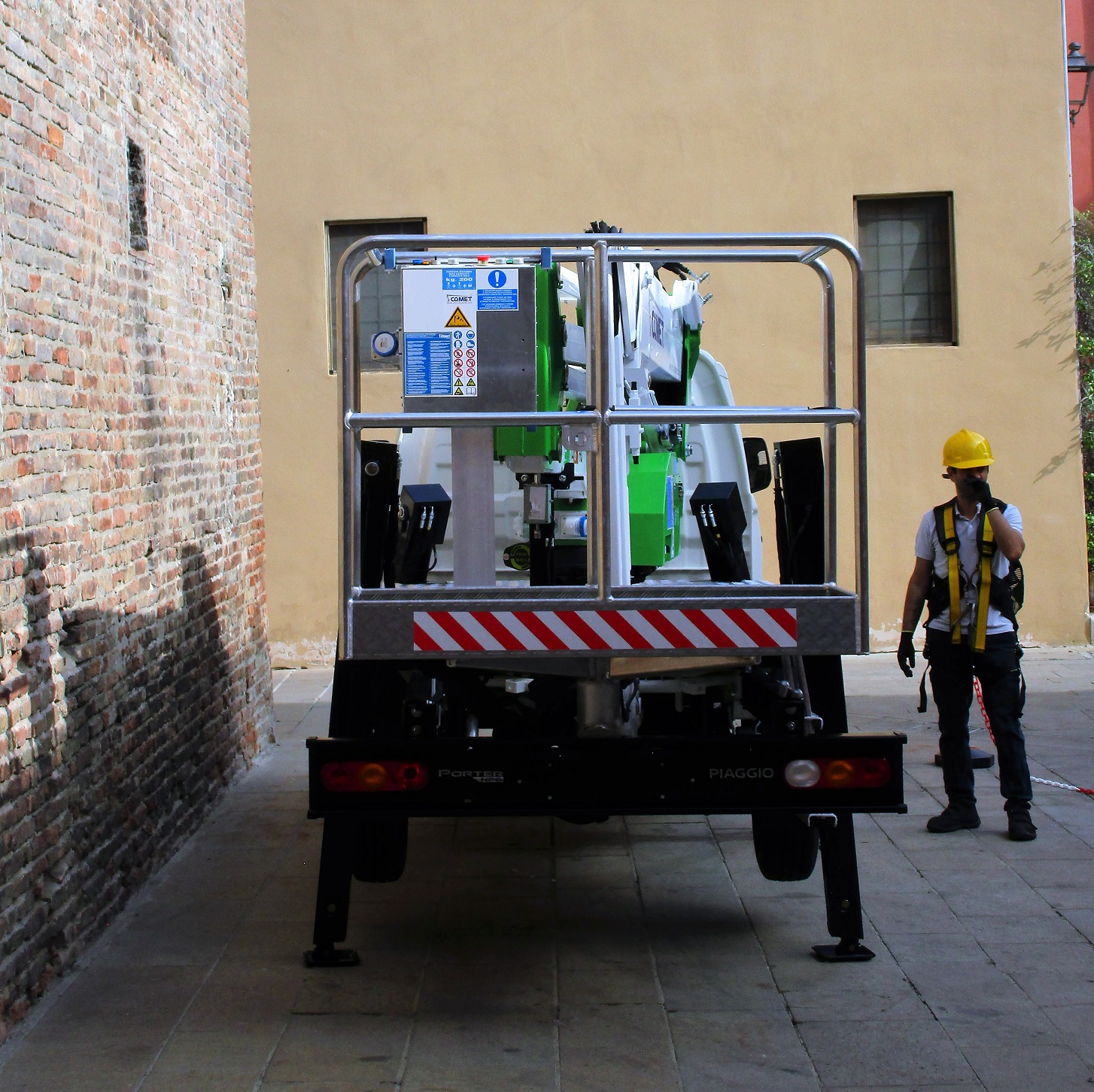

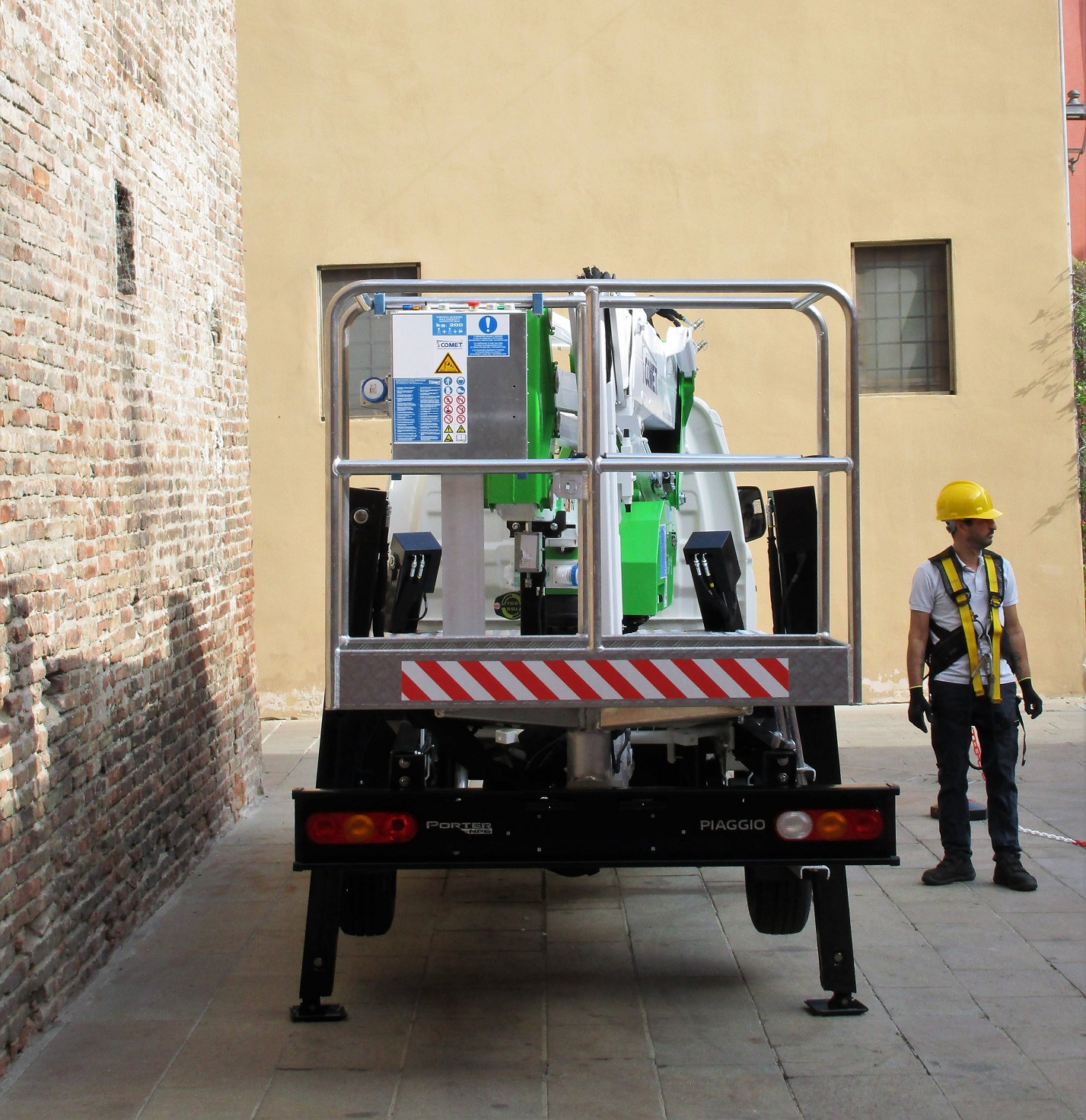

ALUMINUM BASKET: dimensions mm.1400x600x1100; rotation cylinder protection; load cell for load control in basket; CONTROLS: fully hydraulic, proportional for up to three movements at the same time, positioned vertically on basket and protected by cover. Motor on/off button and overload indicator lights, alarm and emergency button, basket central position indicator light – hydraulic system in low-pressure nacelle (25 bar).
ACCESSORIES INCLUDED
- Starting/stopping vehicle engine from ground and basket controls;
- 230 V ac CE electrical socket in basket with shunt socket in turret;
- Basket anti-collision bar on rear bumper;
- Wall-collision system (to stop all movement if the spacecraft touches walls or other obstacles)
- Cab anti-collision system (to block movements that could accidentally cause the arm to collide with the cab)
