Description

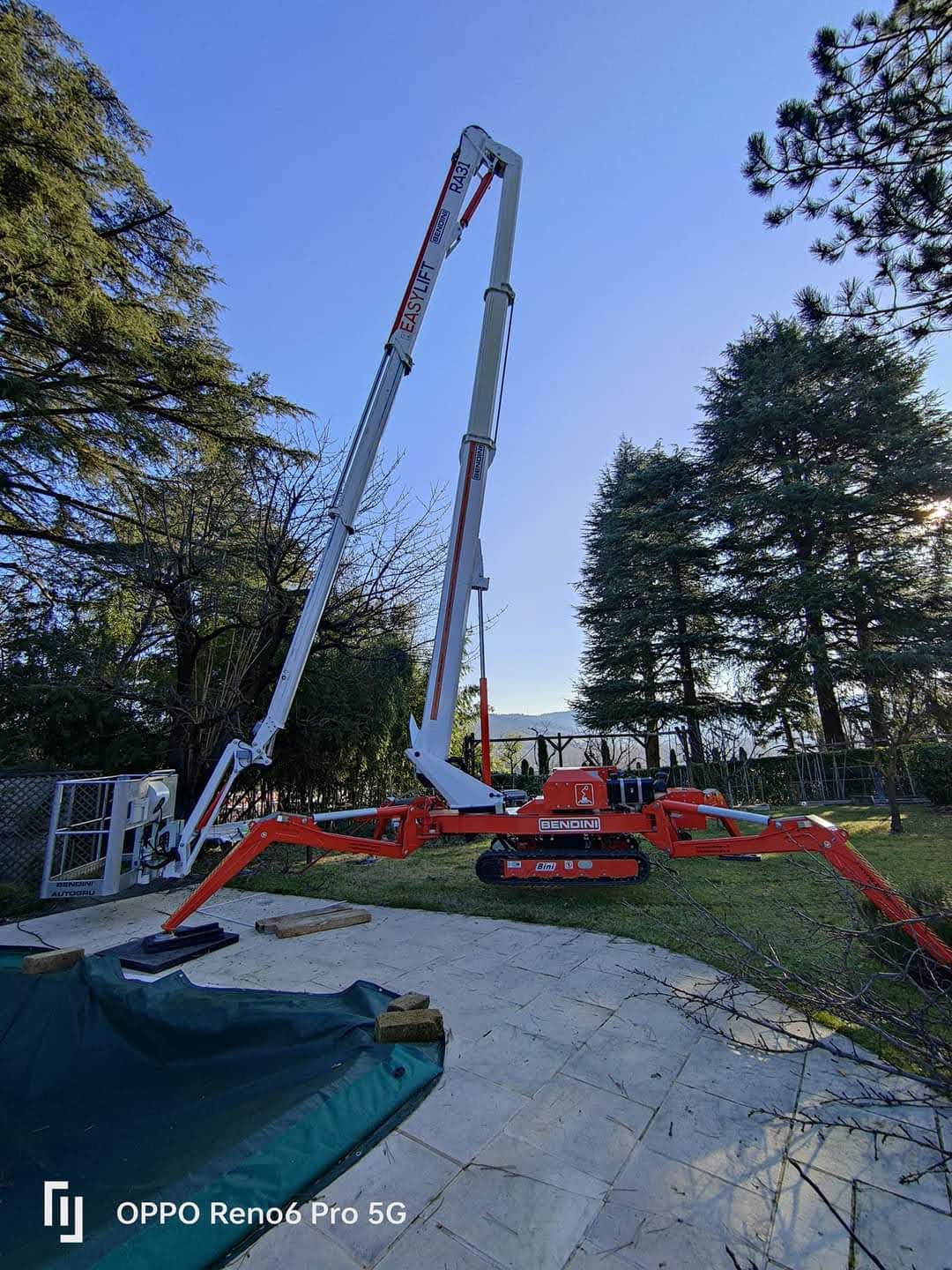

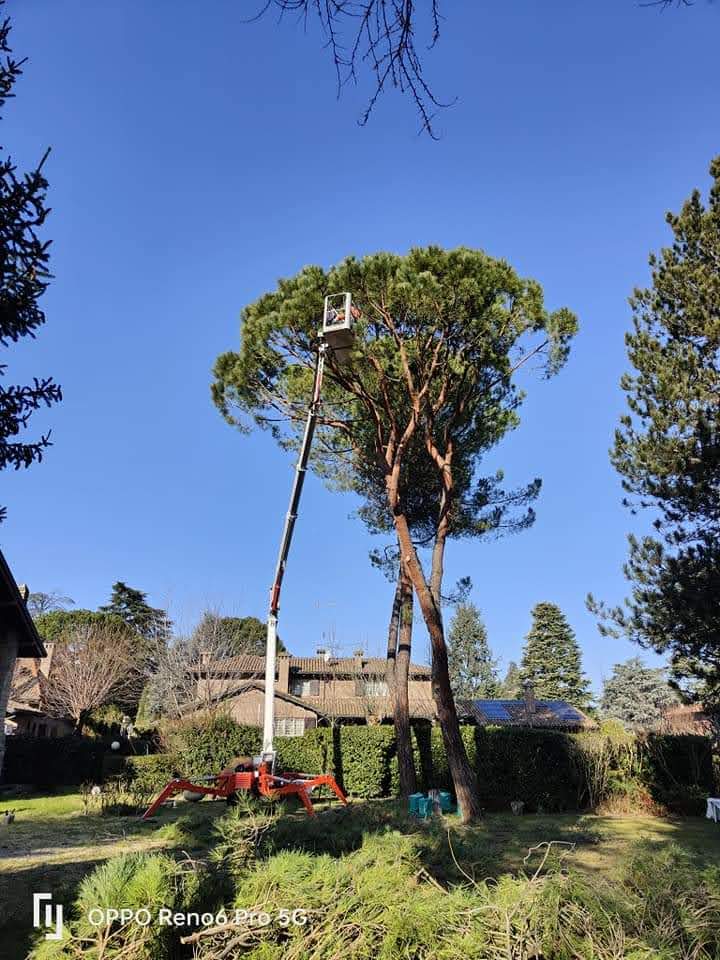

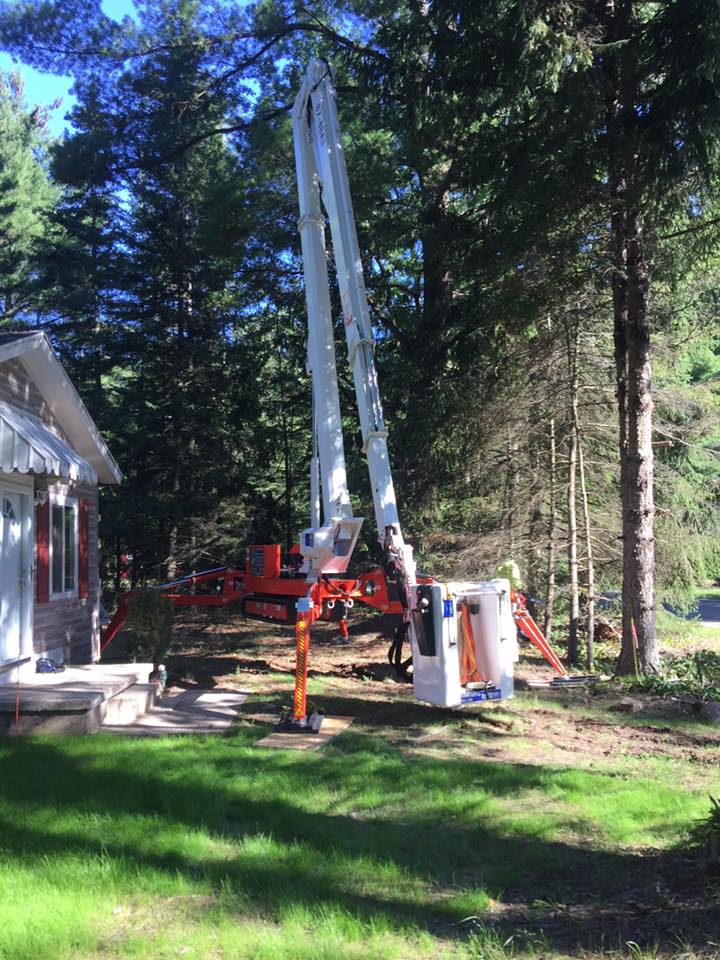

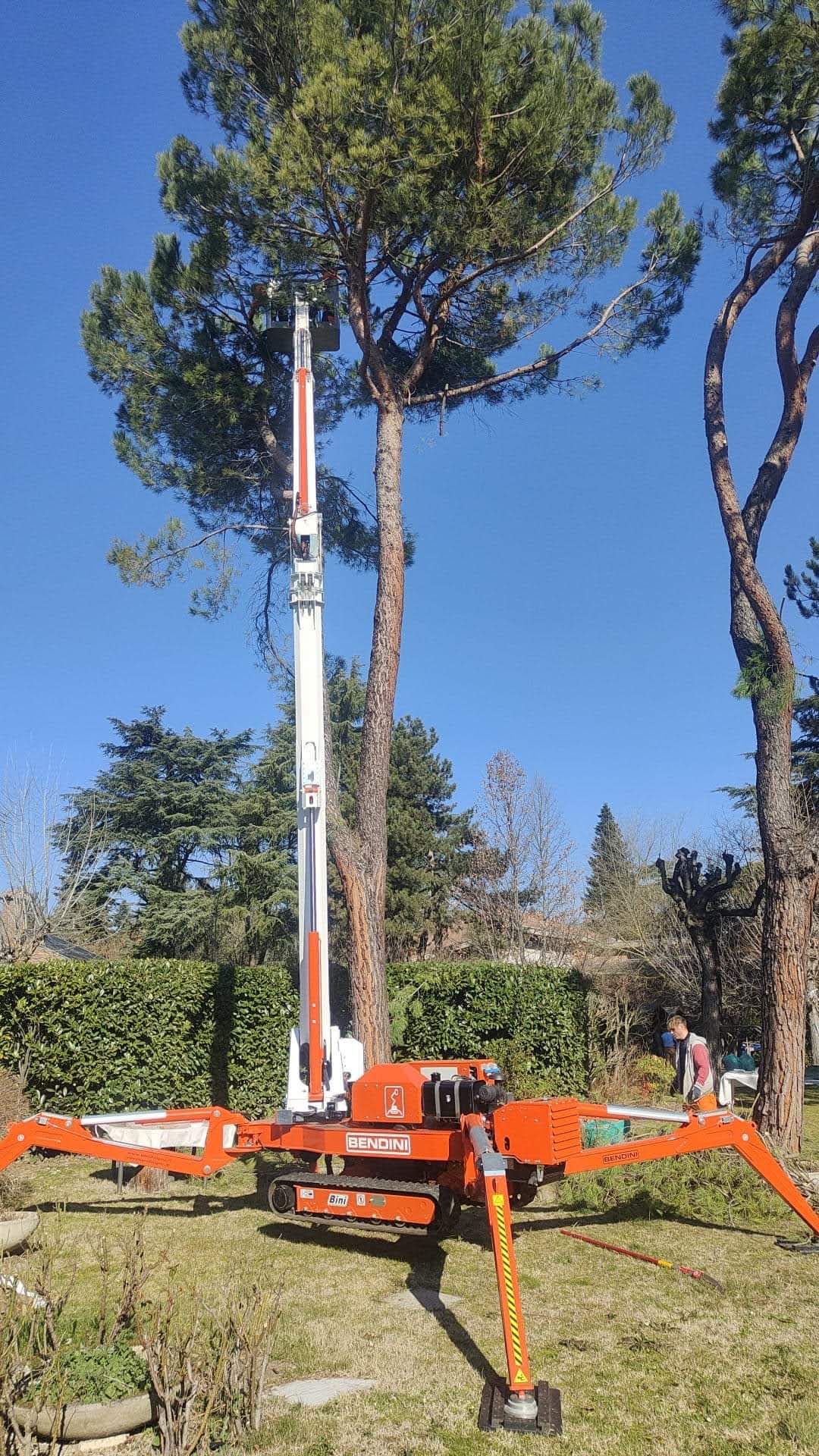

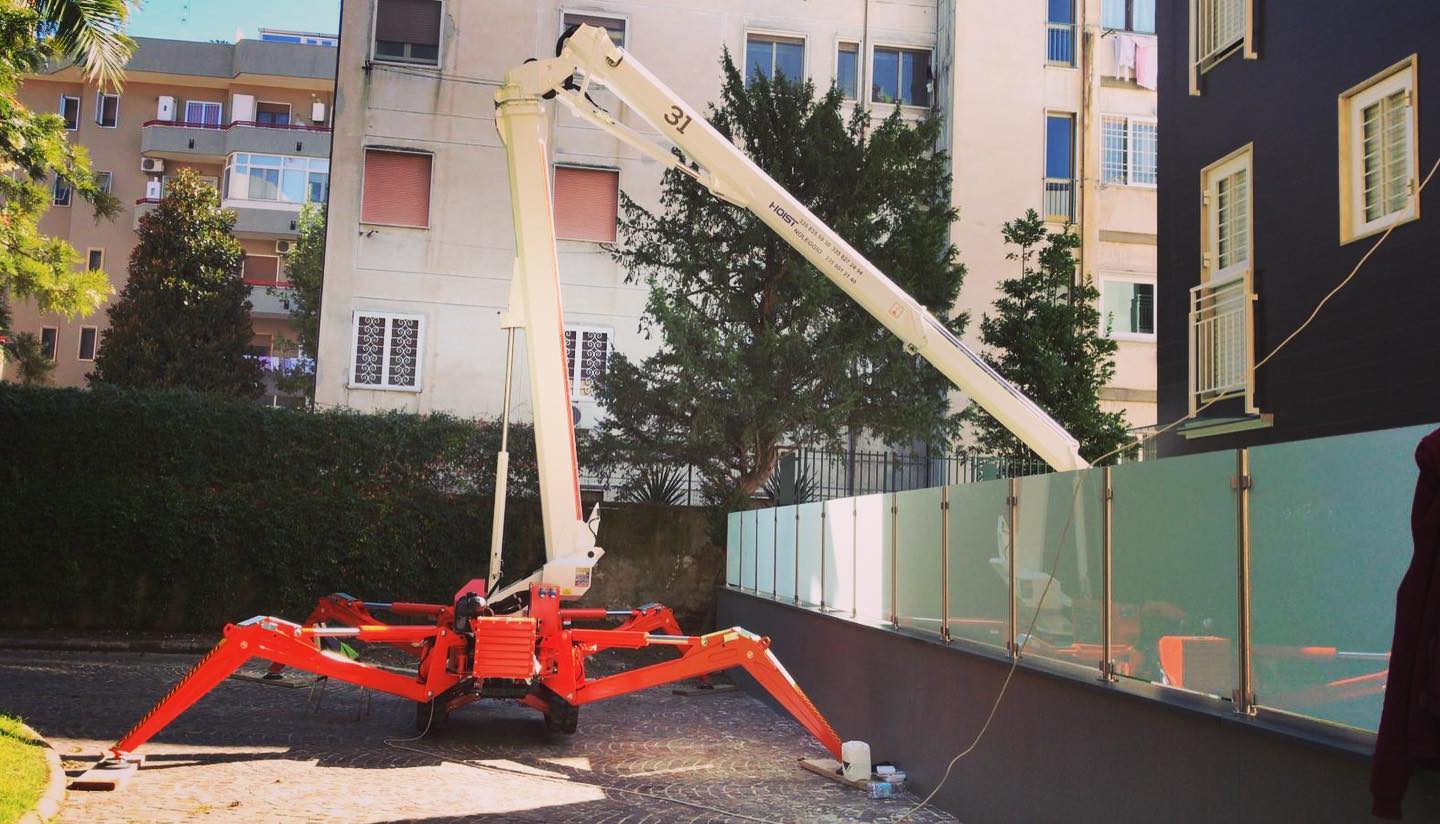

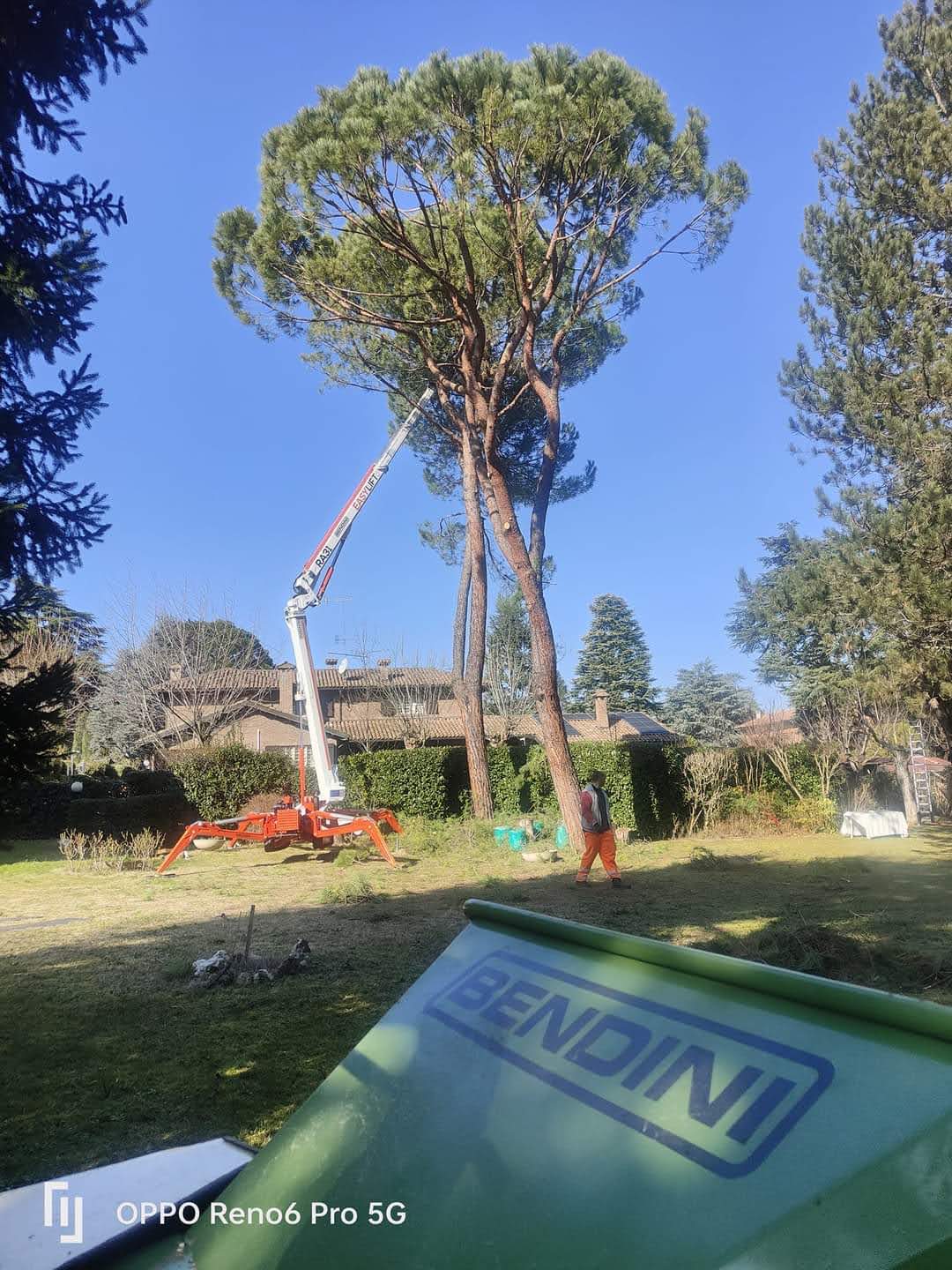

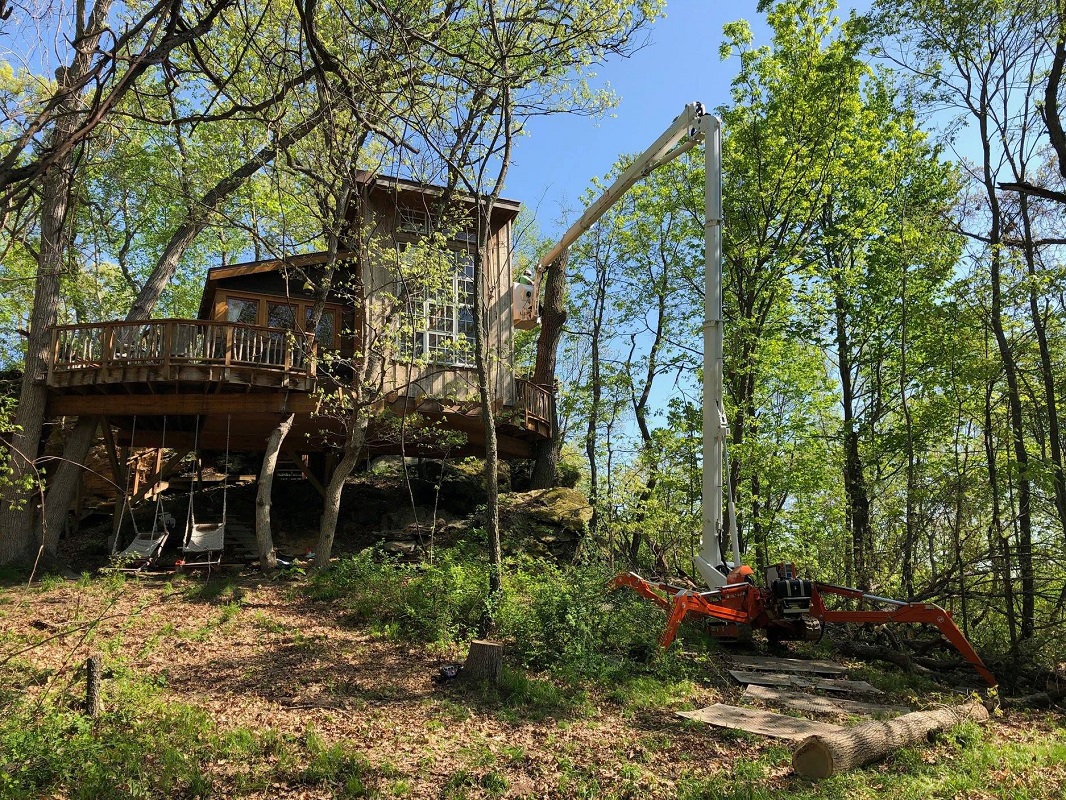

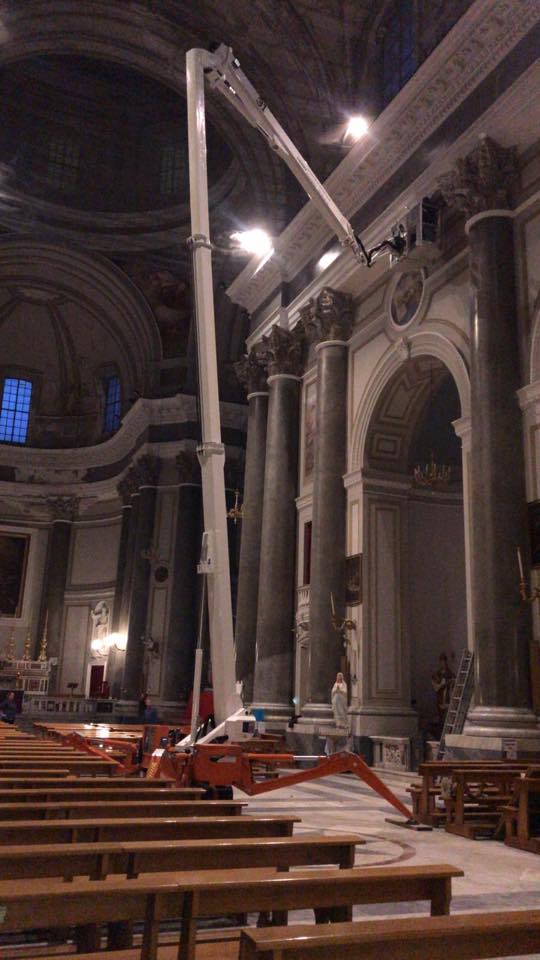

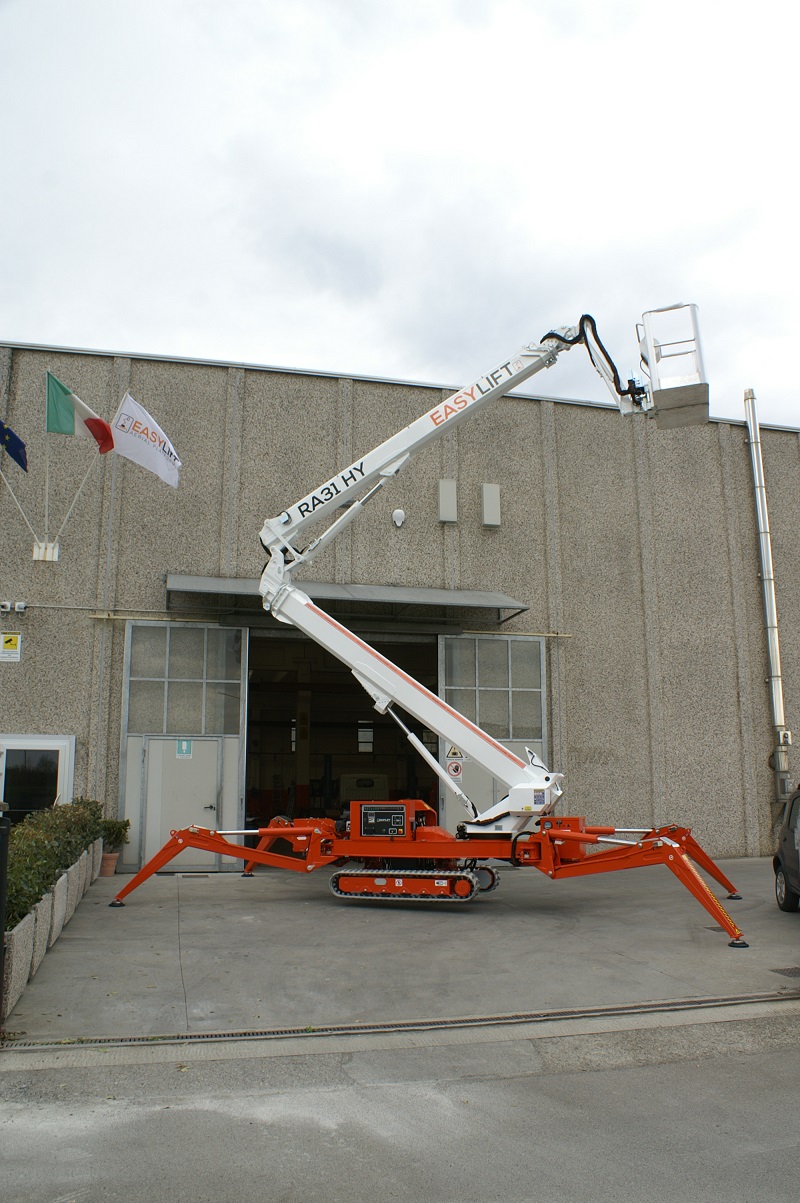

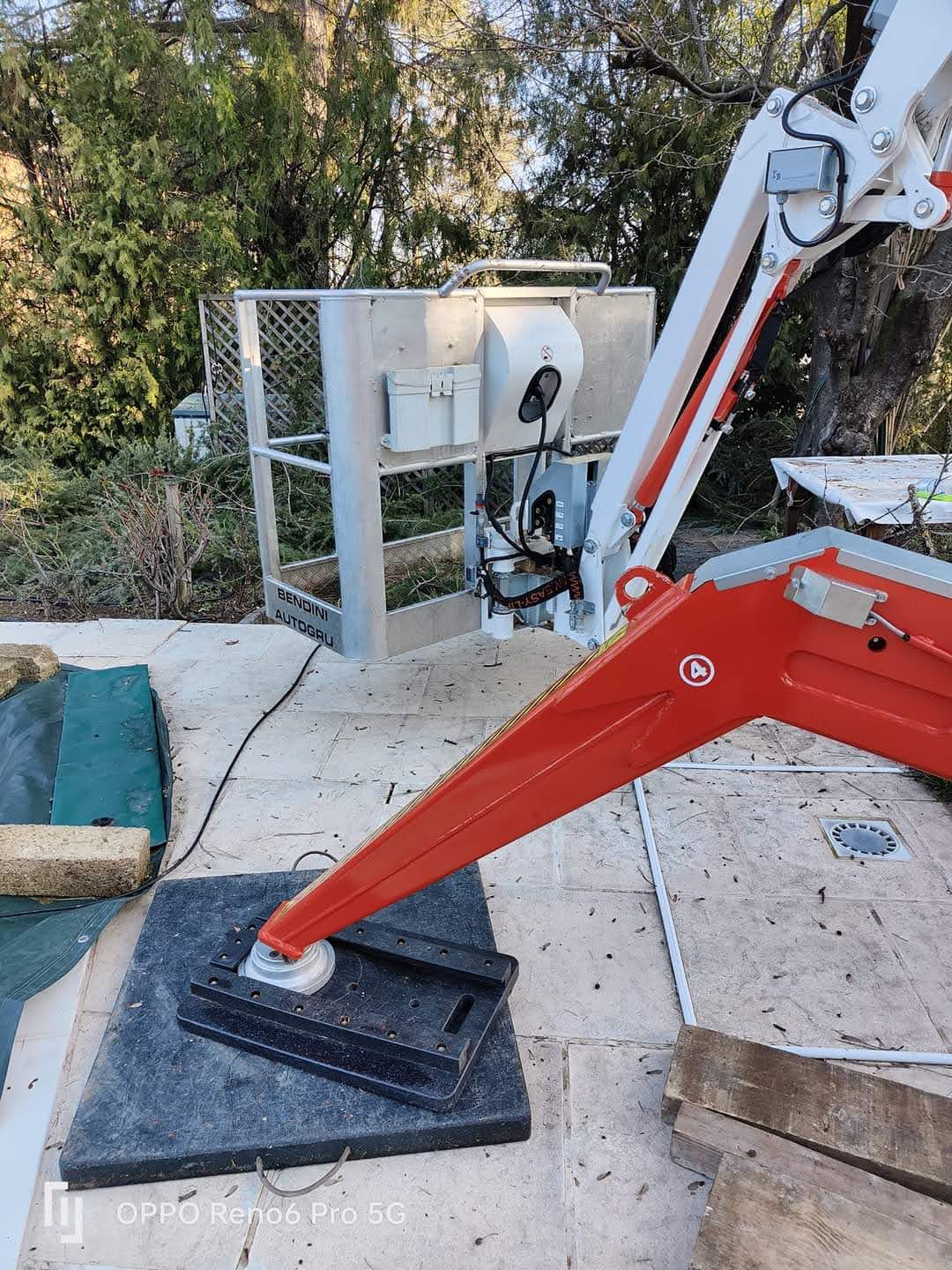

Max. working height: 30.20 m, Max. working outreach (120 kg): 14.50 m, Turret rotation: 360°, Aluminium basket 1400x700x1100 h mm with capacity 230 Kg (2 operators), Basket rotation: 90°+90°, Diesel engine: Hatz 25.7 Kw Superable slope in translation: 30%, Total platform weight: 4300 kg, Outriggers dimensions at ground level: 3150×690 mm/4500×5800 mm, Machine dimensions at rest length 6800 mm – width 890/1290 mm – height 1990 mm, Danfoss electro-hydraulic controls, Radio remote control, Locking valves on cylinders, Acoustic signal during travel, Engine start/stop control from basket, Extendable outriggers to facilitate loading onto truck , Electric pump for emergency lowering, Safety belt hooks on basket, Reach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water outlet, 220 V electric outlet

AVAILABLE OPTIONALS

  •  Self-leveling stabilizers
  •  Interphone
  •  Non-marking tracks
  •  Working beacon on the basket
  •  Inclinometer with acoustic alarm
  •  No. 4 stabilizer plates 600x400x30 mm
  •  Hydraulic winch (lifting capacity 500 kg)
  • 380 V electric motor

WATCH THE VIDEOS



Brand

Easy Lift
