Description

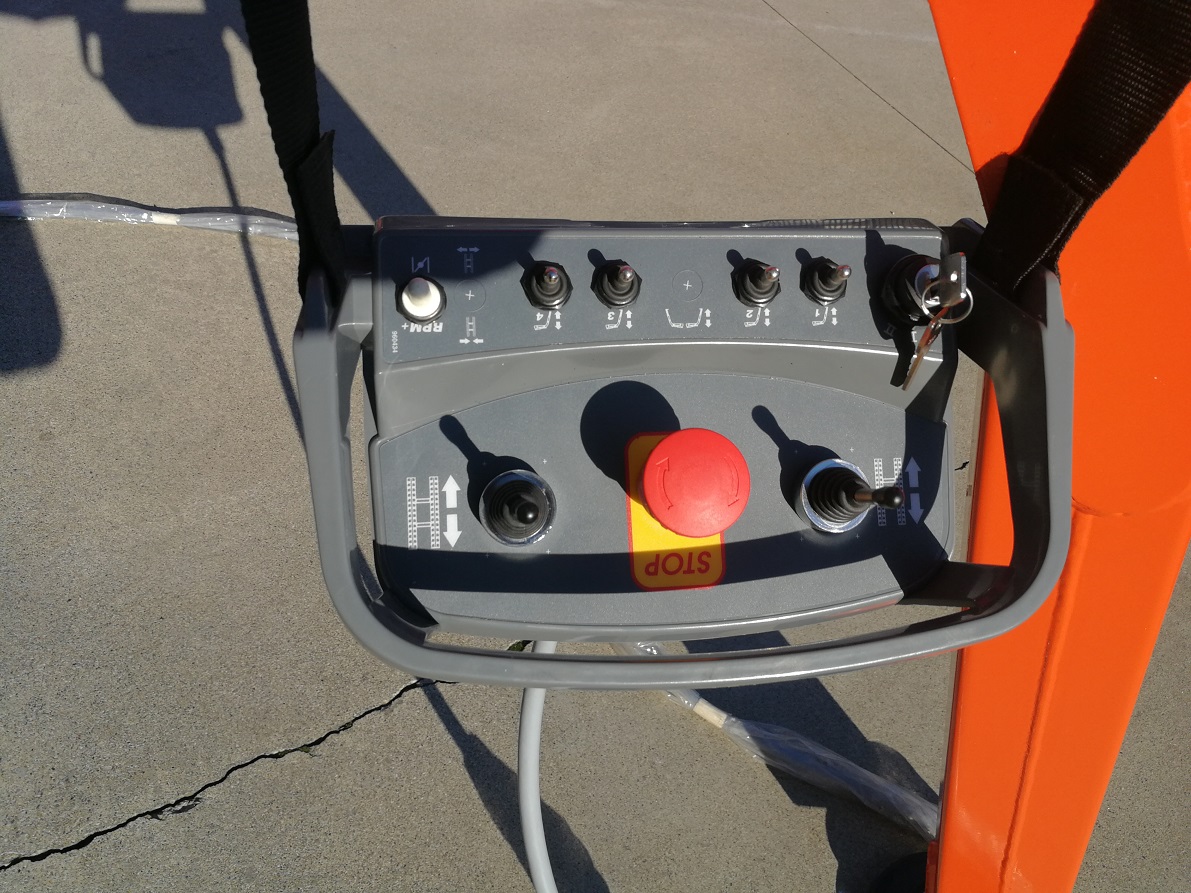

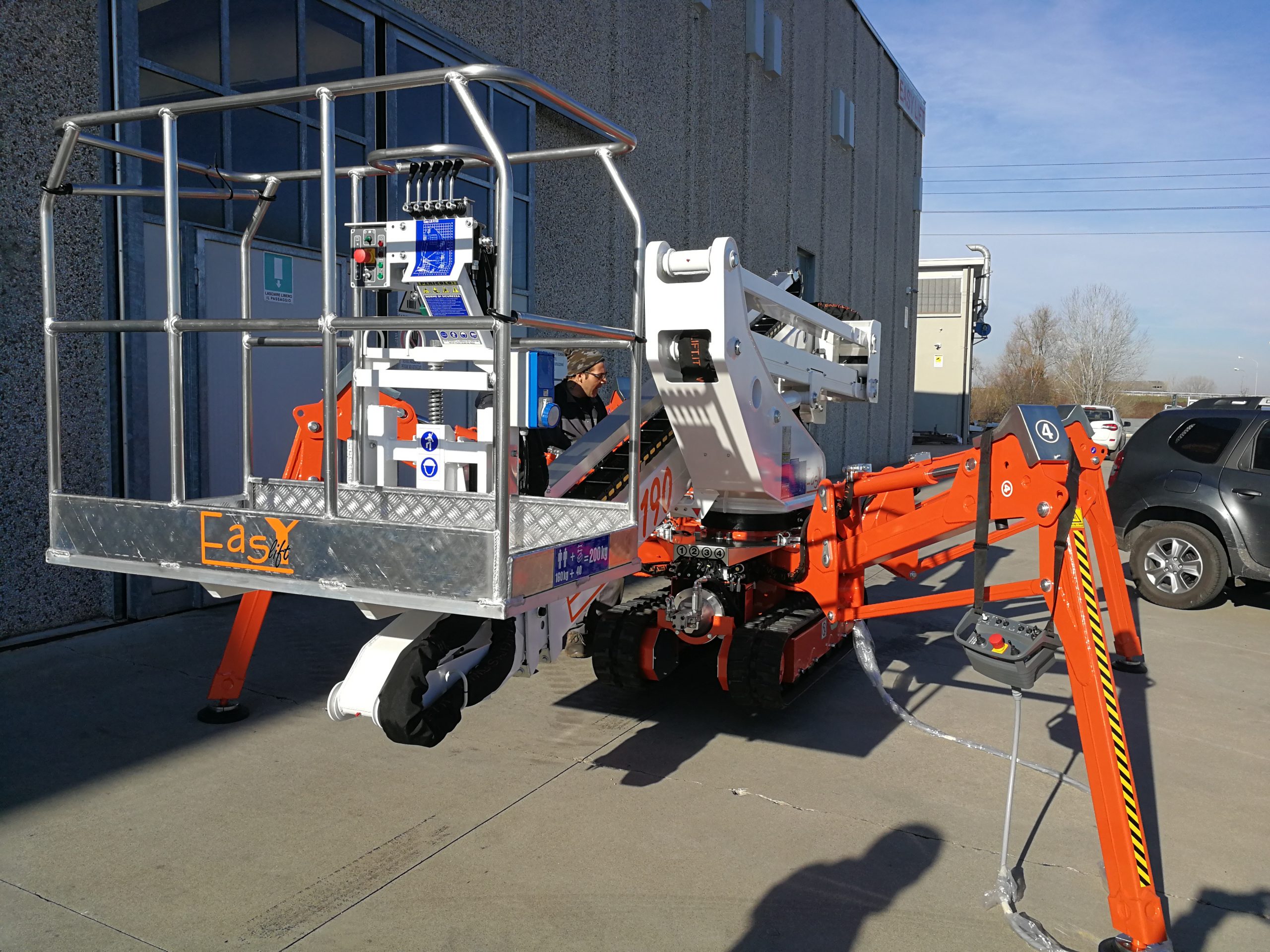

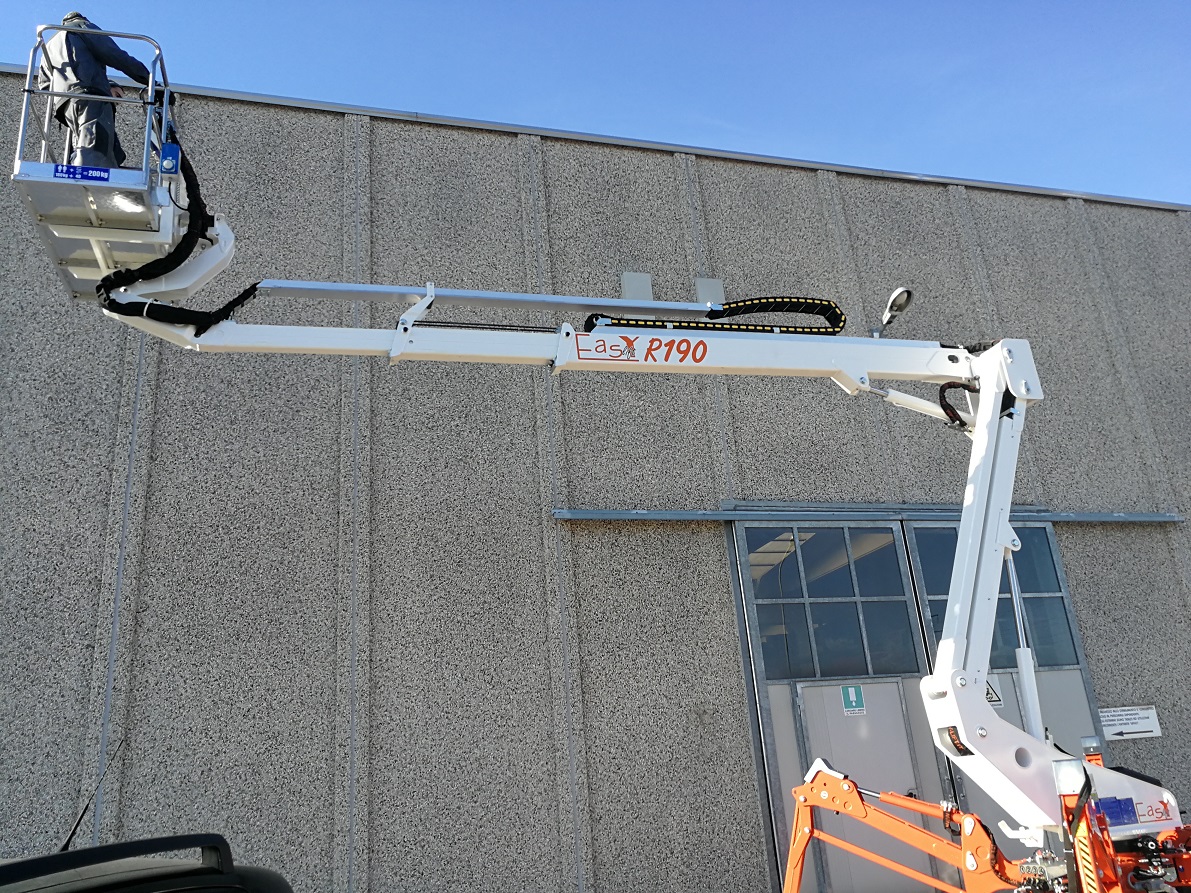

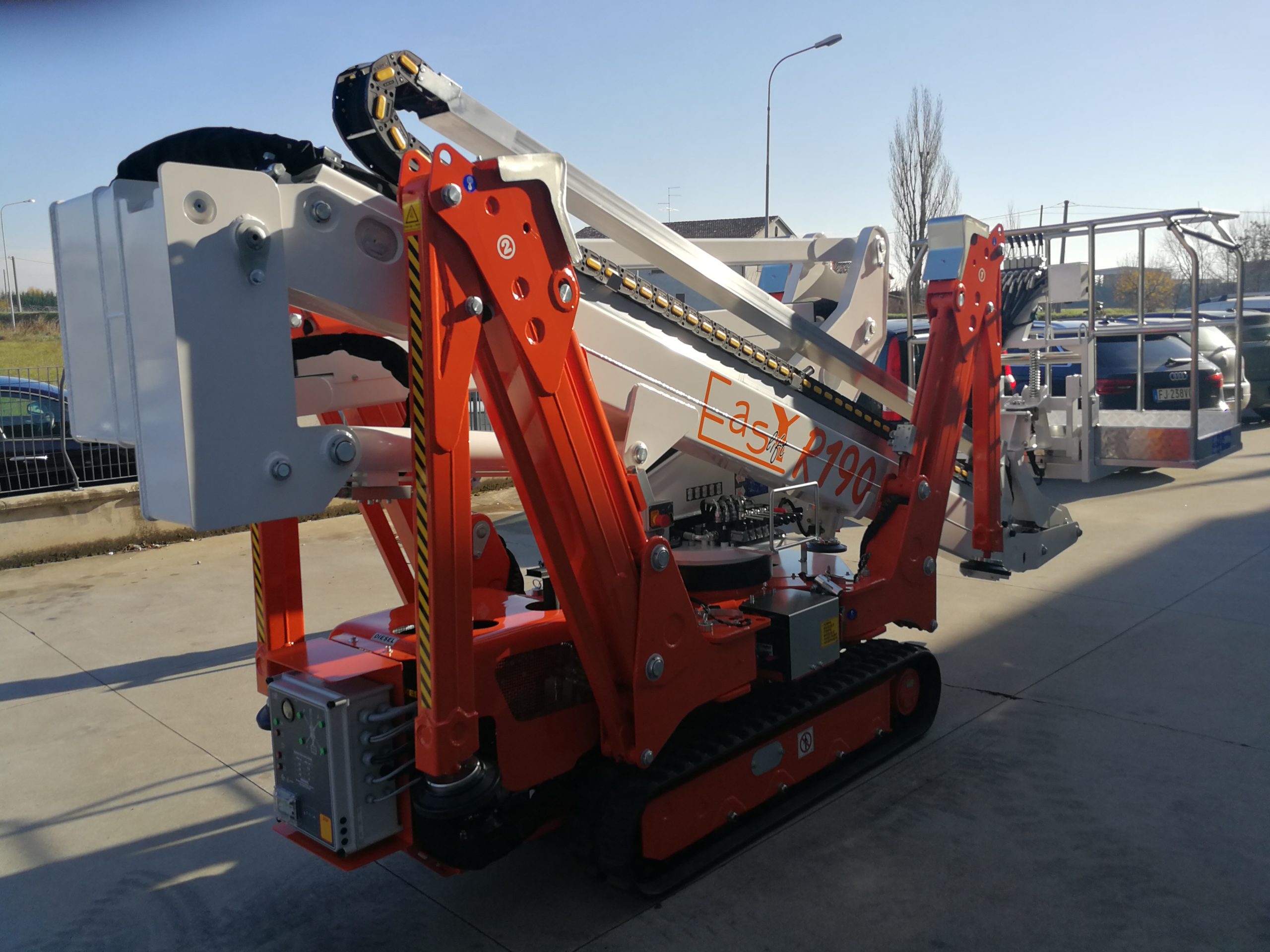

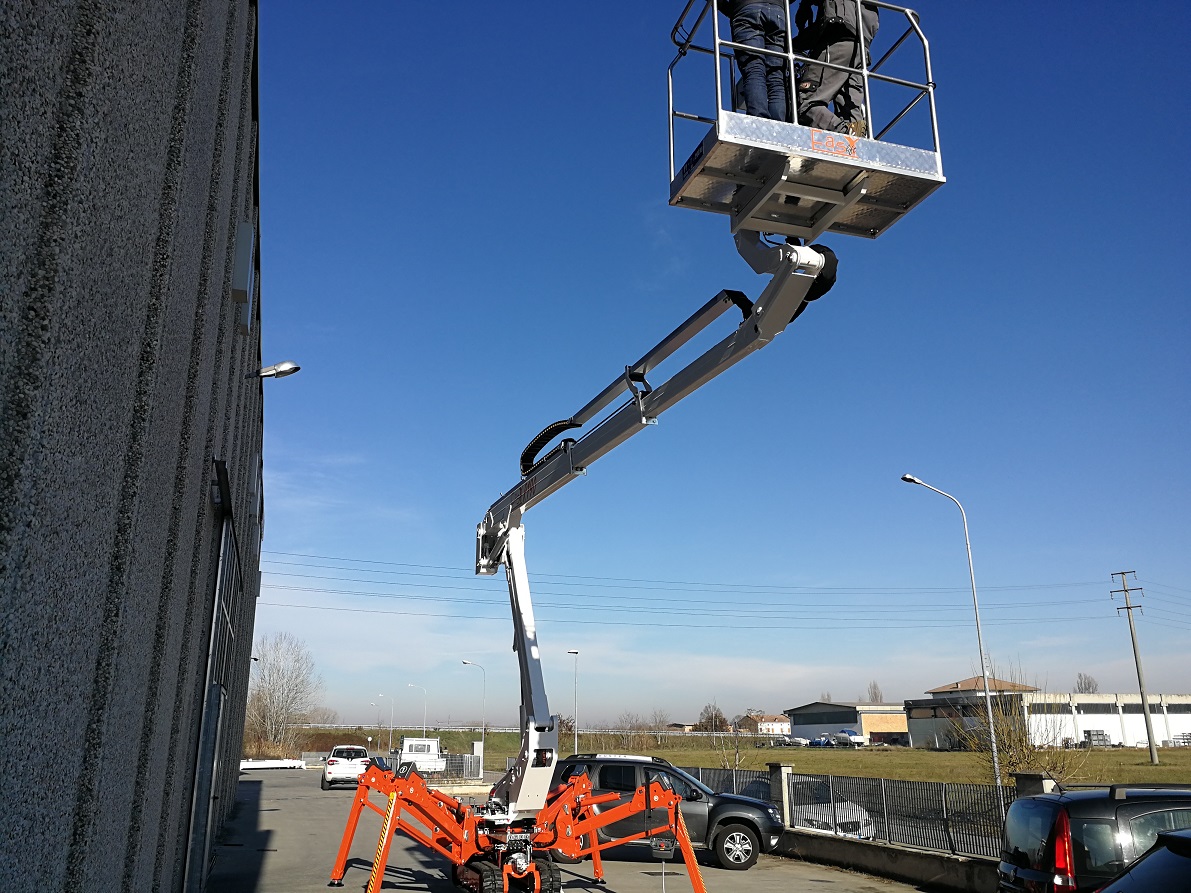

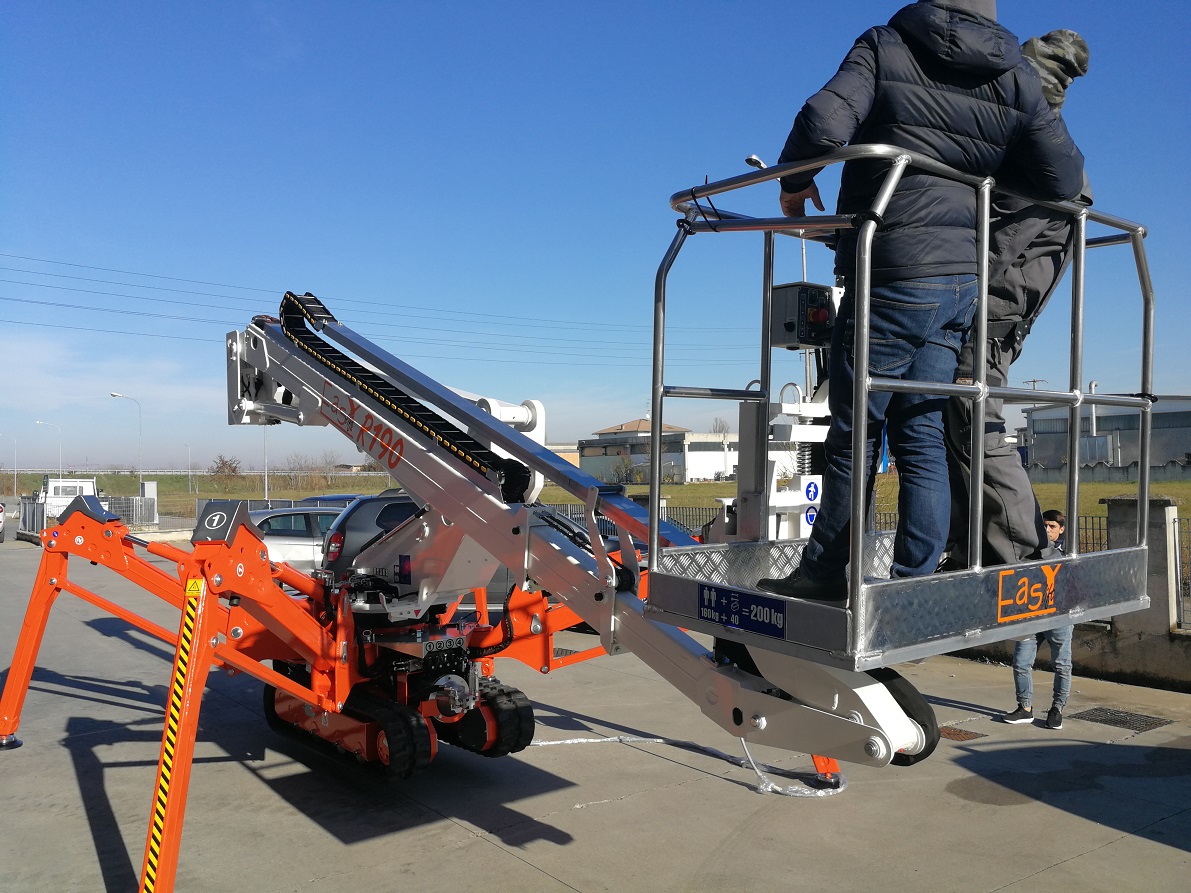

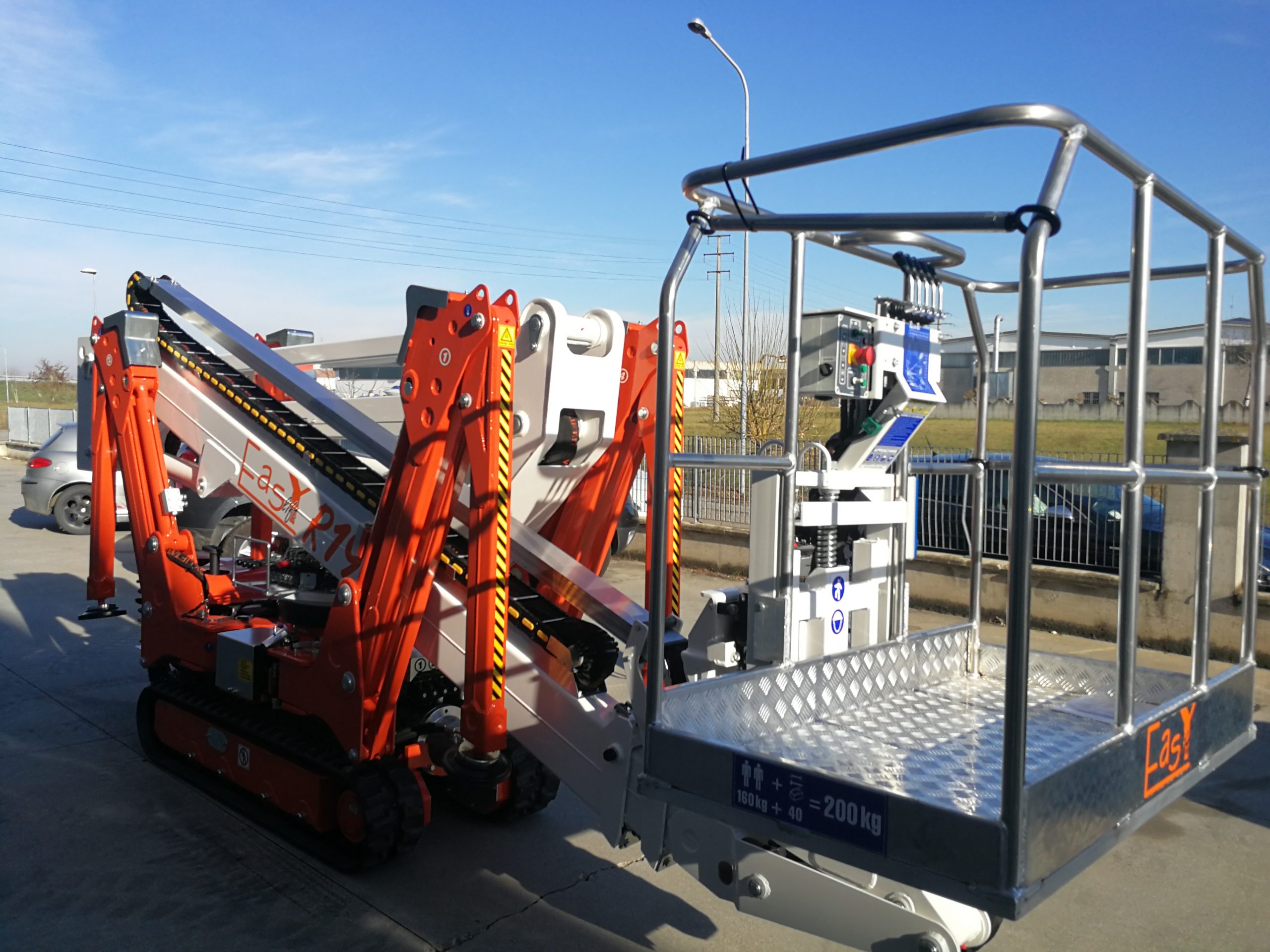

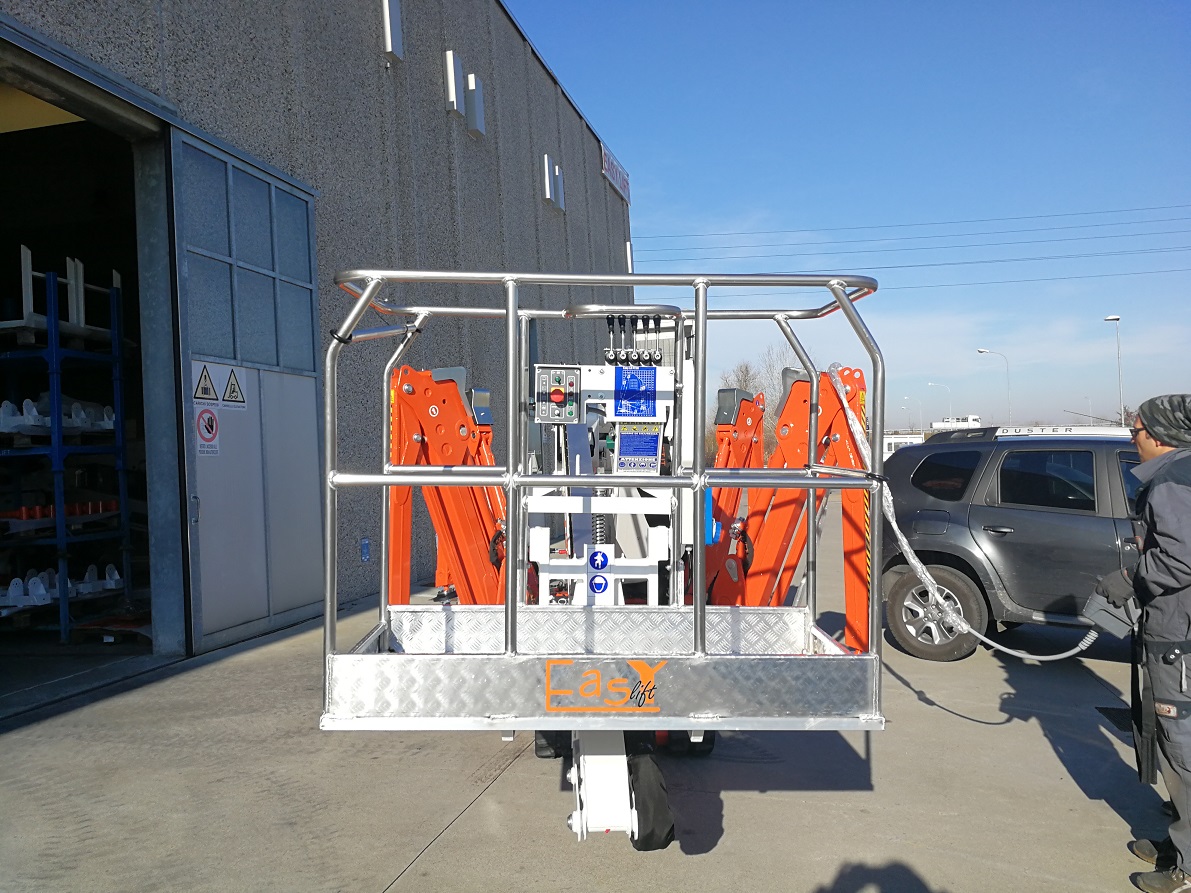

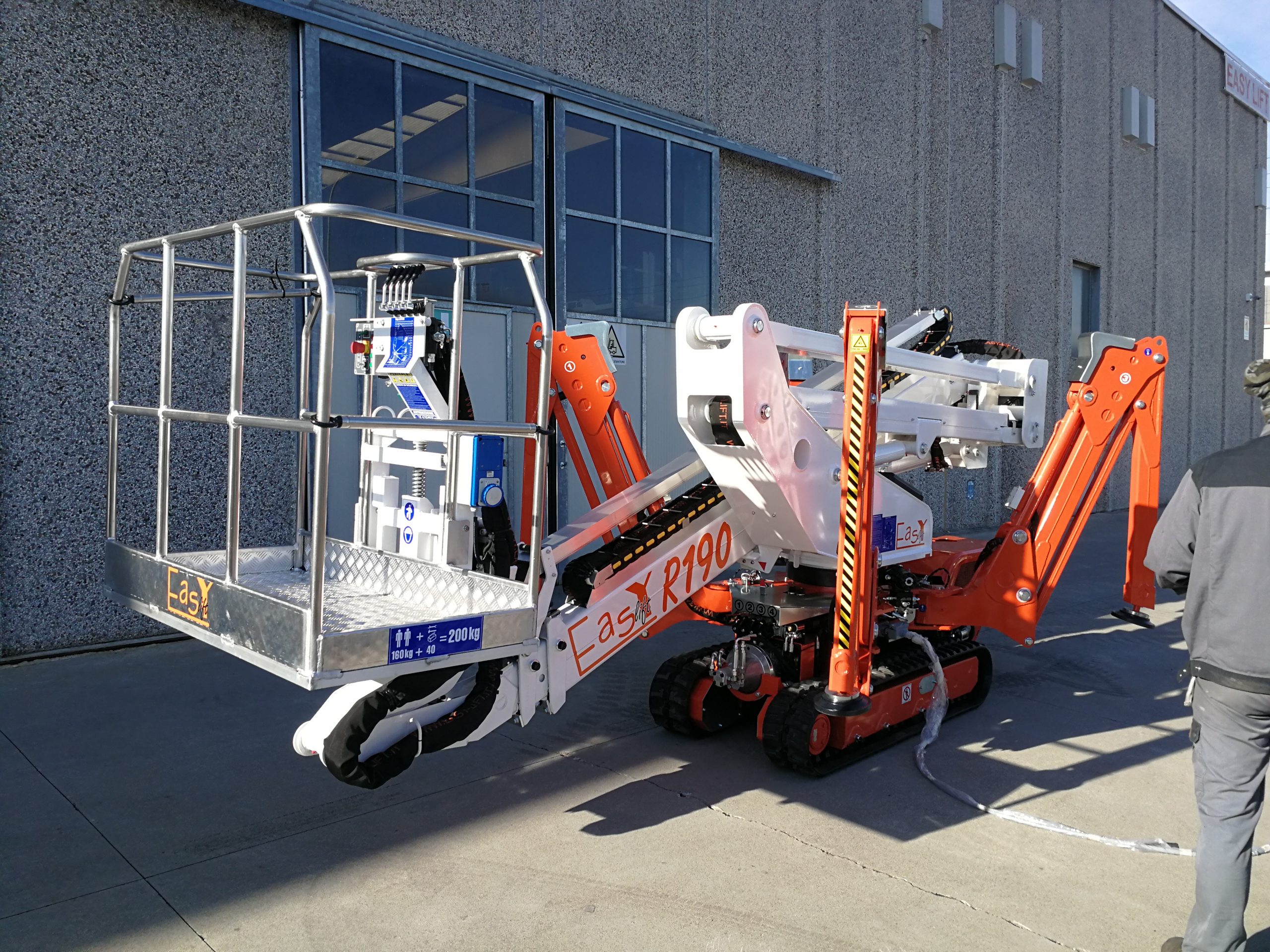

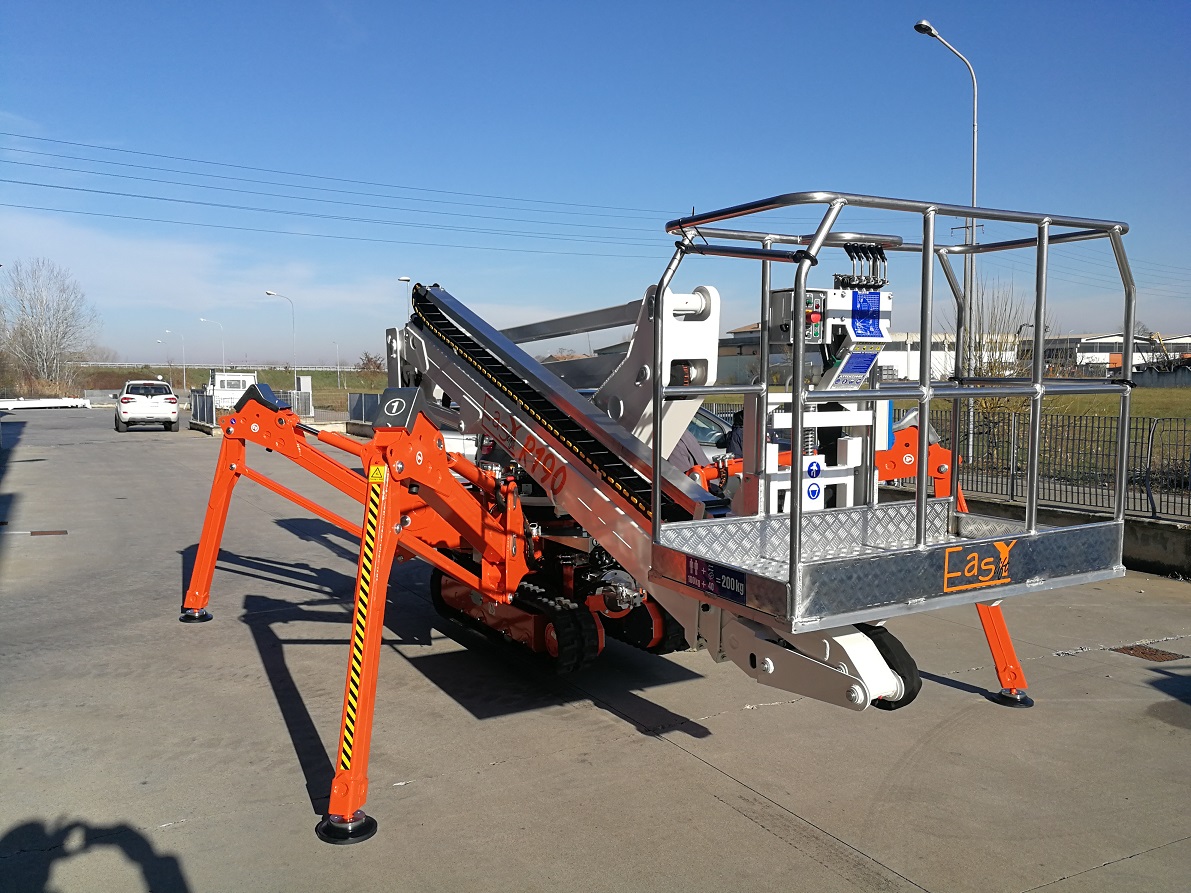

Max. working height: 18.50 m, Max. working outreach (120 kg): 11.00 m, Turret rotation: 360°, Aluminium basket 1400x700x1100 h mm with capacity 200 Kg (2 operators), Basket rotation: 90°+90°, Petrol engine: Honda 9.6 kW, Traveling grade: 30%, Platform total weight: 2800 kg, Stabilisers on the ground: 3500×3500 mm/4200×2500 mm. Overall dimensions of machine at rest: length 4900 mm – width 890 mm – height 1980 mm , Hydraulic and proportional controls, Control wire, Locking valves on cylinders, Acoustic signal during travel, Engine start/stop control from basket, Hand pump for emergency lowering, Hooks for safety belts on basket, Outreach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water intake, 220 V electric outlet, Standard painting, CE certification, Operation and maintenance manual.

AVAILABLE OPTIONALS

  • Diesel engine
  • 12/24V emergency electric pump
  • Radio control (tracks + stabilizers)
  • Non-marking tracks – Special painting
  • Working beacon on the basket
  • Inclinometer with acoustic alarm
  • 4 stabilizer platforms 600x400x30
  • 4 stabilizer platforms 600x400x30 with sliding guides

WATCH THE VIDEOS

Brand

Easy Lift
