Description

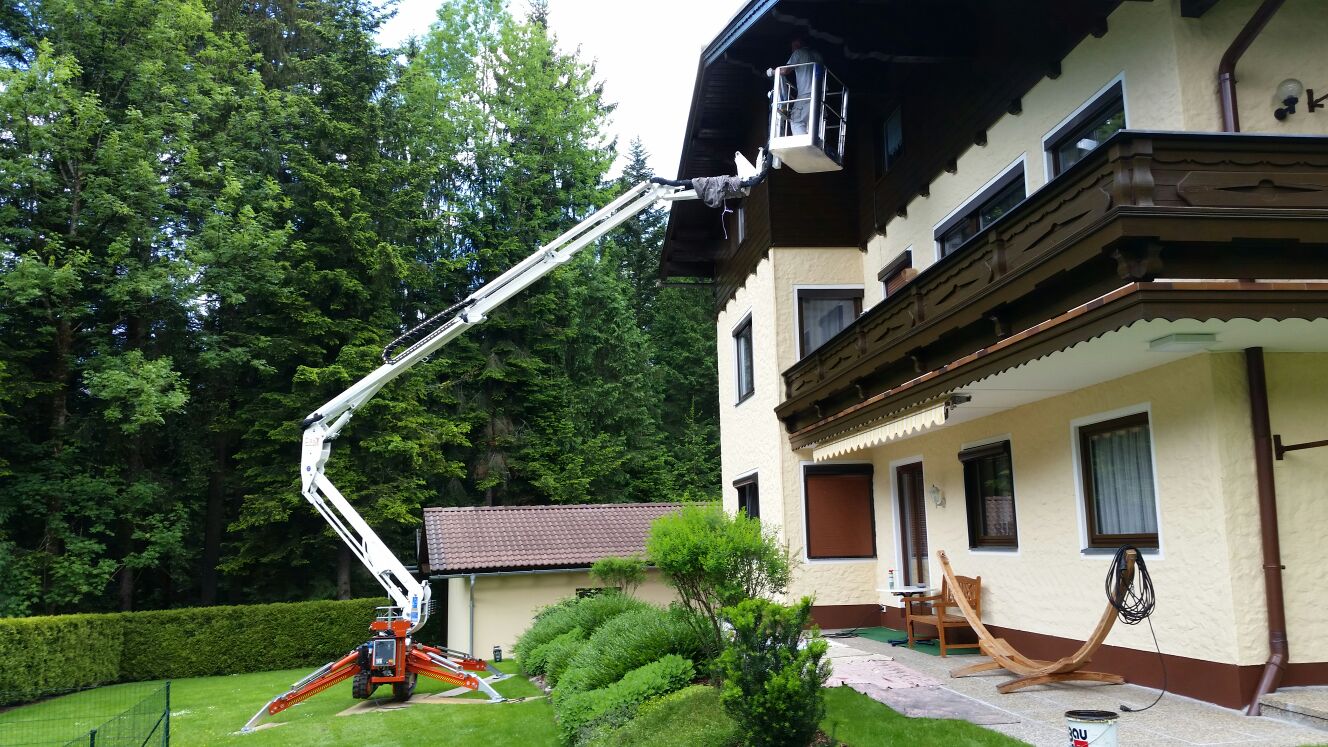

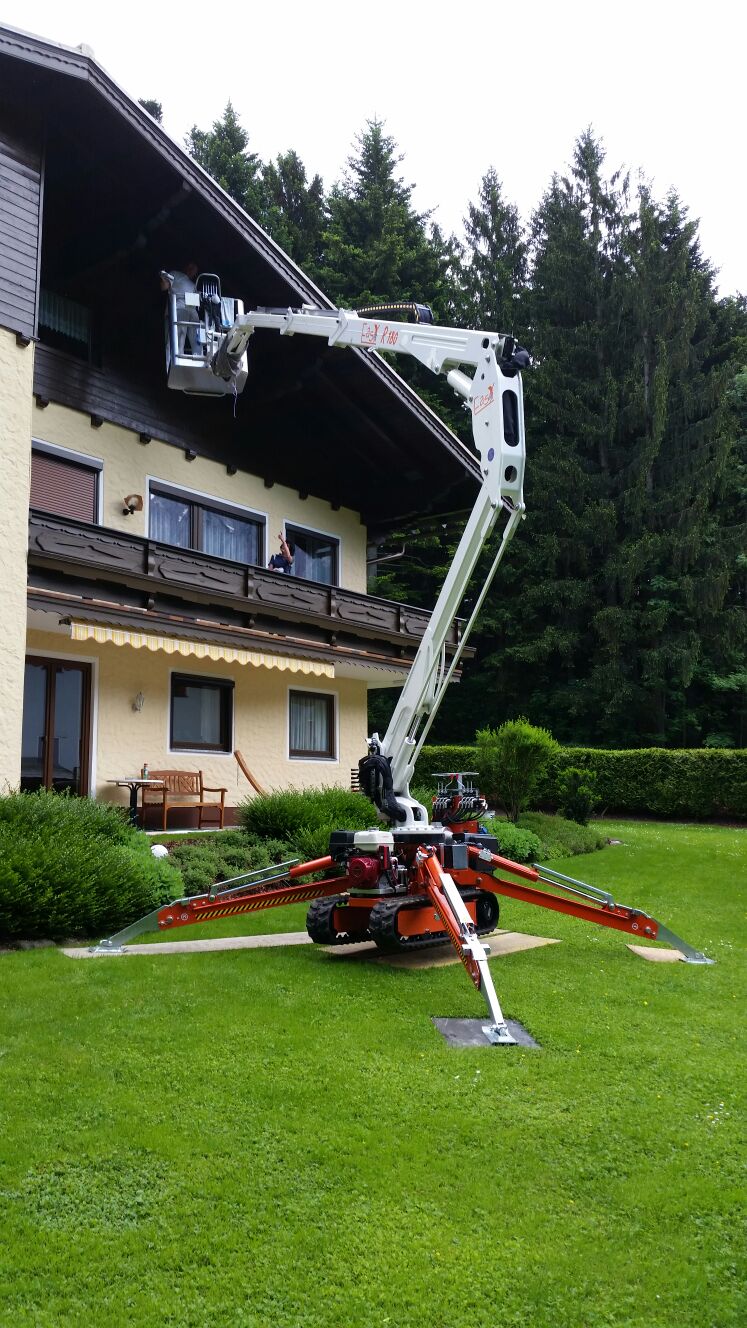

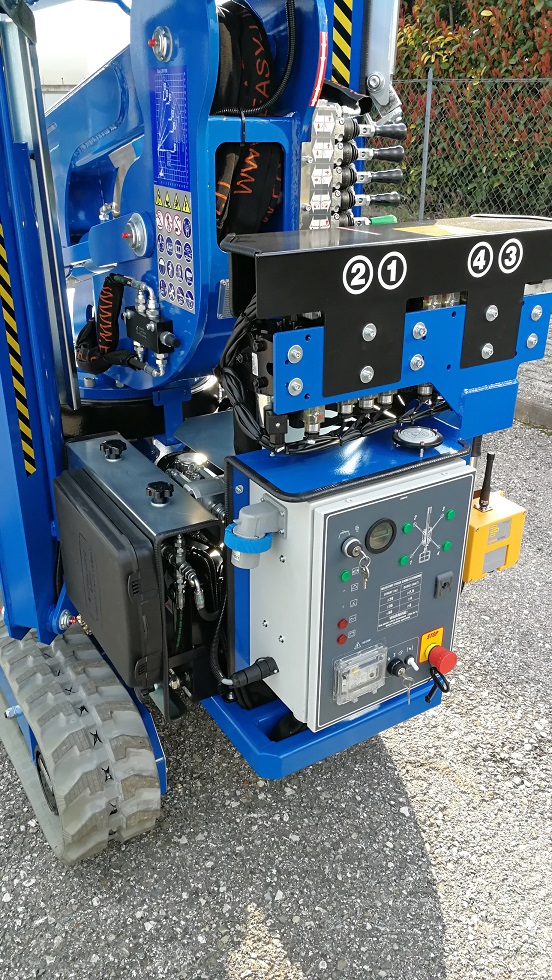

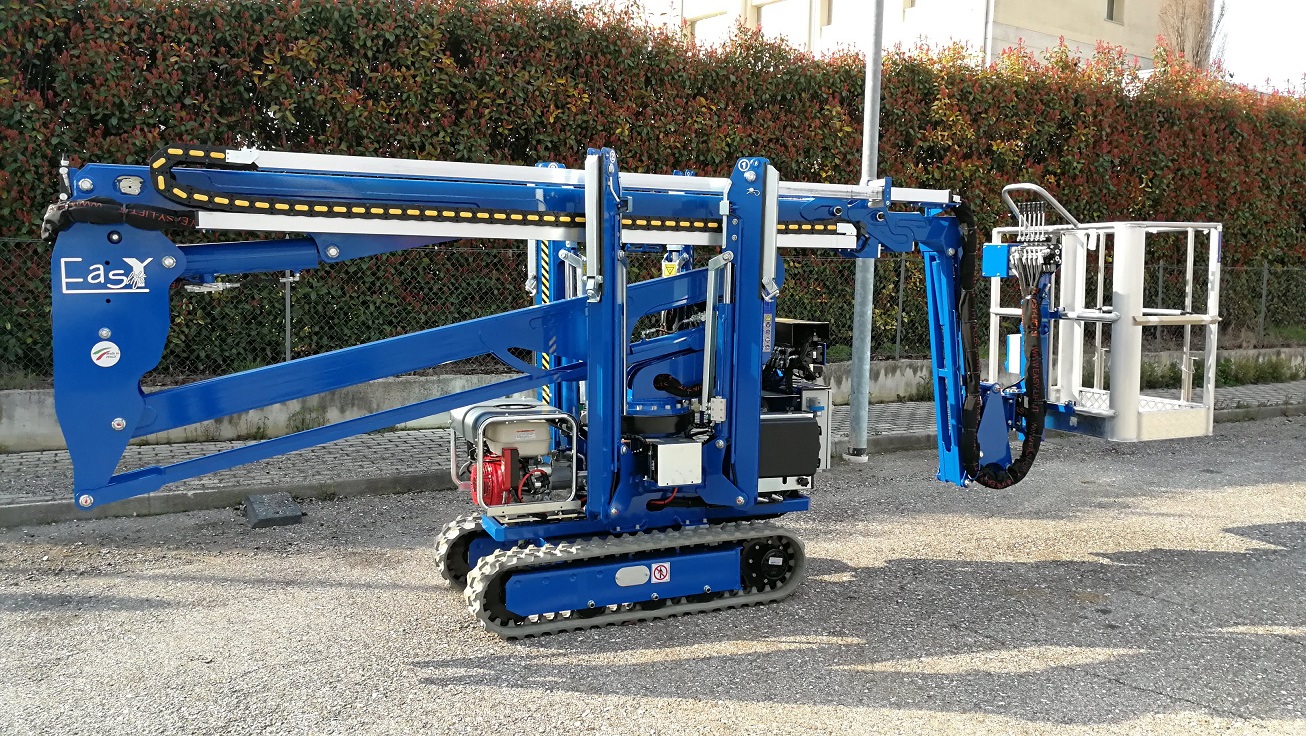

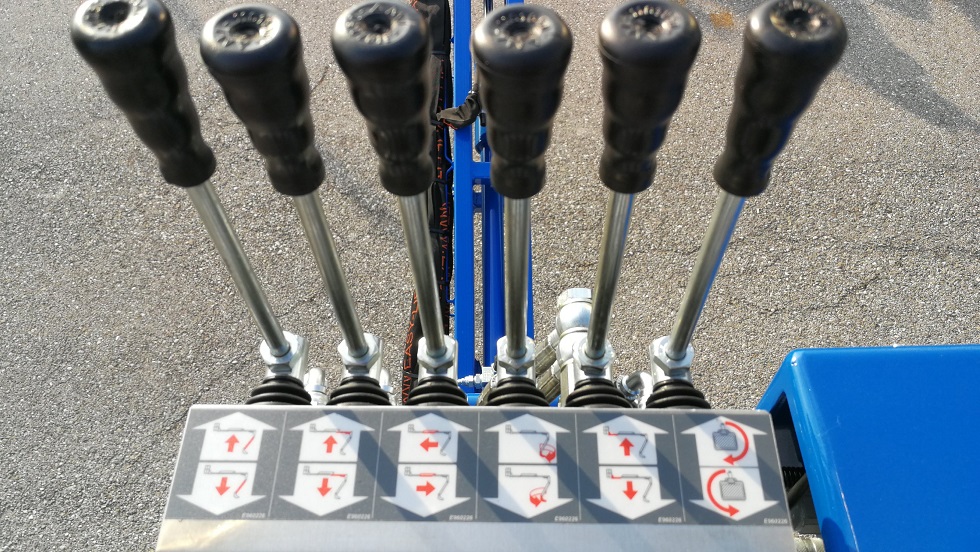

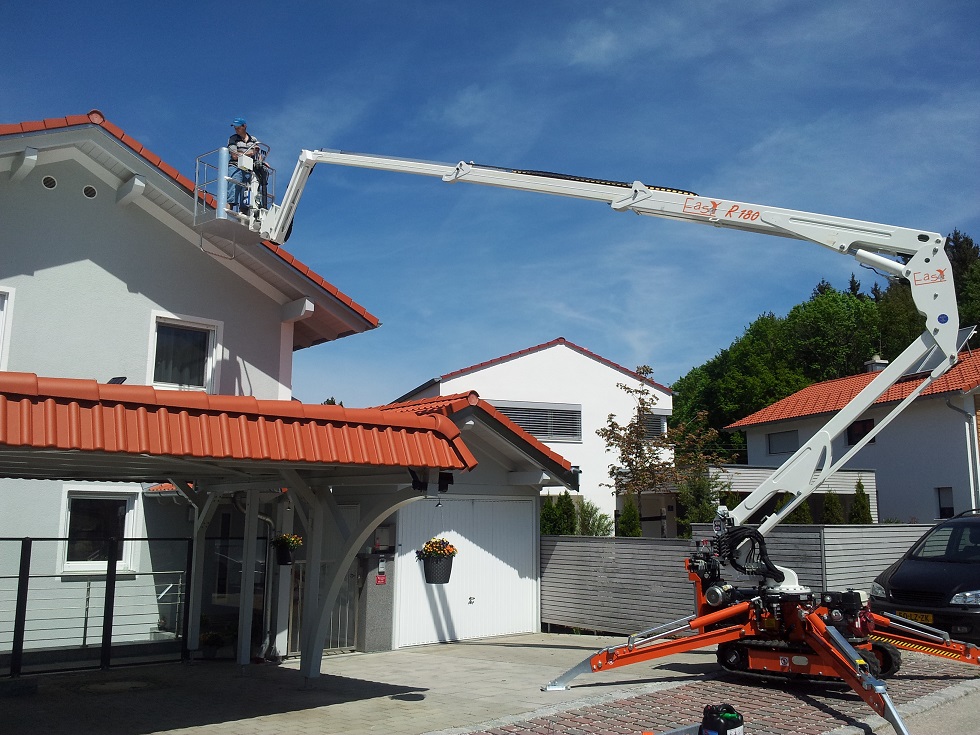

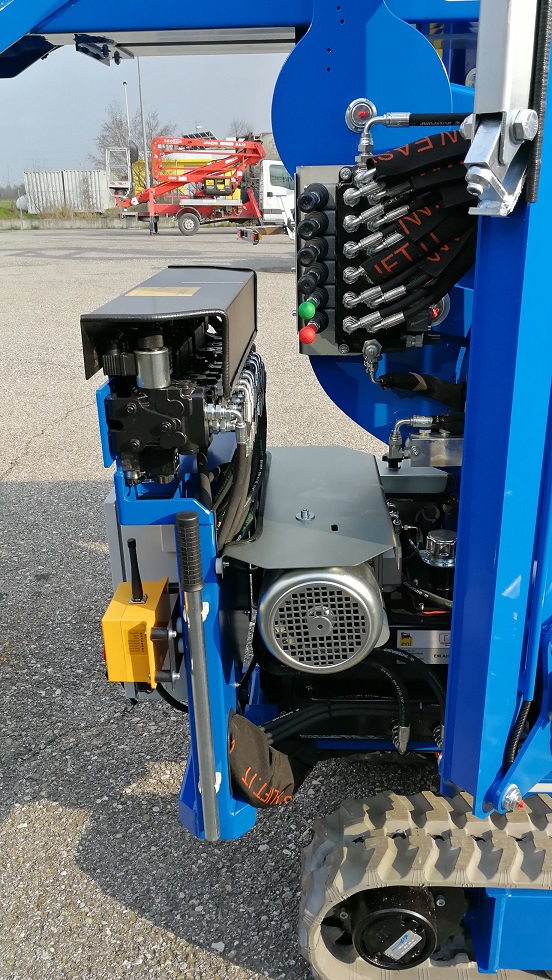

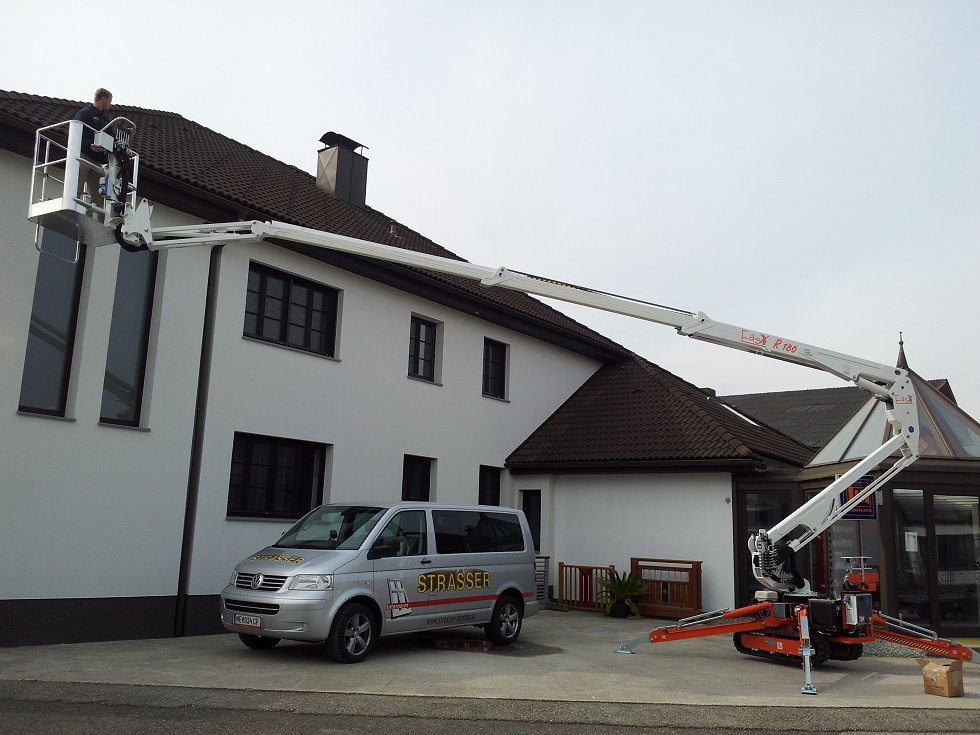

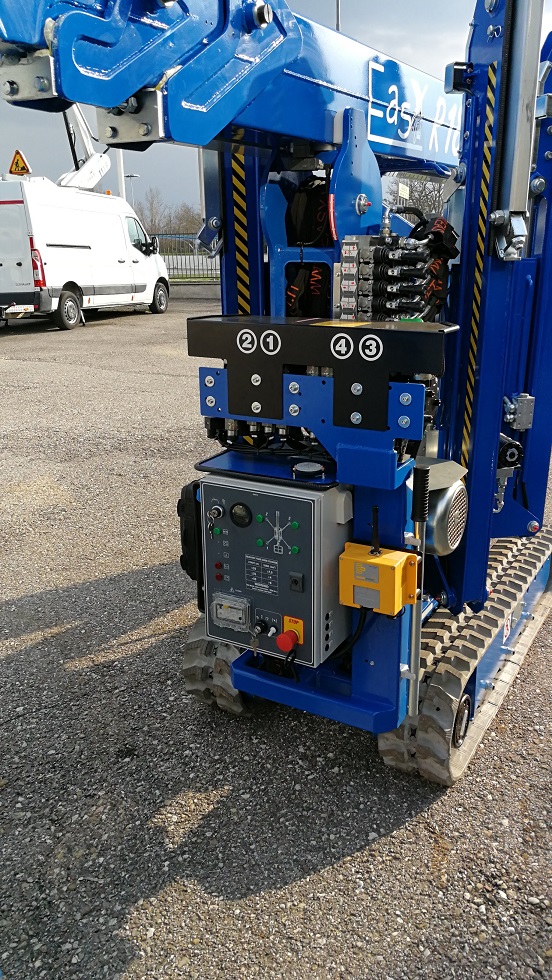

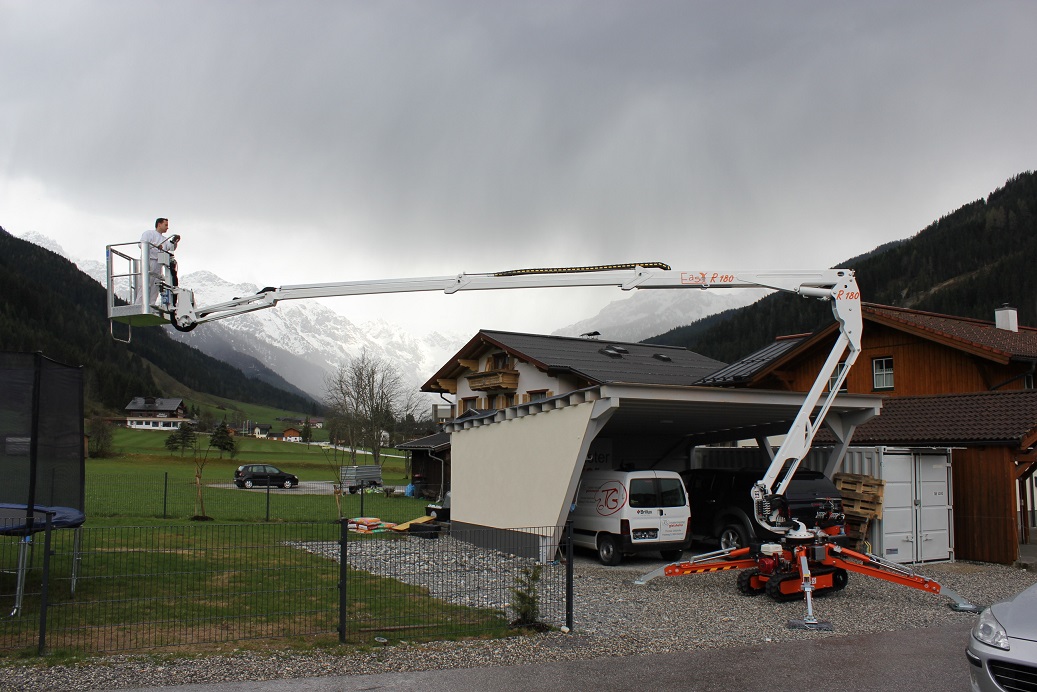

Max. working height: 17.60 m, Max. working outreach (120 kg): 8.50 m, Turret rotation: 320°, Aluminium basket 1100x700x1100 h mm with capacity 200 Kg (2 operators), Petrol engine: Honda 9.6 kW, Traveling slope: 30%, Platform total weight: 2200 kg, Outriggers dimensions at ground level: 3100×3100 mm, Overall dimensions of machine at rest: length 5480 mm – width 890 mm – height 1950 mm, Hydraulic and proportional controls, Locking valves on cylinders, Acoustic signal during translation, Engine start/stop control from the basket, Hand pump for emergency descent, Safety belt hooks on the basket, Reach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water outlet, 220 V electric outlet, Standard paintwork, CE certification, Owner’s manual.

AVAILABLE OPTIONALS

  • Diesel engine
  • 12/24V emergency electric pump
  • Radio control (tracks + stabilizers)
  • Non-marking tracks
  • Special painting
  • Working beacon on the basket
  • Inclinometer with acoustic alarm
  • 4 stabilizer platforms 400x300x20
  • 4 outrigger platforms 400x300x20 with sliding guides

GUARDA I VIDEO

Brand

Easy Lift
