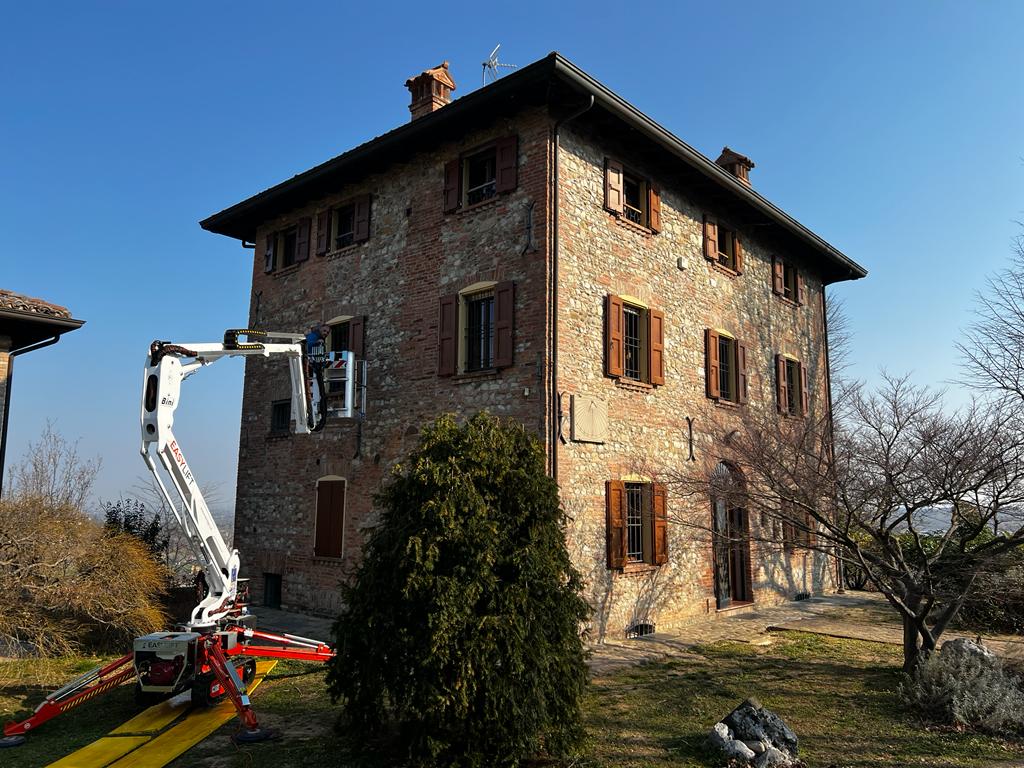

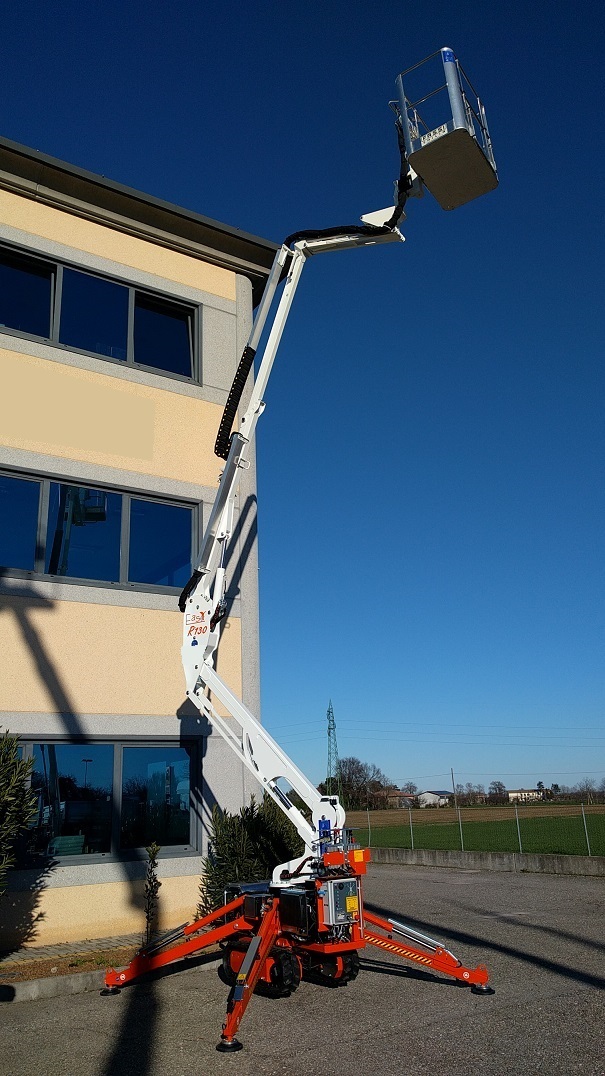

EASY LIFT R130 TRACKED AERIAL PLATFORM

19m self-propelled tracked aerial platform available in 4.0 configuration.

DOWNLOAD THE DEPLIANT

Easy-Lift_Spider R130

Richiedi info

    RICHIEDI INFO SUL PRODOTTO

    * Ho letto l'informativa sulla privacy e Autorizzo al trattamento dati

    Description

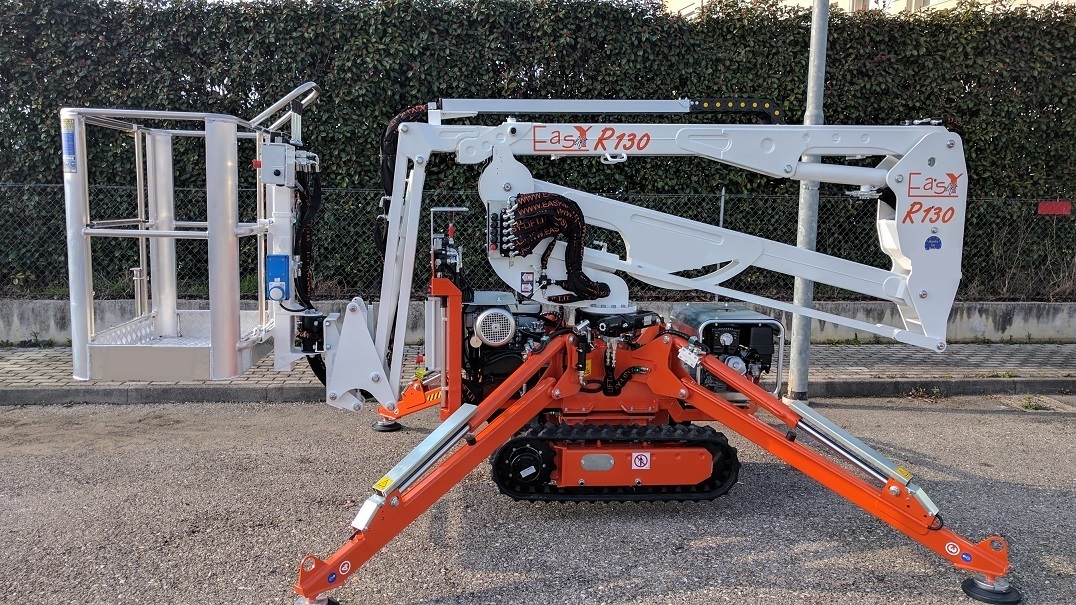

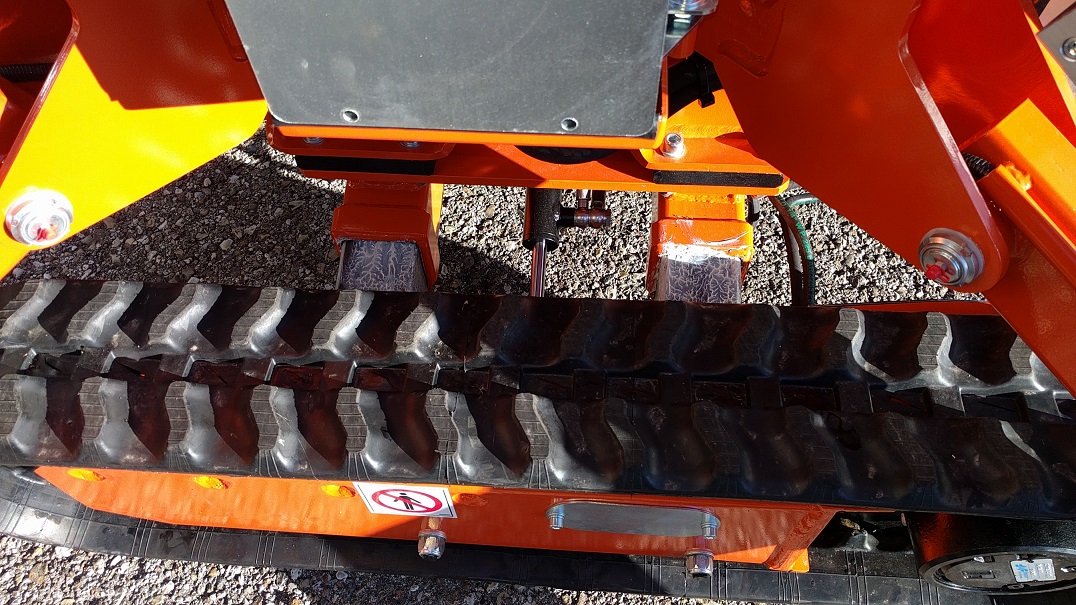

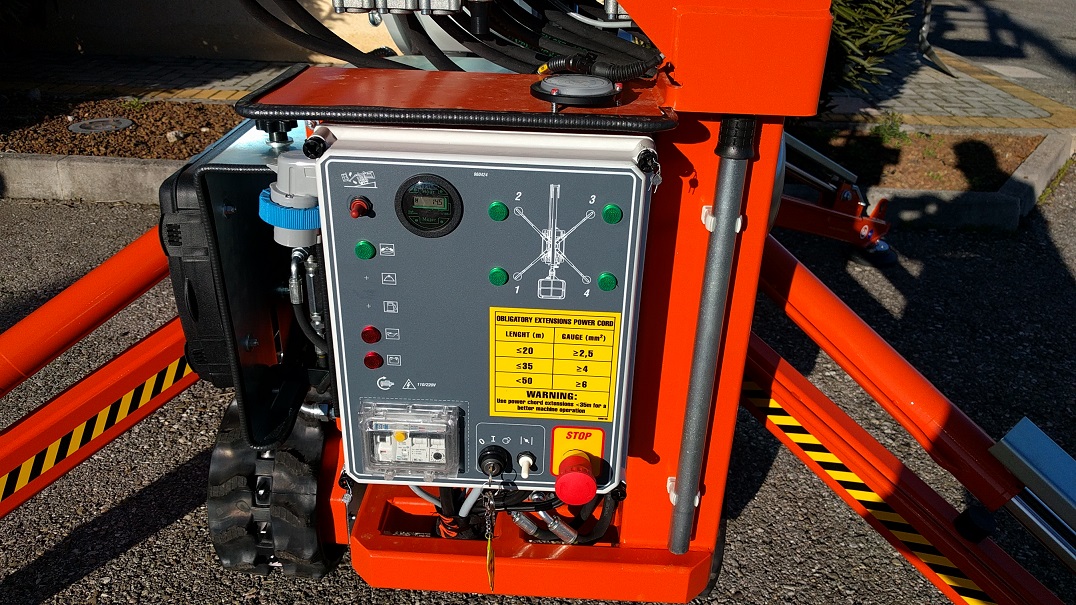

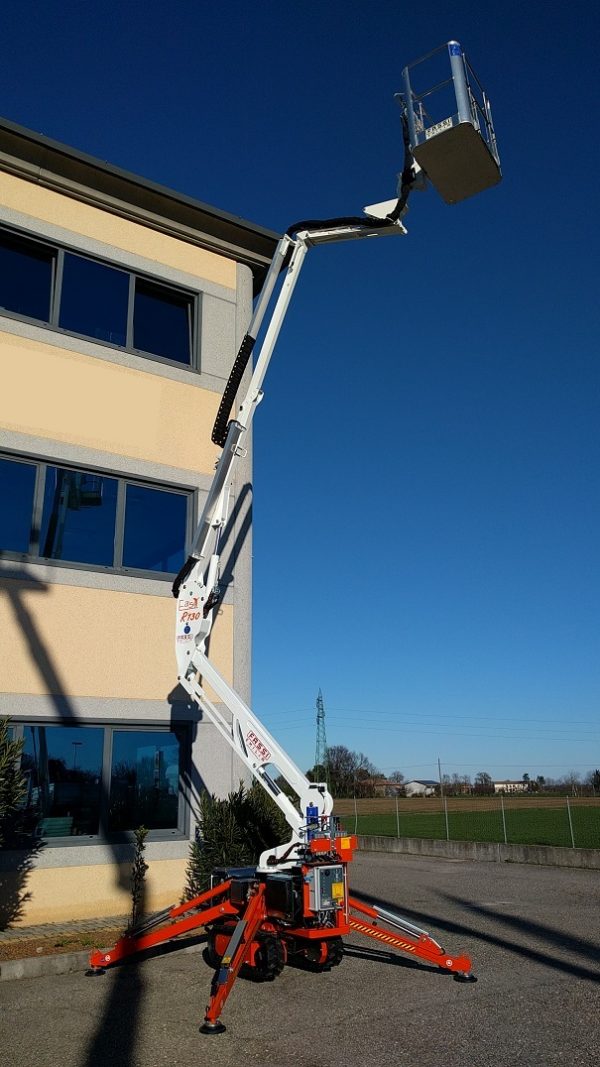

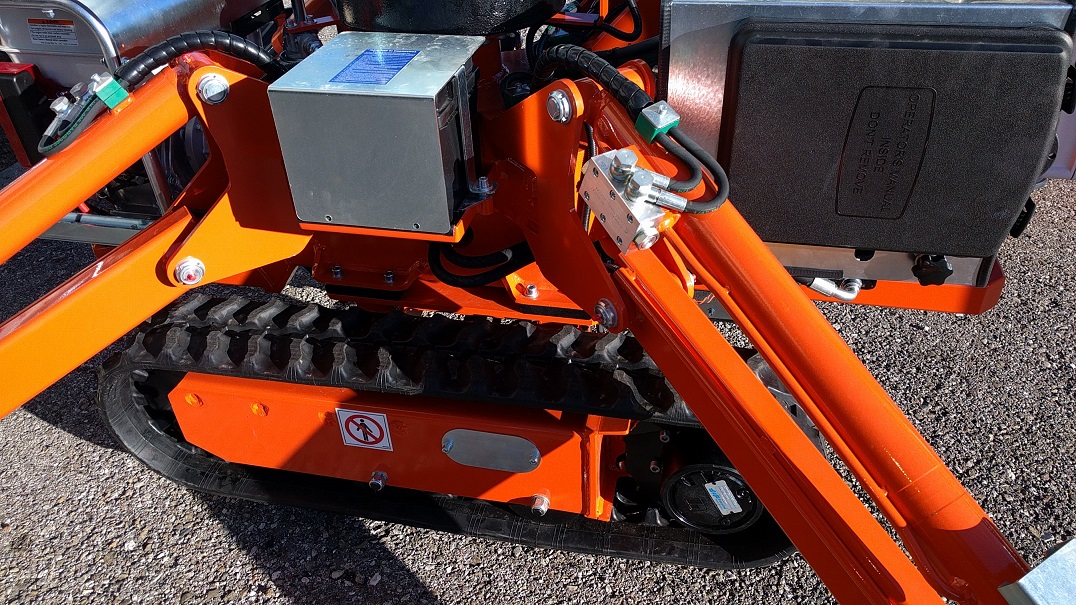

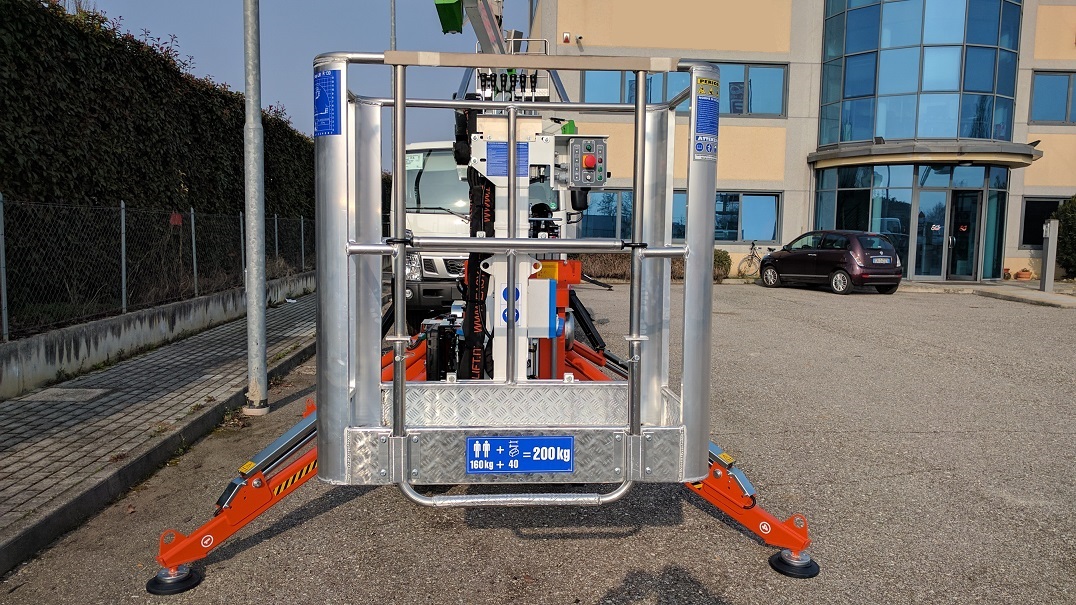

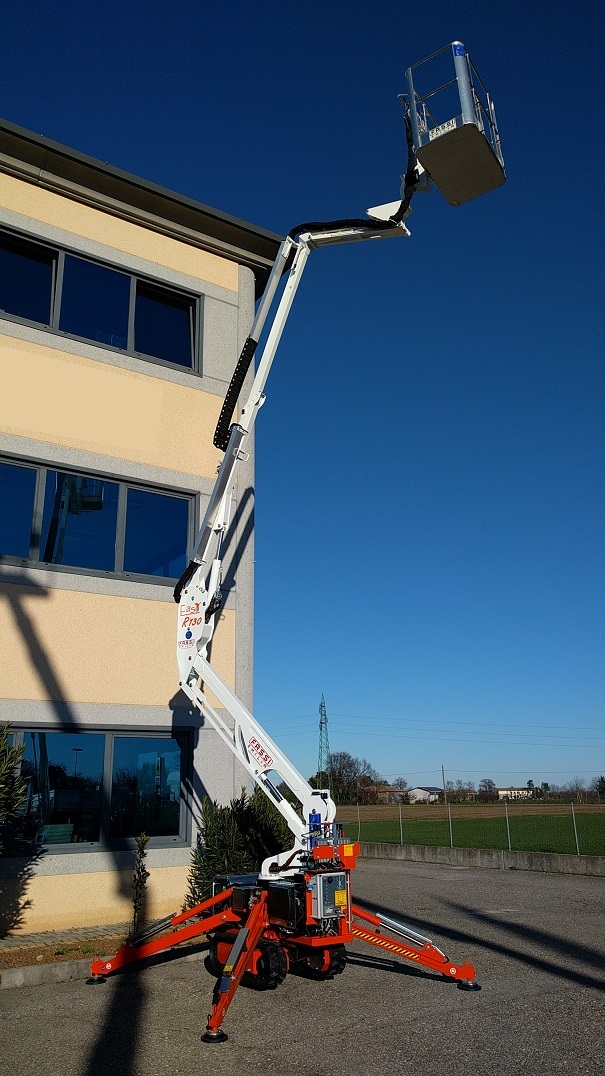

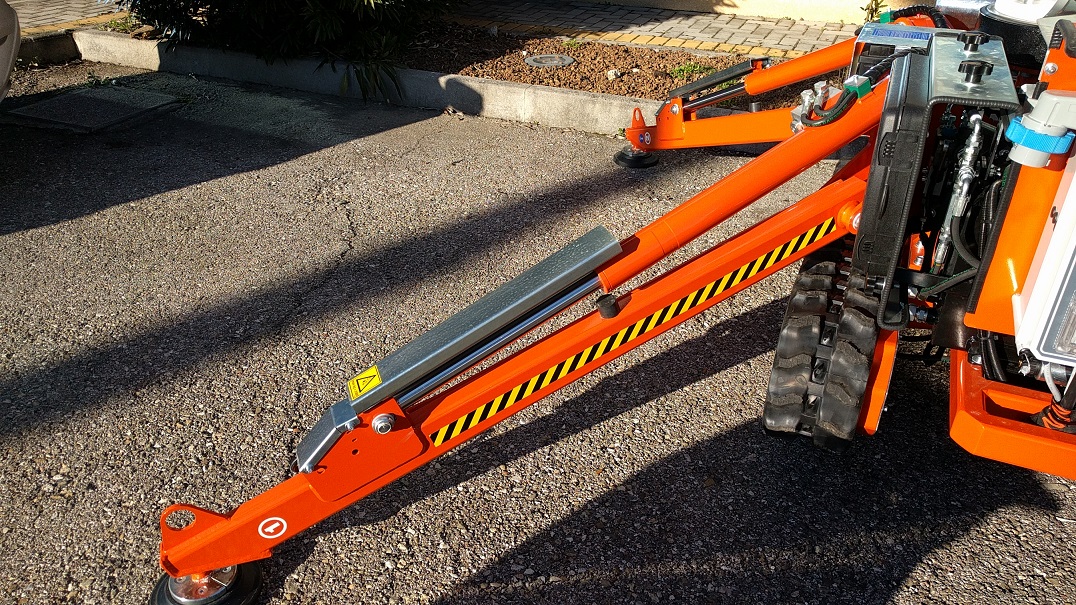

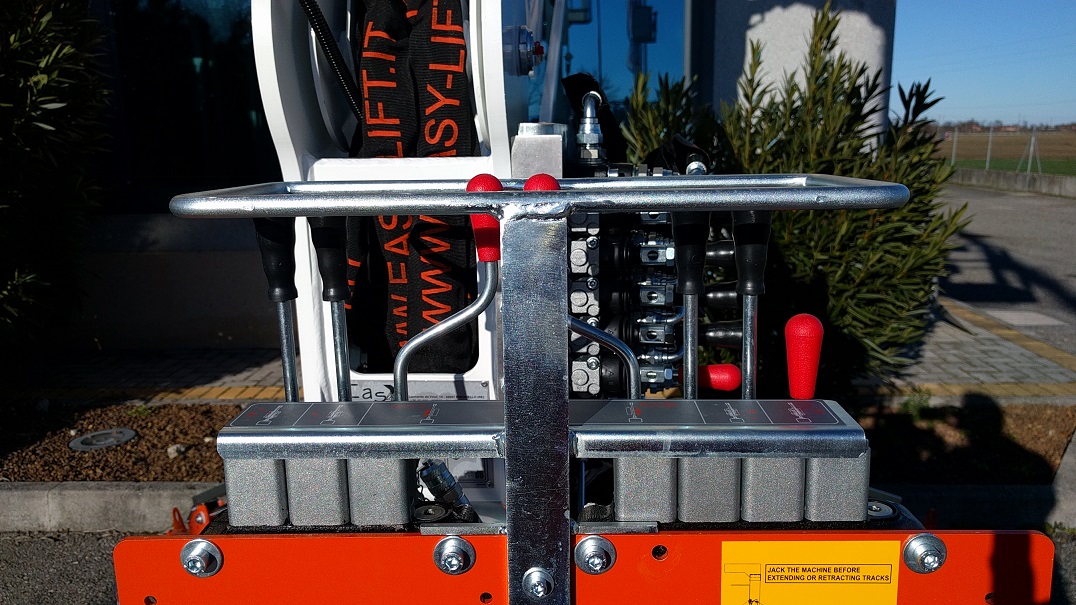

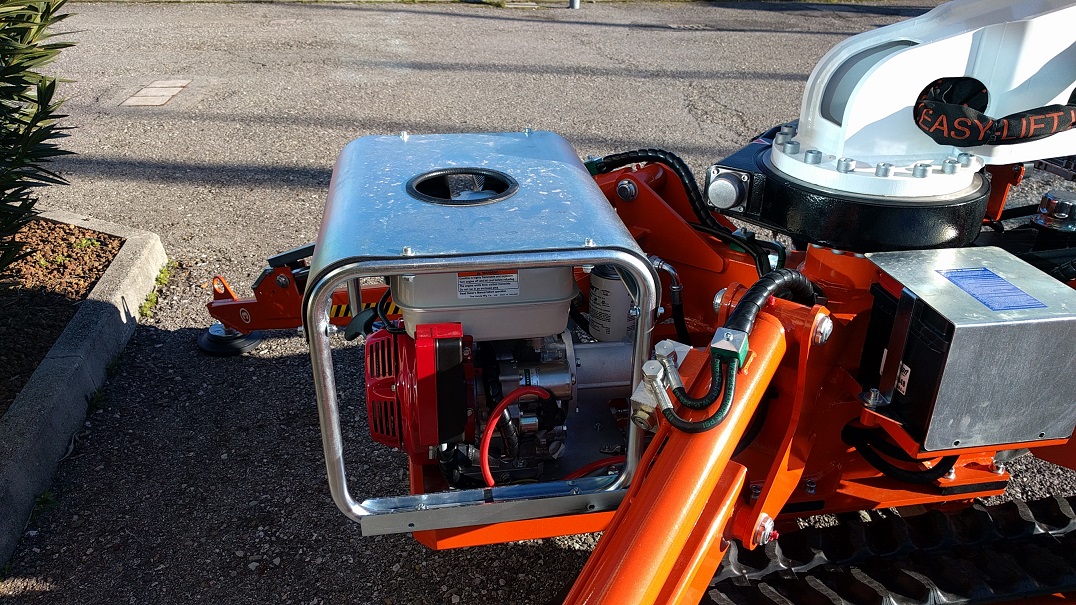

    Tracked aerial platform EasyLift R130 with Maximum working height: 12.20 m, Maximum working outreach (200kg): 6.50 m, Turret rotation: 320°, Aluminium basket 1100x700x1100 H mm with capacity 200 Kg (2 operators), Petrol engine: Honda 9.6 kW, Gradable slope for travel: 30%, Platform total weight: 1700 kg. Outriggers dimensions at ground level: 2600 X 2600 mm, Machine dimensions at rest: length 4250 mm – width 890 mm – height 1980 mm, Hydraulic and proportional controls, Locking valves on cylinders, Acoustic signal during translation, Engine start/stop control from the basket, Hand pump for emergency descent, Safety belt hooks on the basket, Reach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water outlet, 220 V electric outlet, Standard paintwork, CE certification, Owner’s manual.

    AVAILABLE OPTIONALS

    • Hatz Diesel Engine 7.3 kW
    • Working beacon on the basket
    • Inclinometer with acoustic alarm
    • 4 stabilizer plates 400x300x20 mm
    • Radio control

    WATCH THE  VIDEOS

    Brand

    Easy Lift
