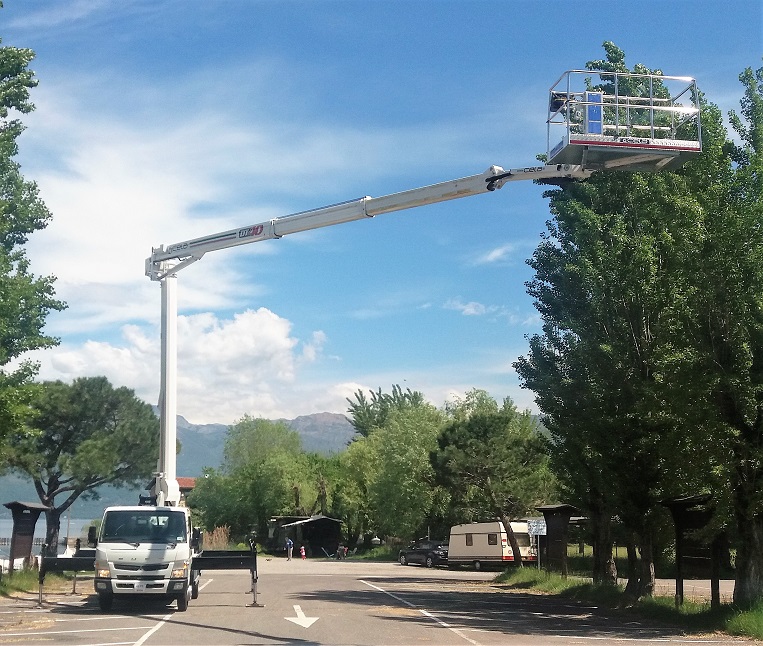

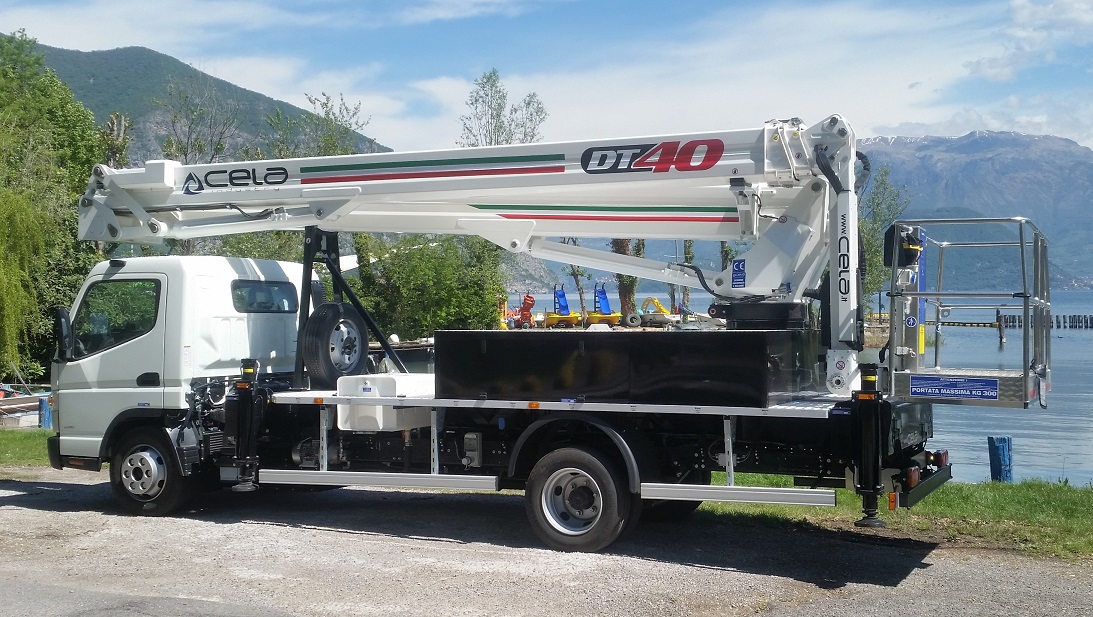

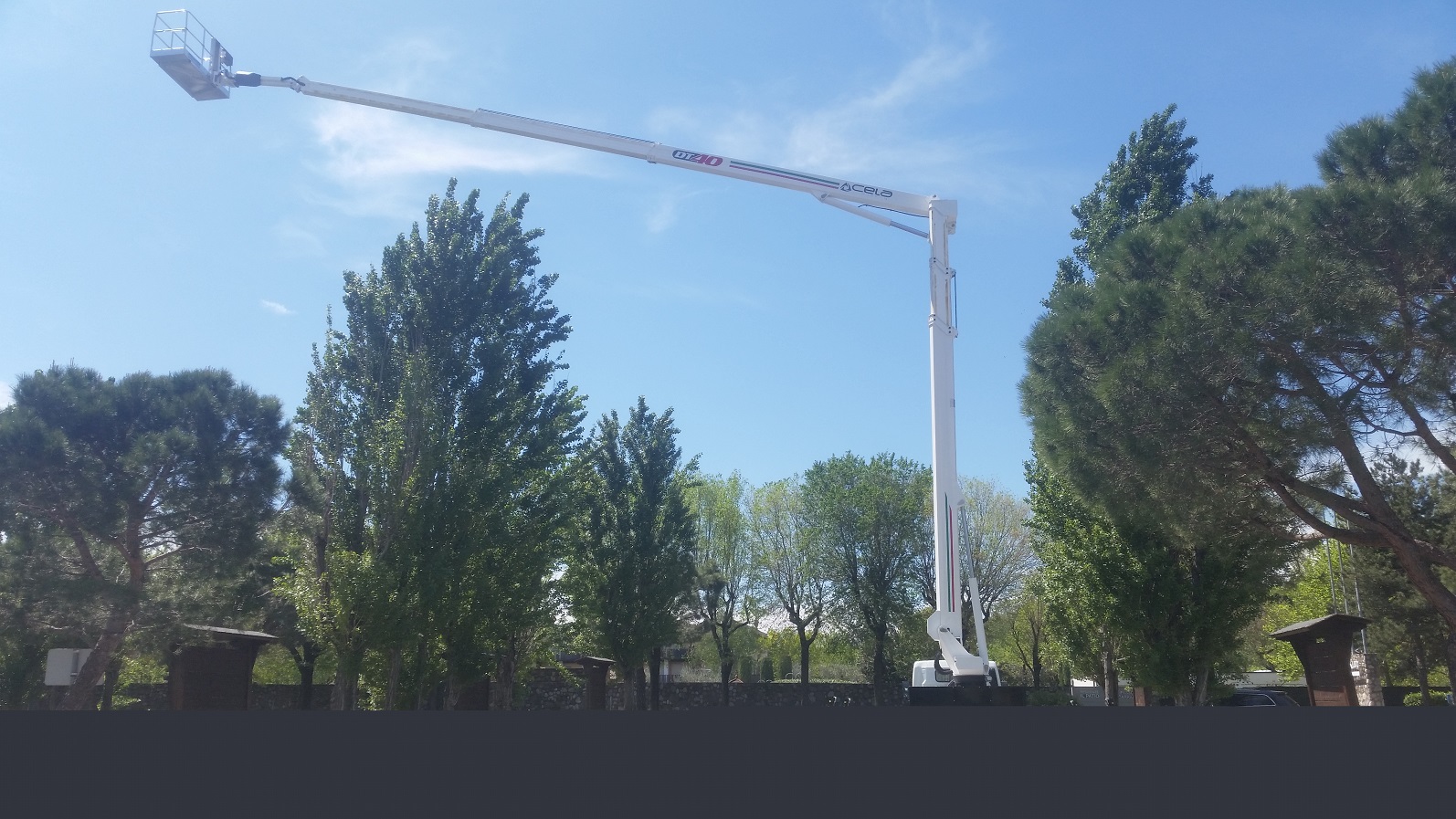

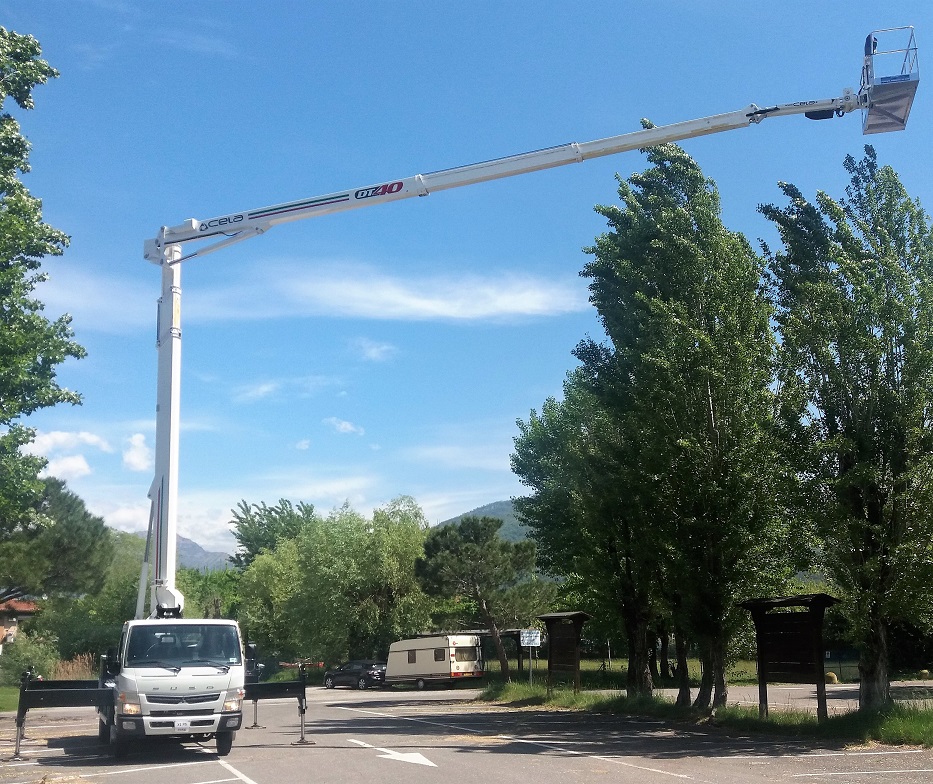

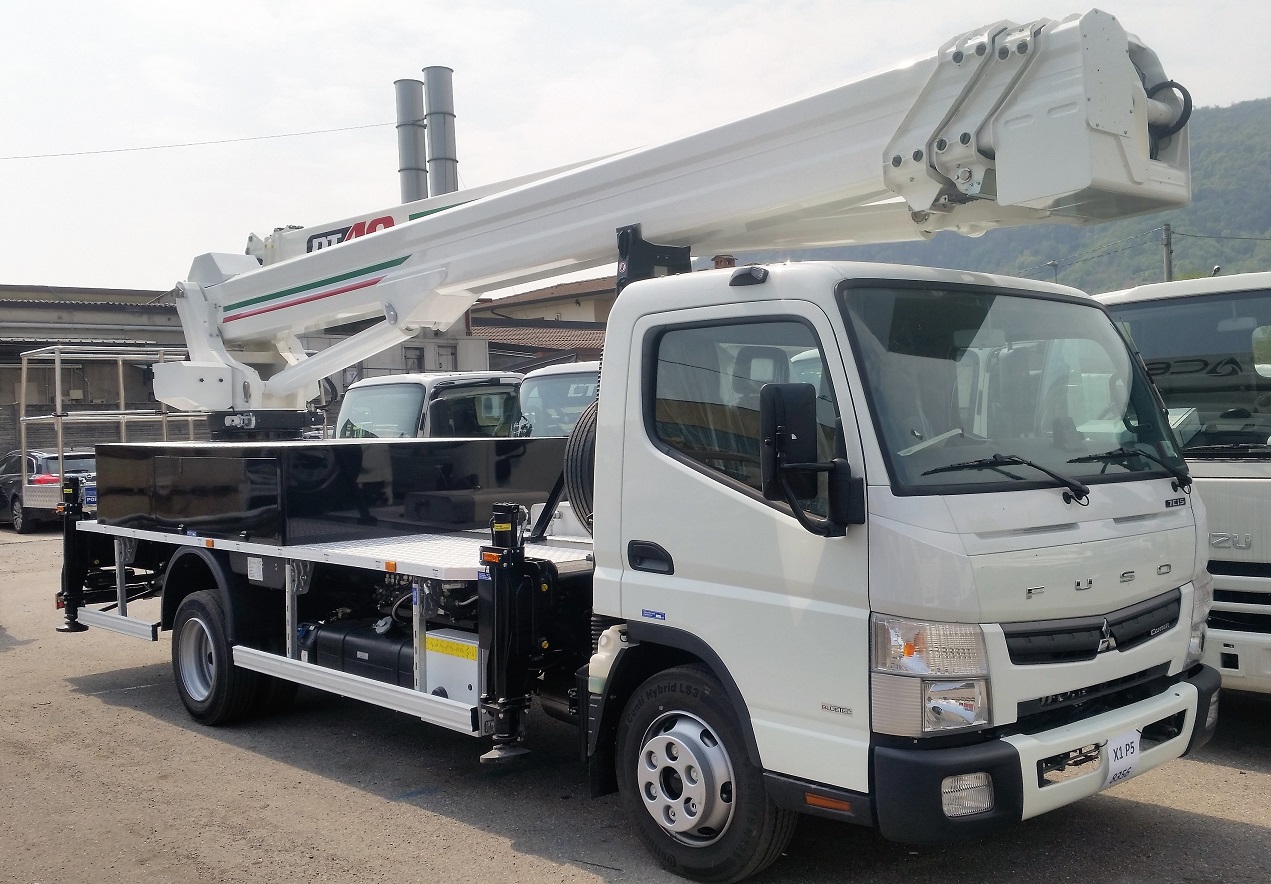

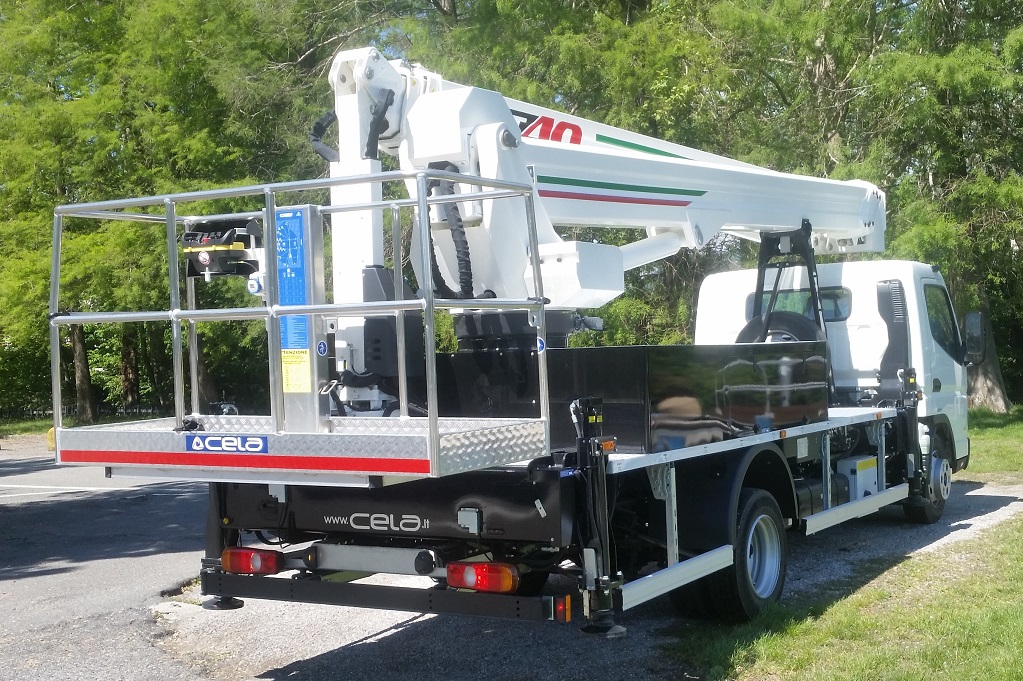

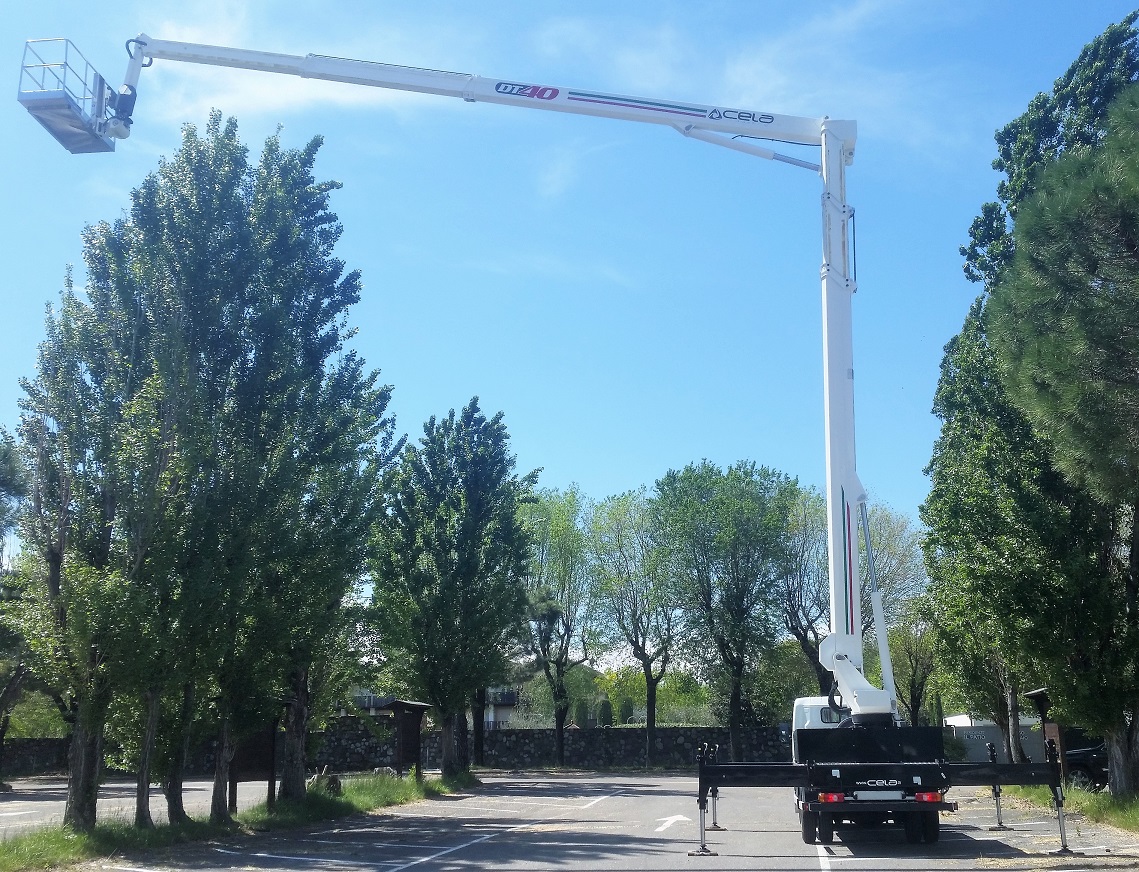

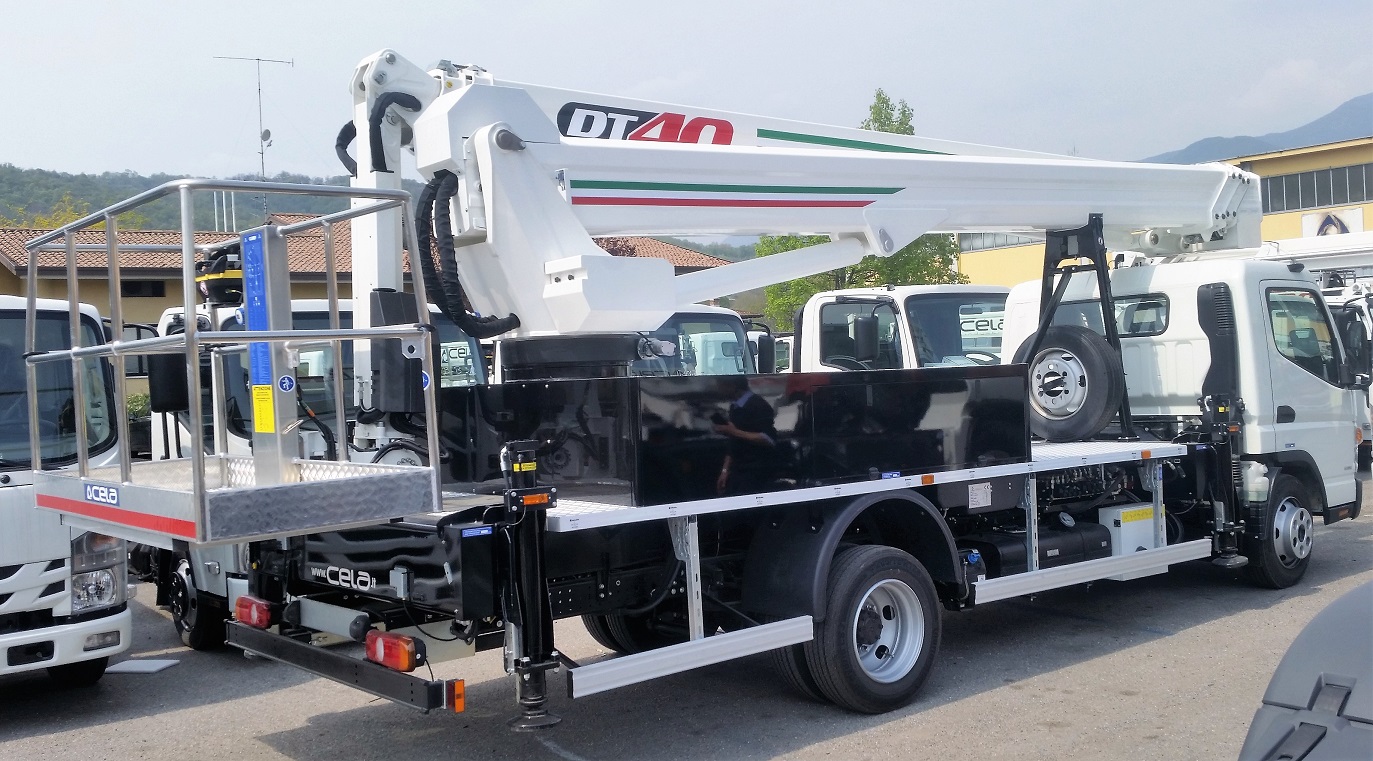

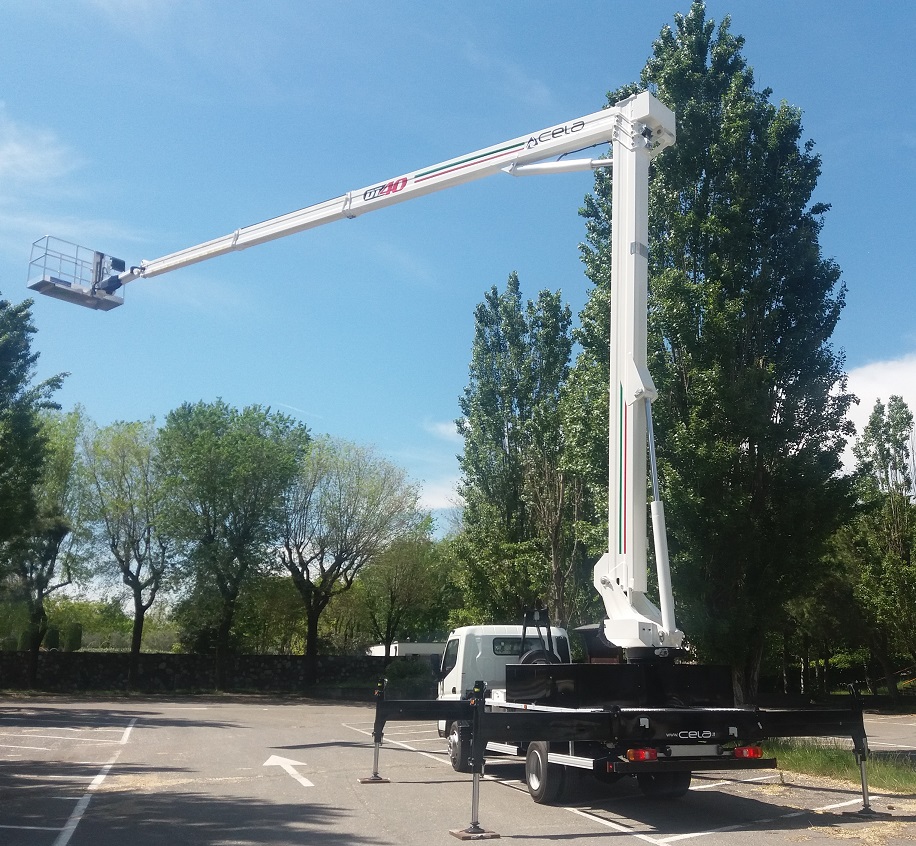

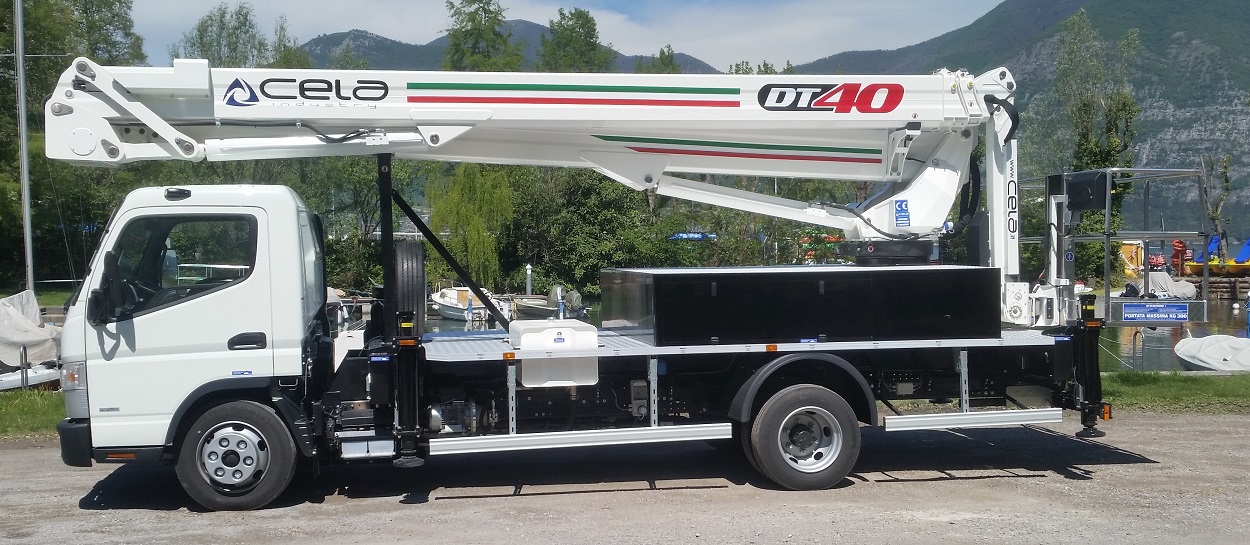

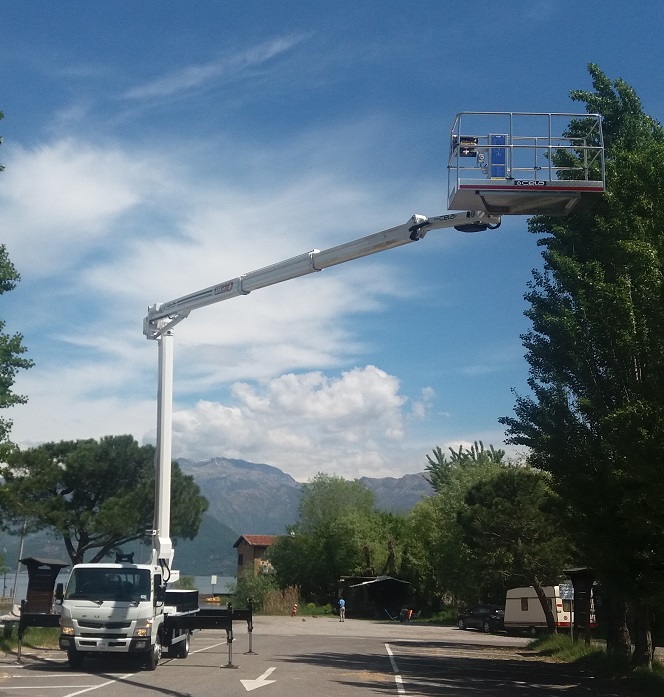

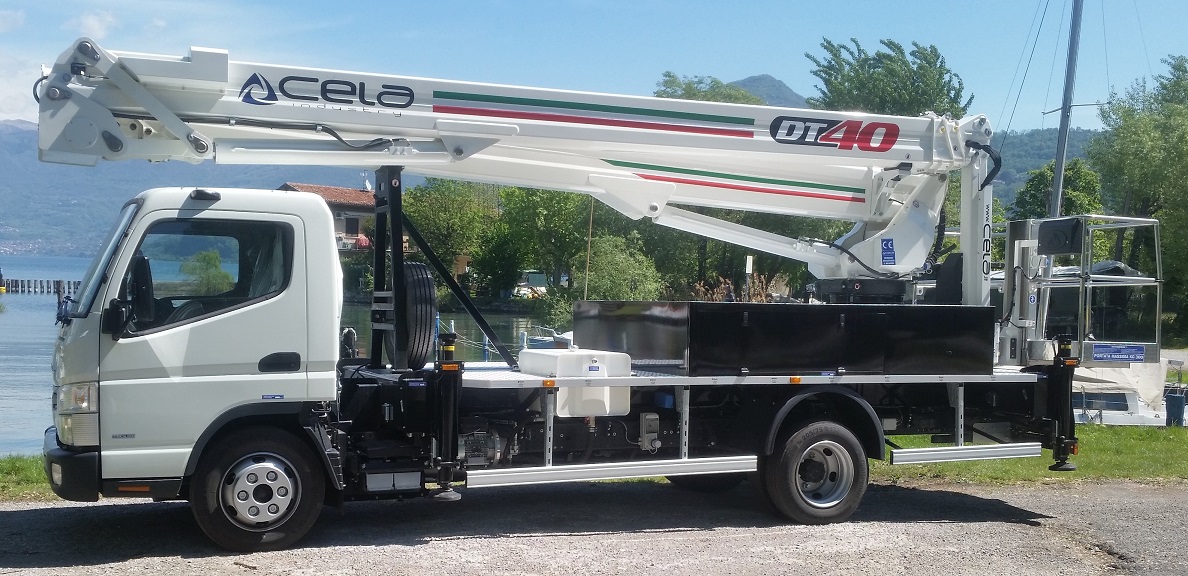

DT 40 AERIAL PLATFORM ON 6 TONS PTT VEHICLE WITH OVERHEAD DISCHARGE

Cela DT40 aerial platform with high altitude landing. Configuration for Industry 4.0 for access to concessions.

DOWNLOAD THE DEPLIANT

BROCHURE DT40

Richiedi info

    RICHIEDI INFO SUL PRODOTTO

    * Ho letto l'informativa sulla privacy e Autorizzo al trattamento dati

    Description

    Maximum working height mt. 39.50; Platform height mt. 37.50. Maximum working outreach with extended crossbars mt. 17. Turret rotation 1140, Hydraulic basket rotation 85°+85°; Maximum capacity in the basket kg. 300; Basket dimensions mm. 1800x700x1100. Installation on vehicles with 7.5 ton PTT. Minimum. Electronic controls. Aerial work platform with double telescopic arm with compensated proportional electro-hydraulic controls Aluminum basket with rapid disassembly 2000 x 700 x h. 1100 mm. Basket with maximum load capacity of 300 kg.; Engine start/stop control from basket; Control from basket for acoustic warning device. Electronically controlled proportional electro-hydraulic controls. 230V electrical connection in the basket. Electric hour counter connected to PTO. Anti-collision control between arms and vehicle cab. Automatic stabilization device. Differentiated filtering hydraulic system with high-efficiency filters. Manual emergency pump. Basket rotation ±85°. Turret rotation 1440°. Command and control system in CAN BUS; multi-axle system for visual stabilization control. Remote assistance via new Cela Remote Service System CRSS. Hydraulically extendable front and rear crossbars. Flanged block valves on cylinders. Painting of telescopic arms and beams: Blue RAL 5013 or White RAL 9010. Painting cylinders, turret and connecting rods RAL 9010. Frame painting Blue RAL 5013 or Black. User training course. Suitable documentation for Landing at Height Certification. Certified Lifting Hook, Automatic Locking, Automatic Stabilization and Remote Connection as standard to access Industry 4.0 benefits.

    AVAILABLE OPTIONALS

    • 2400 mm aluminum nacelle replacing the 1800 mm.
    • Air/water inlet in nacelle
    • Additional 700 mm aluminum carry cage (For pruning work)
    • Brushes on main arms (For pruning work)
    • Electric winch with differentiated capacities (see working area)
    • Approved platform for loading and unloading materials with folding tailgates
    • Fixed intercom system

    WATCH THE VIDEOS





    Brand

    Cela
