CELA SPYDER DT 30 TRACKED AERIAL PLATFORM

Piattaforma cingolata 28 mt. piano di calpestio. 30 mt di altezza.

SCARICA IL DEPLIANT

BROCHURE SPYDER_DT30

Richiedi info

    RICHIEDI INFO SUL PRODOTTO

    * Ho letto l'informativa sulla privacy e Autorizzo al trattamento dati

    Description

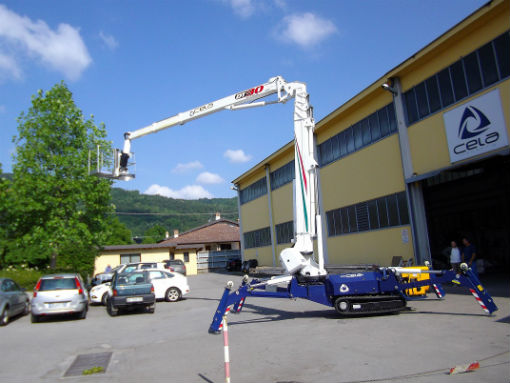

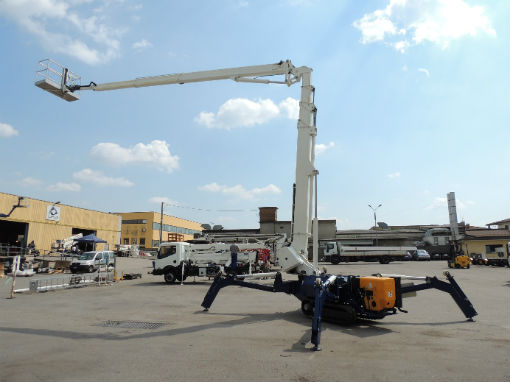

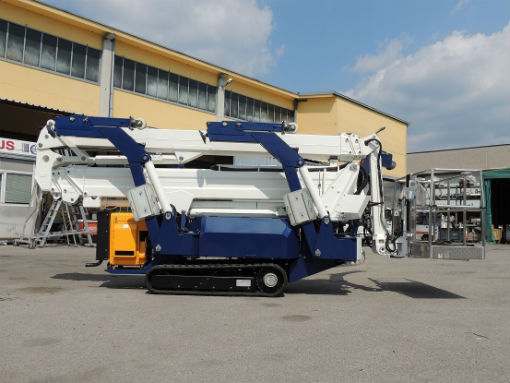

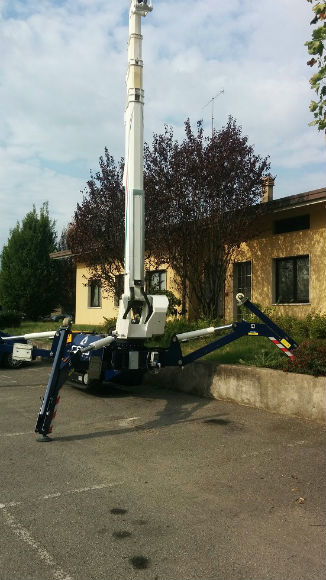

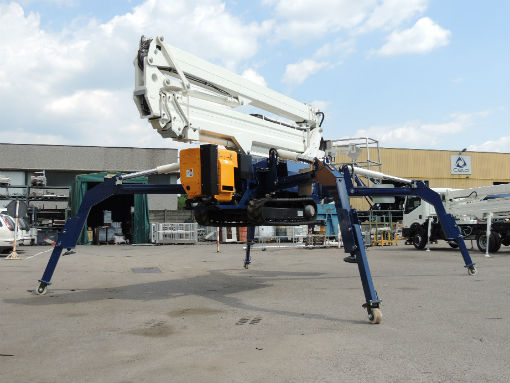

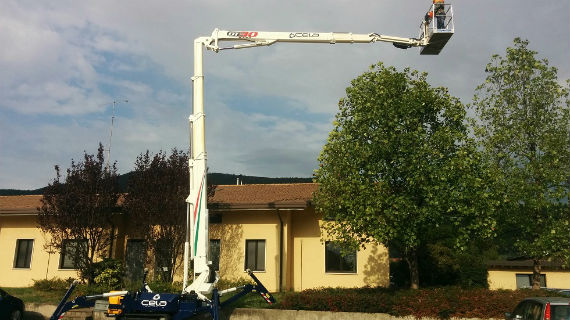

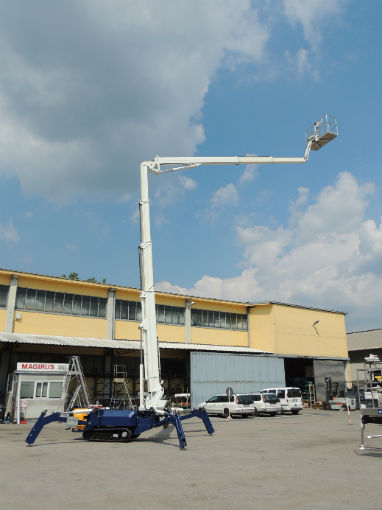

    Telescopic self-propelled aerial work platform equipped with telescopic jib with several extensions, Maximum working height mt 30,20, Platform height mt 28,20, Maximum working outreach with extended crossbars mt 15,50, Turret rotation 360° not continuous, Maximum capacity in the basket kg 225 complete with : Self-loading carriage (H. max. 130 cm), Quick-removing aluminum basket 1800 x 700 x h.1100 mm, Basket with maximum load capacity of 225 kg, Engine start/stop control from basket, Control from basket for buzzer, Electro-hydraulic proportional controls electronically controlled via can-bus, 230V electric connection in basket, Electric hour meter, Automatic stabilization device, 230V/50Hz, single-phase electric pump controlled by inverter with battery charger, Differentiated filtering hydraulic system with high-efficiency filters, Clearance lights on stabilizers, Hatz type diesel twin-cylinder engine ,N. 4 steel ground support plates, Manual emergency pump, Radio control, Basket rotation ±90°,Turret rotation 365°,Pivot point at 16 meters, Multi-axle system for visual stabilization control.

    Remote assistance via new Cela Remote Service System CRSS, Flanged block valves on cylinders Suitable documentation for Certification for landing at height.

    AVAILABLE OPTIONALS

    • 2400 mm aluminum nacelle replacing the 1800 mm.
    • White non-marking tracks
    • Air/water inlet in nacelle
    • Additional 700 mm aluminum carry cage (For pruning work)
    • Brushes on main arms (For pruning work)
    • Electric winch with differentiated capacities (see working area)
    • Approved platform for loading and unloading materials with folding tailgates
    • Fixed intercom system

    WATCH THE VIDEOS

    Brand

    Cela
