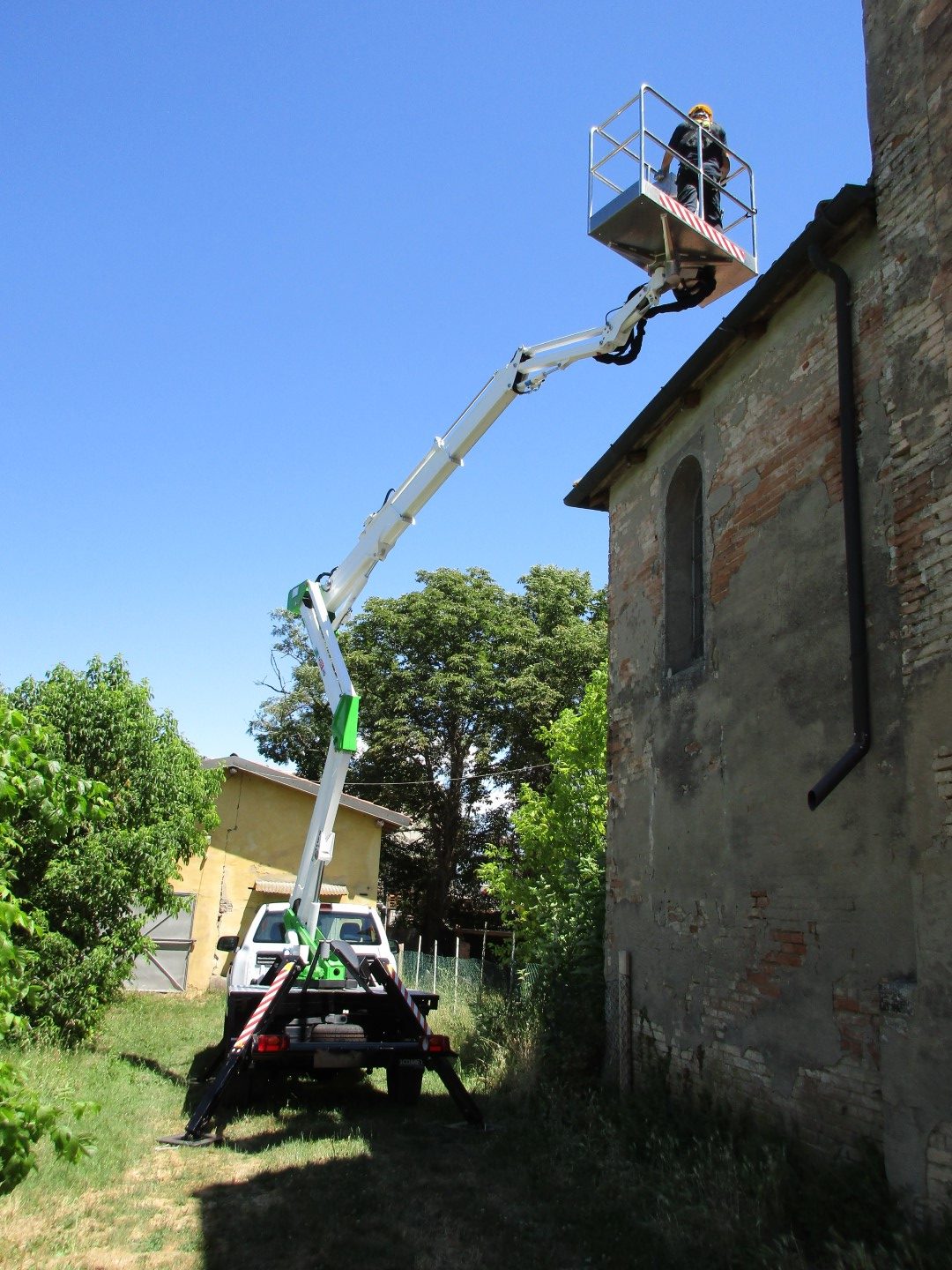

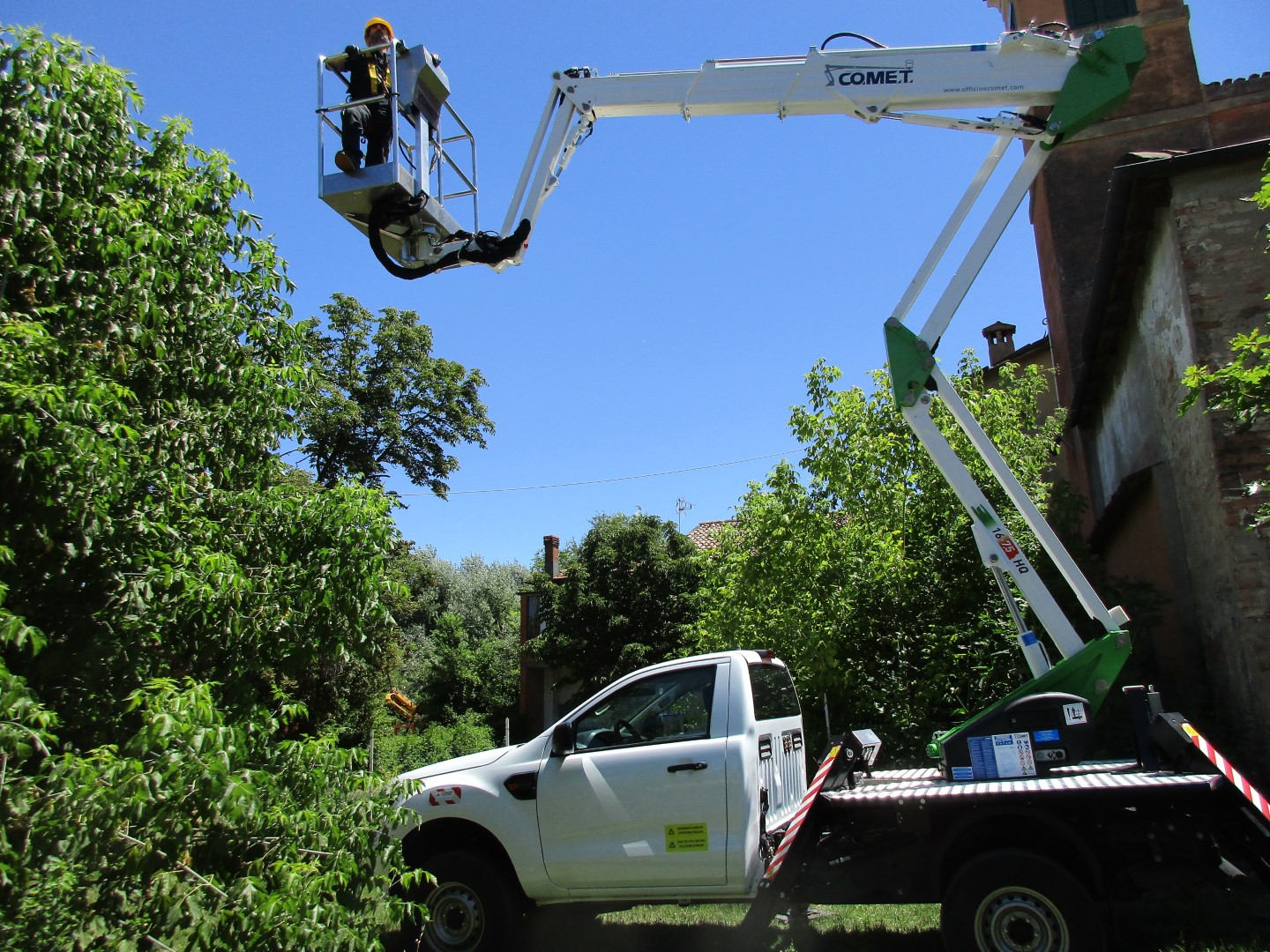

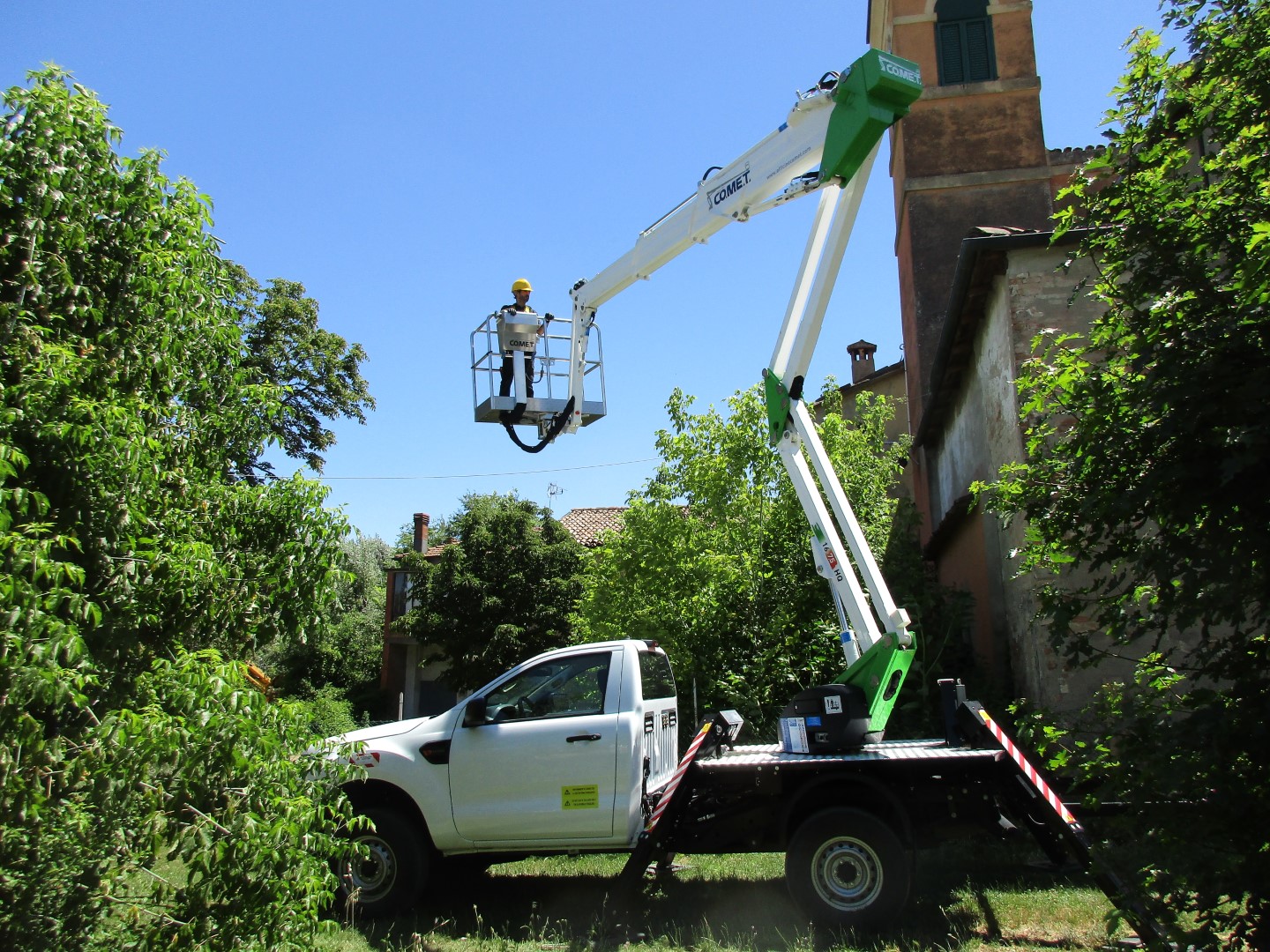

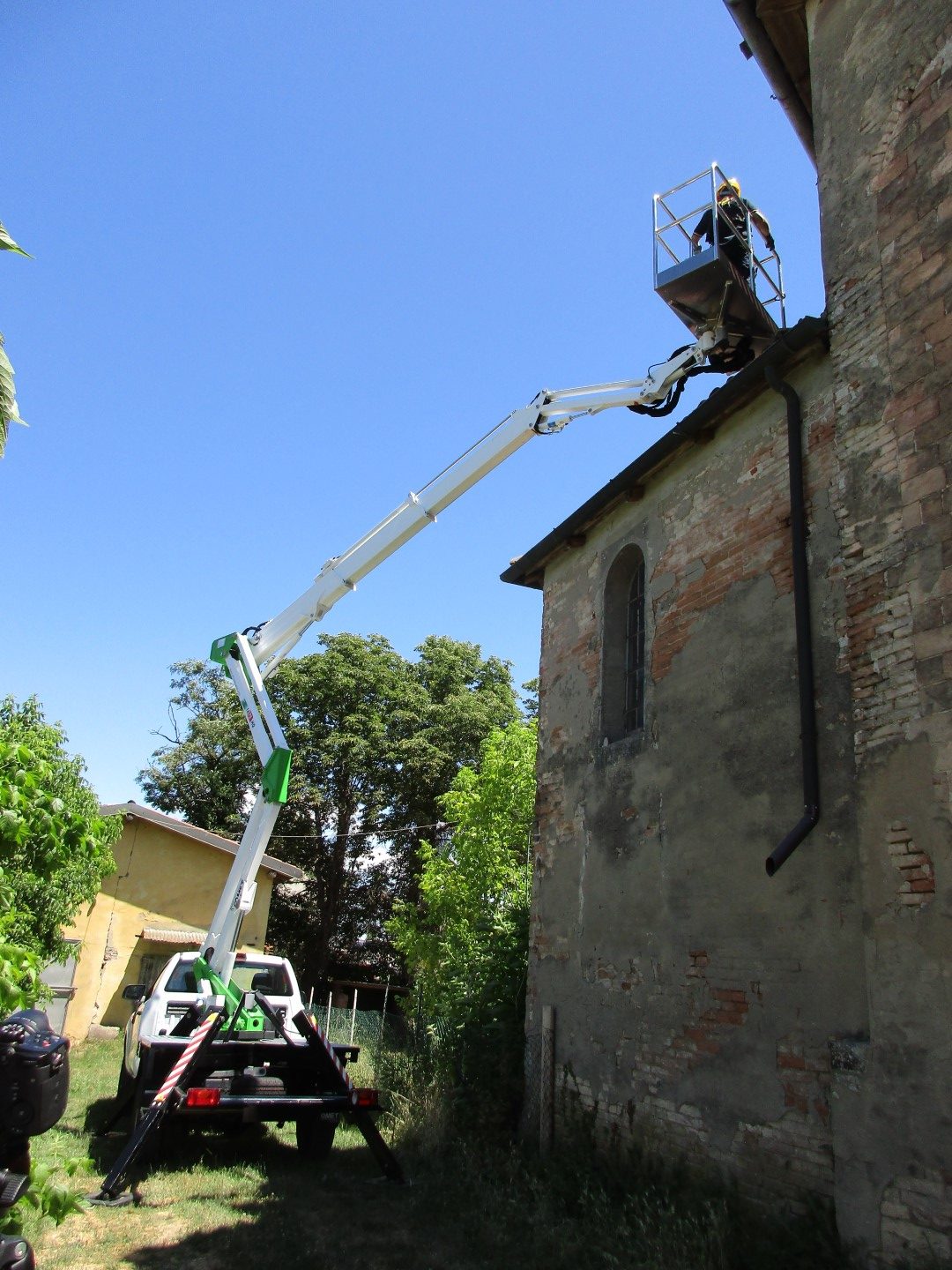

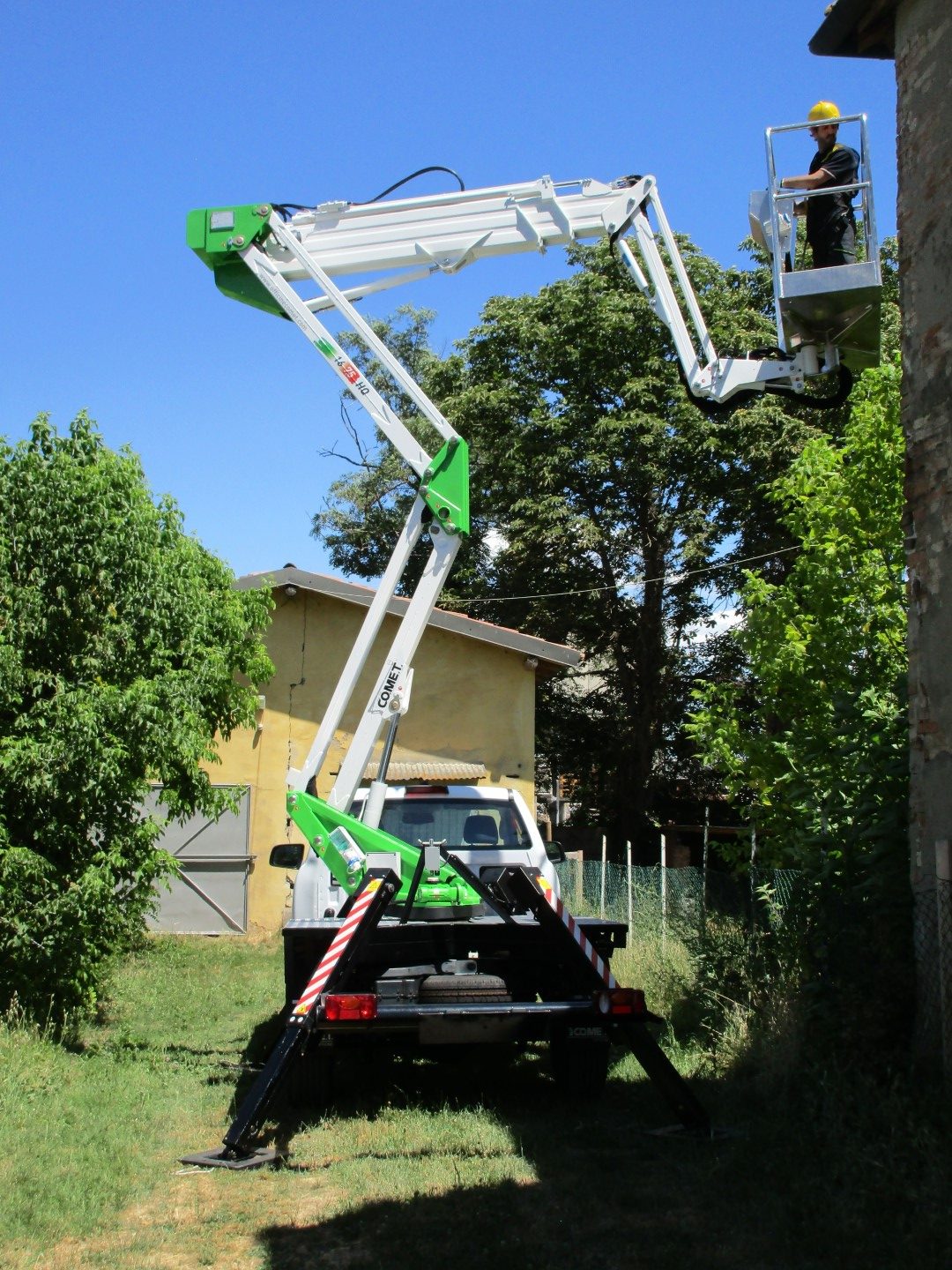

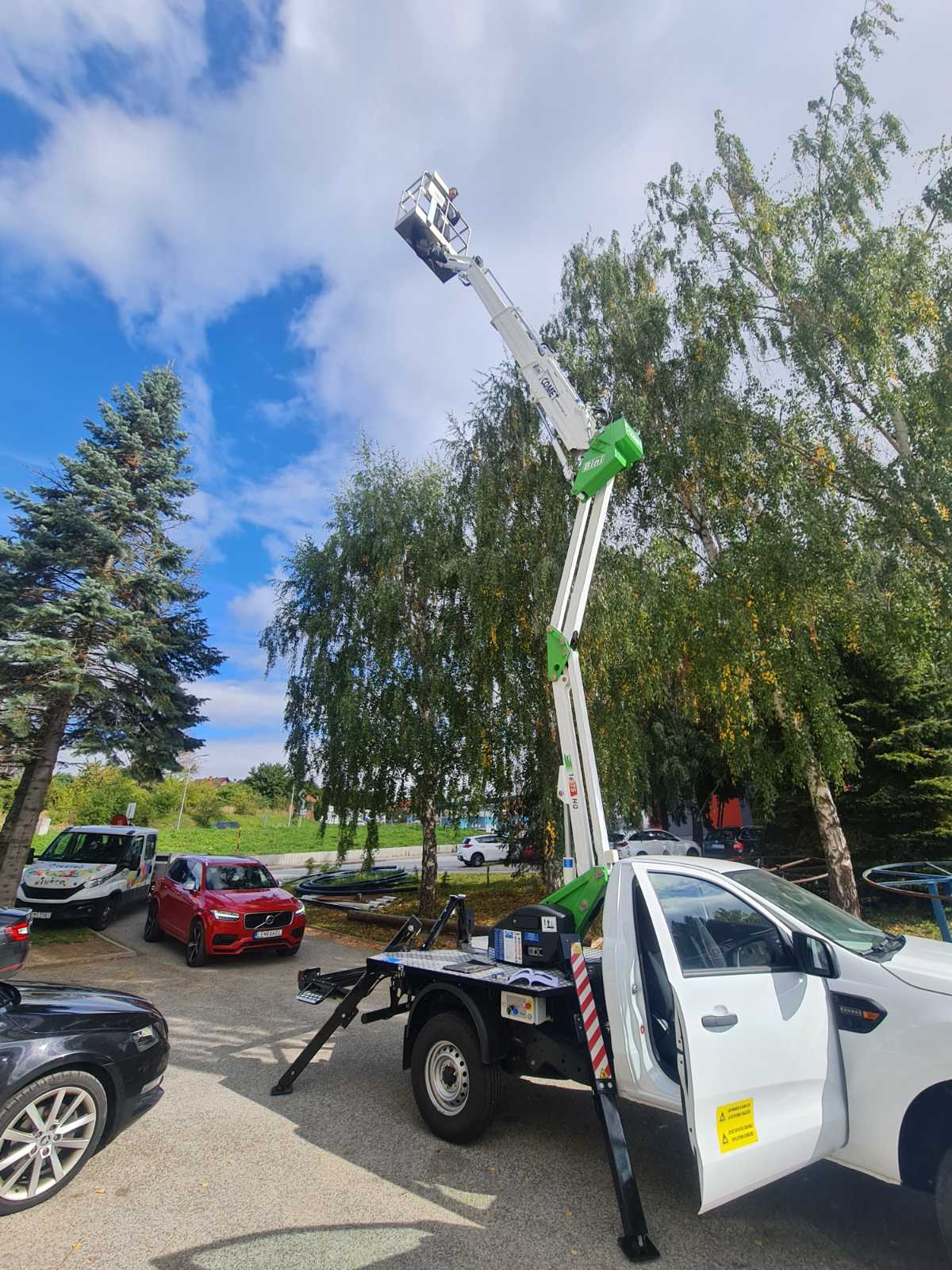

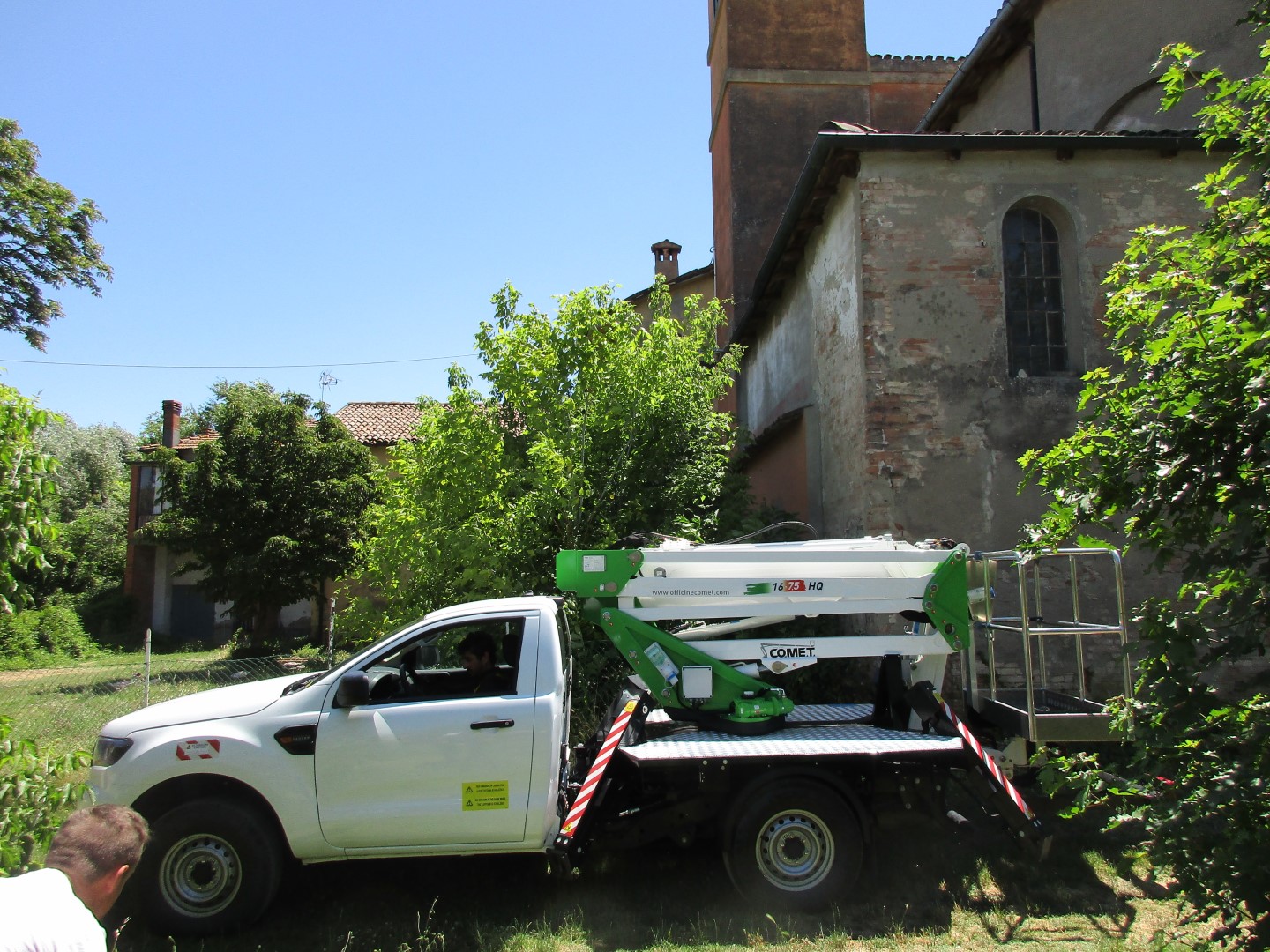

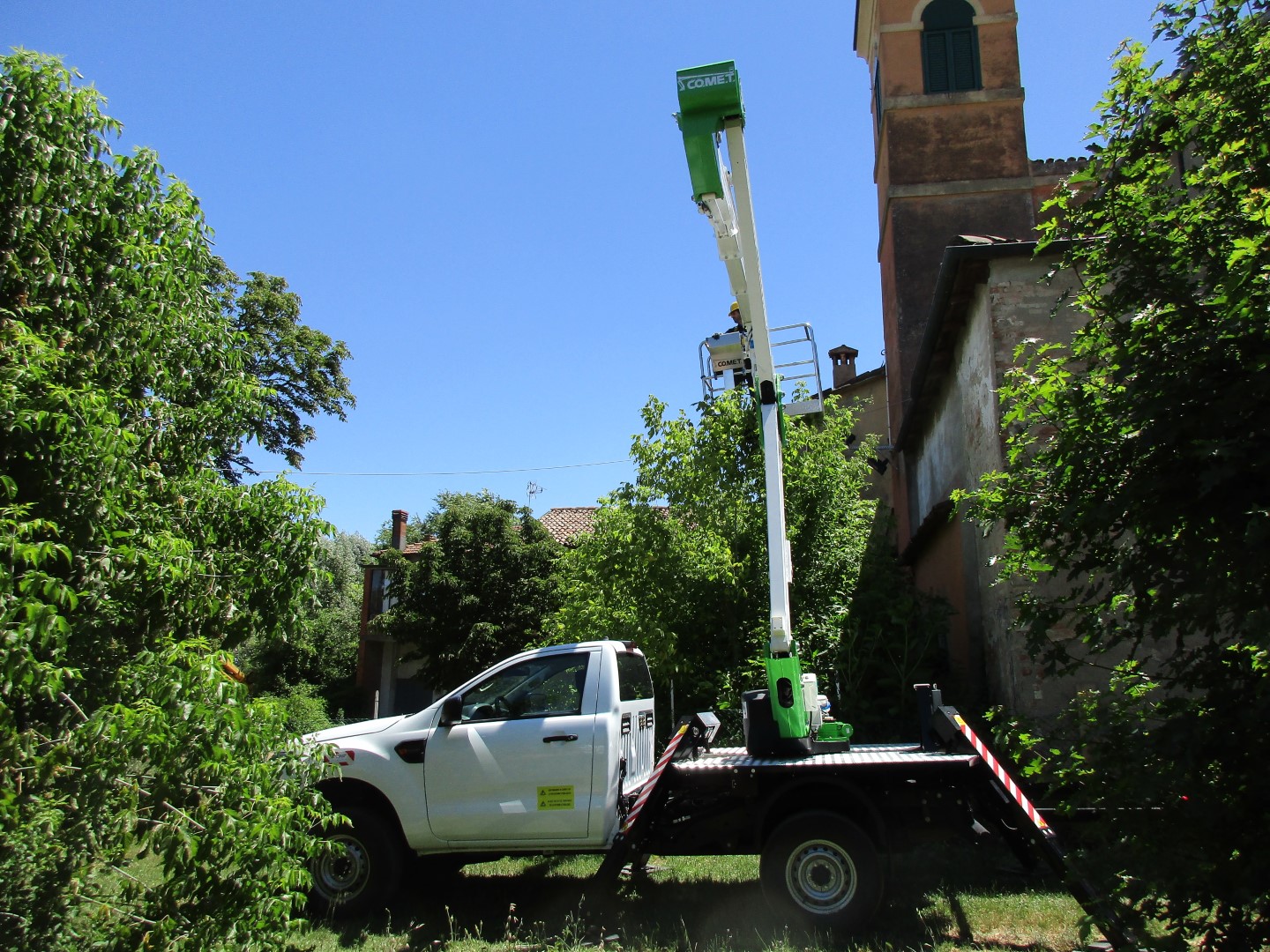

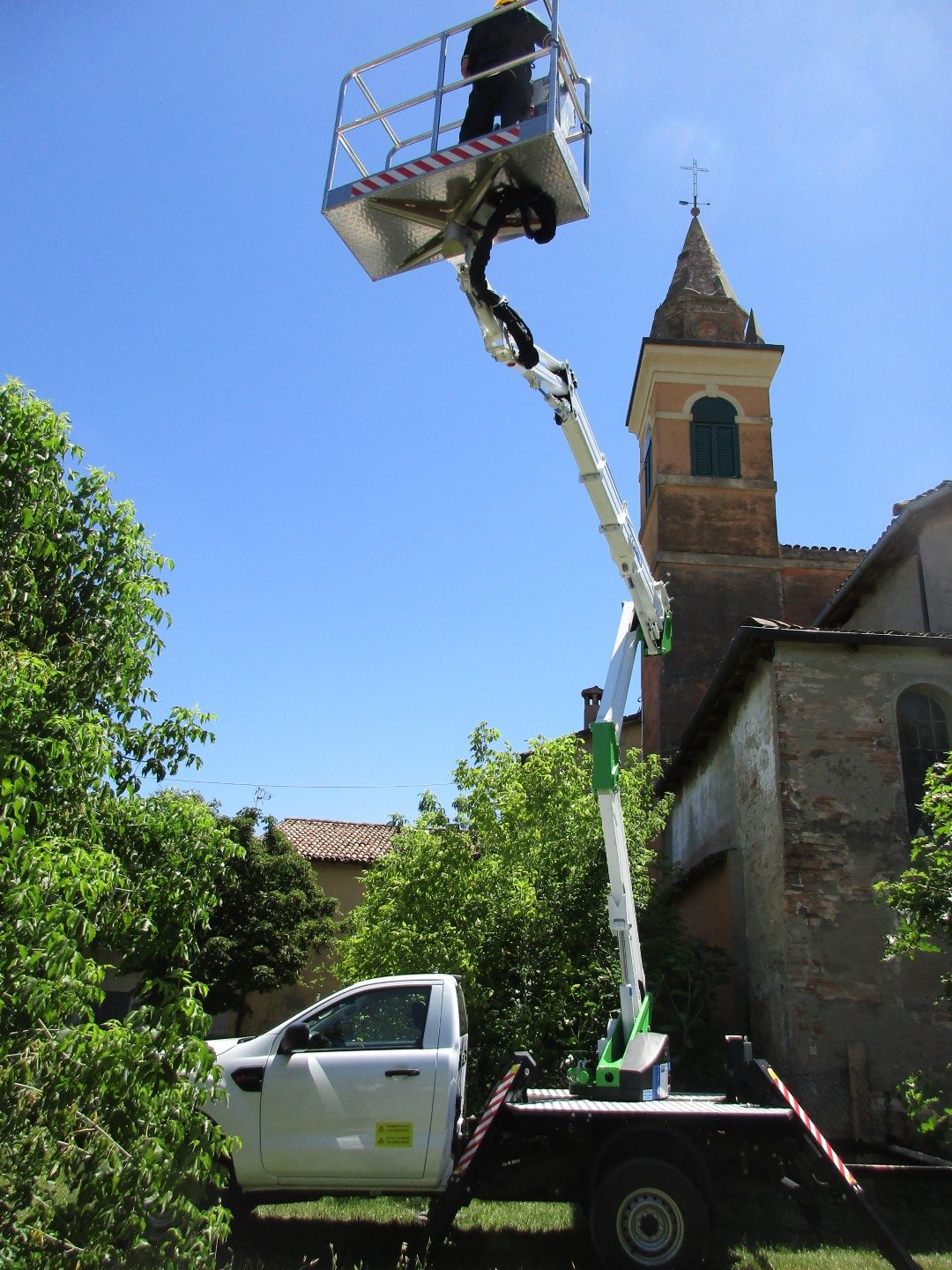

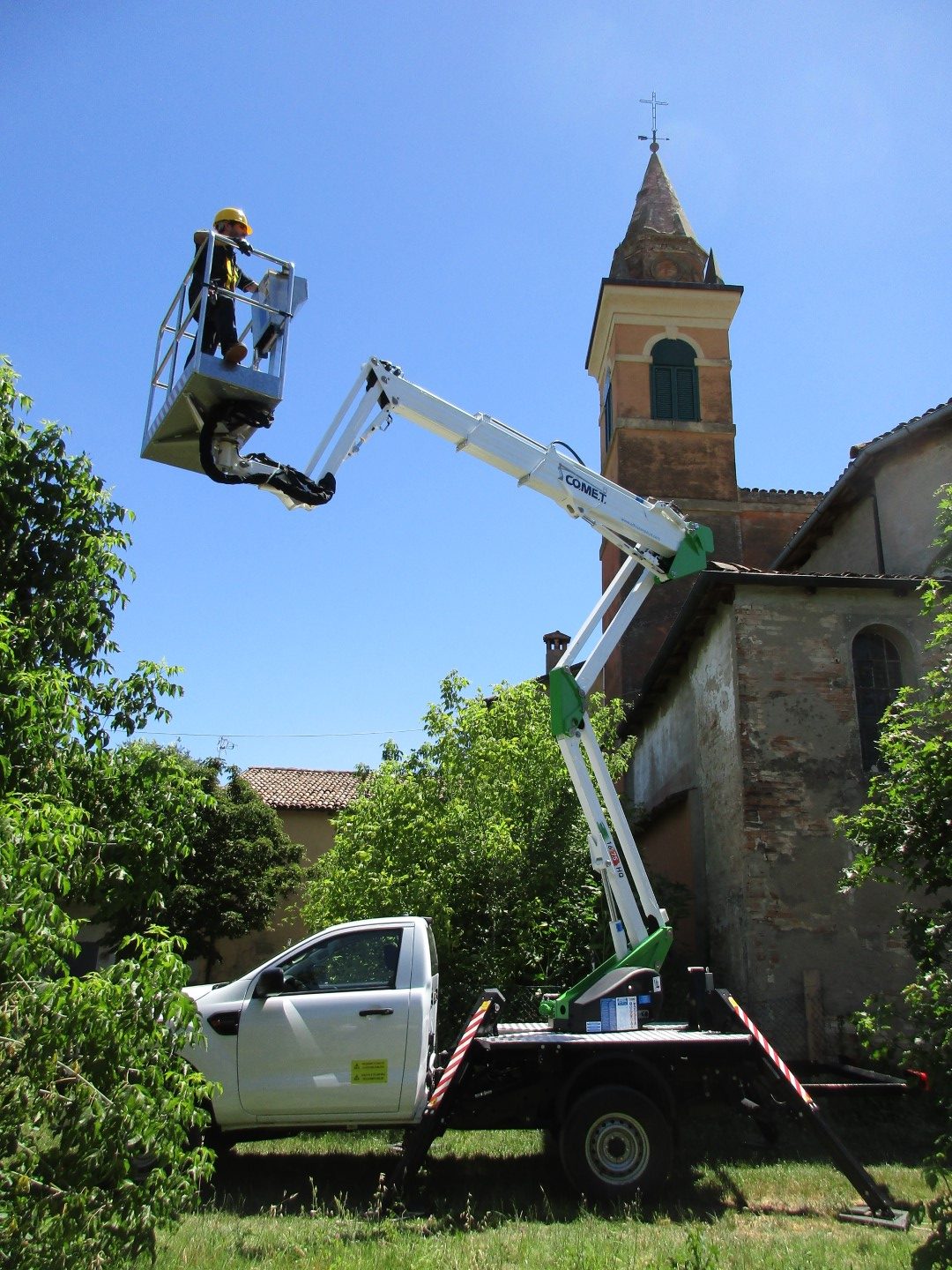

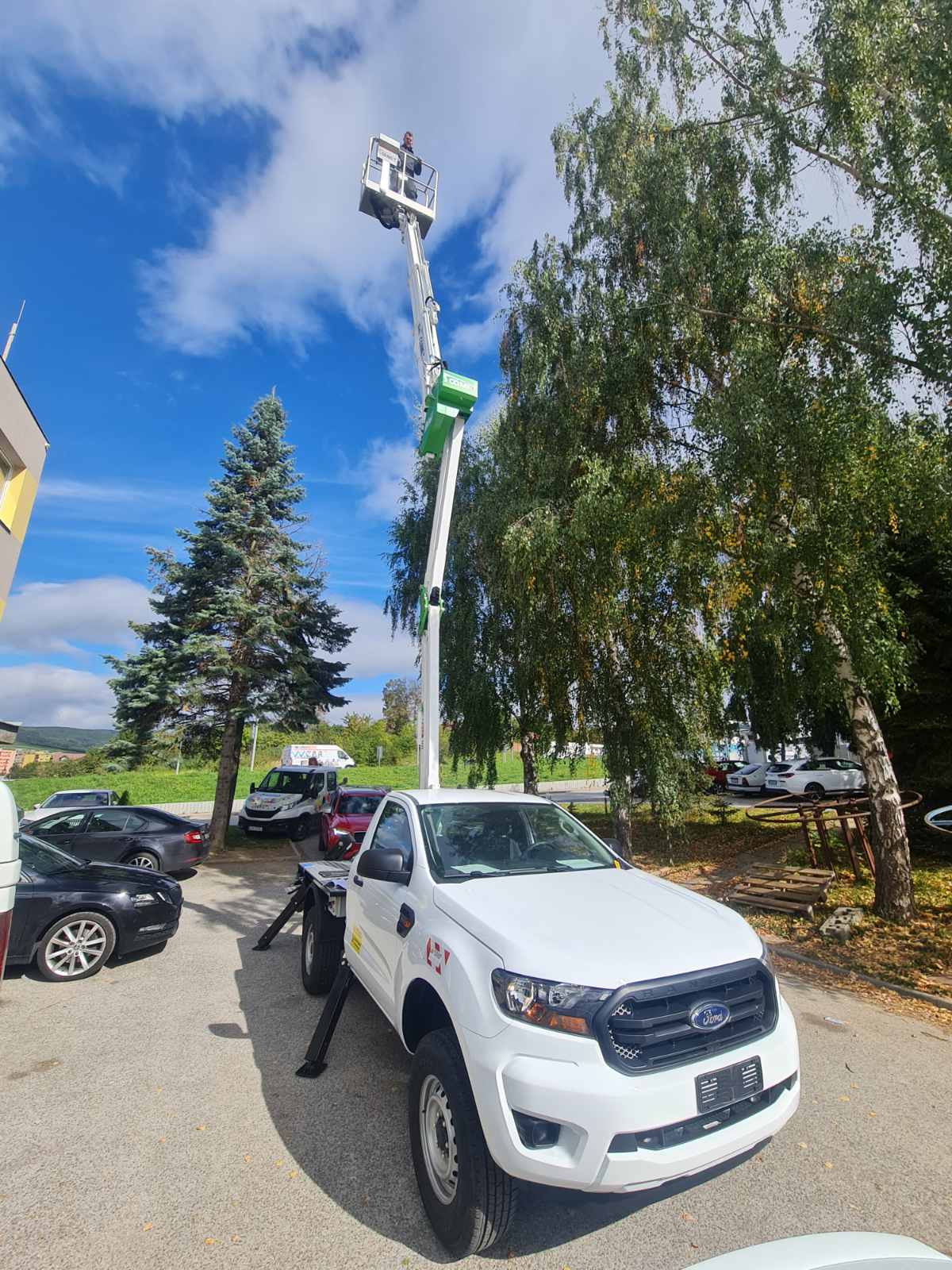

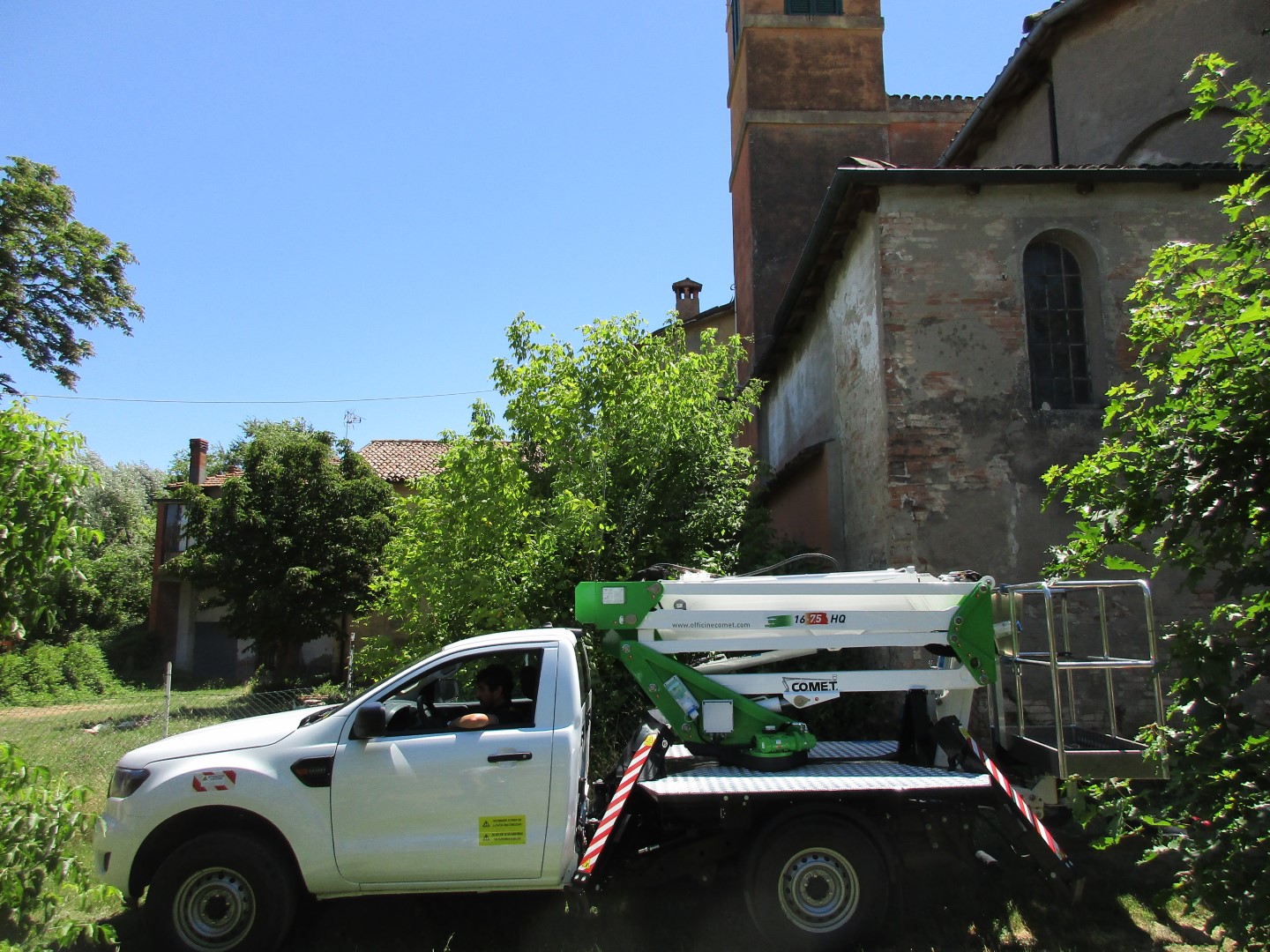

12/16 METERS AERIAL PLATFORM ON PICK-UP

Aerial platform from 12 to 16 m. installable on Pick Up, driving license B.

DOWNLOAD THE DEPLIANT

BROCHURE 12-14-16 MT. SU PICK_UP_X4

Richiedi info

    RICHIEDI INFO SUL PRODOTTO

    * Ho letto l'informativa sulla privacy e Autorizzo al trattamento dati

    Description

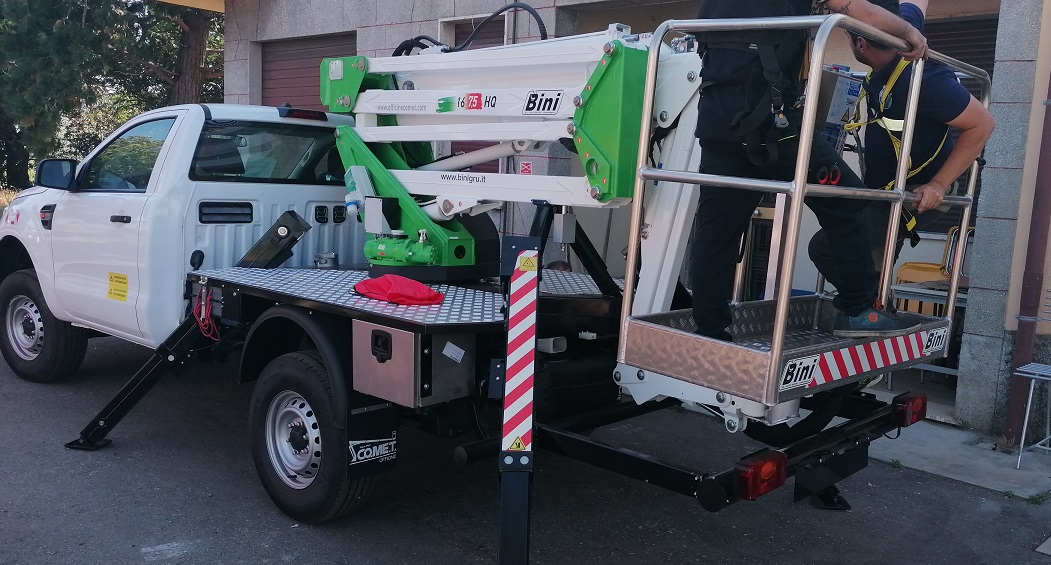

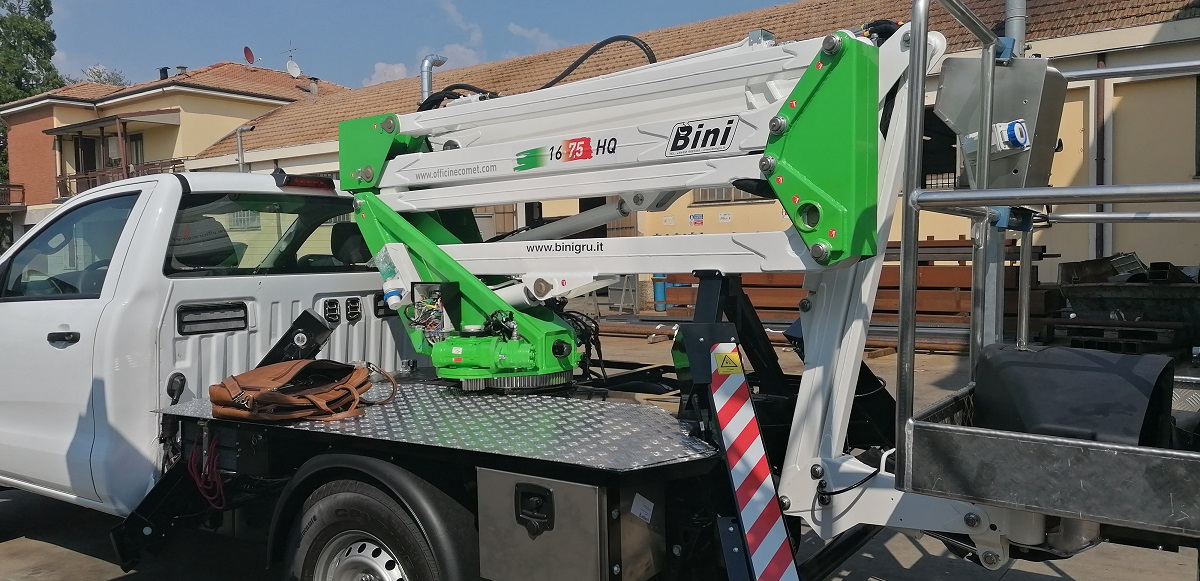

    Working height mt.14 (available in versions from 12 to 16 meters); walking surface height mt.12; capacity Kg.200 including 2 persons; maximum outreach mt.6.00; capacity at maximum outreach kg.200; turret rotation: 360° continuous on slewing ring; total closed machine height mm 2050; 360° swiveling turret on slewing ring; double parallelogram articulated boom; JIB terminal articulated boom; electric cables, catenaries and pipes inside boom; ALUMINUM BASKET: dimensions mm.1400x600x1100; rotation cylinder protection; load cell for load control in basket; CONTROLS: fully hydraulic, proportional for up to three movements at the same time, positioned vertically on basket and protected by cover. Motor on/off button and overload indicator lights, alarm and emergency button, basket central position indicator light – hydraulic system in low-pressure nacelle (25 bar).

    STANDARD ACCESSORIES

    • Starting/stopping vehicle engine from ground and basket controls;
    • 230 V ac CE electrical socket in basket with shunt socket in turret;
    • Basket anti-collision bar on rear bumper;
    • Wall-collision system (to stop all movement if the spacecraft touches walls or other obstacles);
    • Cab anti-collision system (to stop movements that could accidentally cause the arm to collide with the cab).
